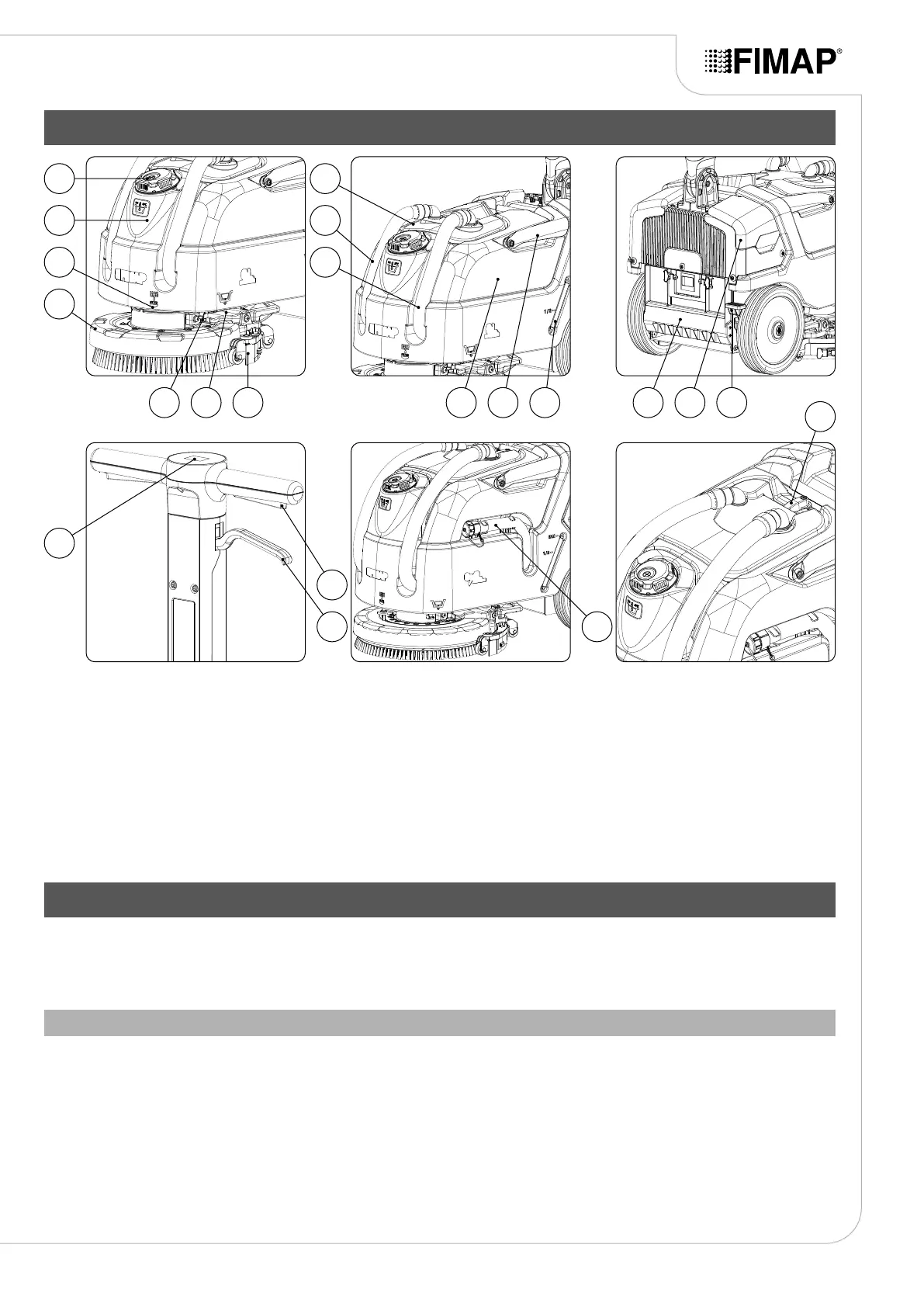

LOCATION OF THE MAIN MACHINE COMPONENTS
The machine's main components are the following:
1. Solution tank cap.
2. Solution tank.
3. Detergent solution lter.
4. Brush head body.
5. Solution tank dumping system.
6. Detergent solution tap.
7. Squeegee body.
8. Recovery tank cover.
9. Squeegee vacuum hose.
10. Suction motor tube.
11. Recovery tank.
12. Recovery tank handle.
13. Solution tank level hose.
14. Battery compartment closure carter.
15. Battery charging compartment closure carter.
16. Squeegee control pedal.
17. Control panel.
18. Dead man's lever.
19. Control column uncoupling lever.
20. Recovery tank drainage tube (GXL versions).
21. Recovery tank cover prop retainer (GXL versions).
The descriptions contained in this document are not binding. The company therefore reserves the right to make any modications at any time to
elements, details, or accessory supply, as considered necessary for reasons of improvement or manufacturing/commercial requirements. The
reproduction, even partial, of the text and drawings contained in this document is prohibited by law. The company reserves the right to make
any technical and/or supply modications. The images are shown as reference only and are not binding as to the actual design and/or
equipment.
GENERAL SAFETY REGULATIONS
Before using the machine, please read the following document carefully and follow the
instructions contained herein, along with the instructions in the document supplied with the
machine itself, "GENERAL SAFETY REGULATIONS" (document code 10083659).
GENERAL DESCRIPTION
5
1 8
17
2 9
18
3 10
19 20
21
4
5 11 146 12 157 13 16
