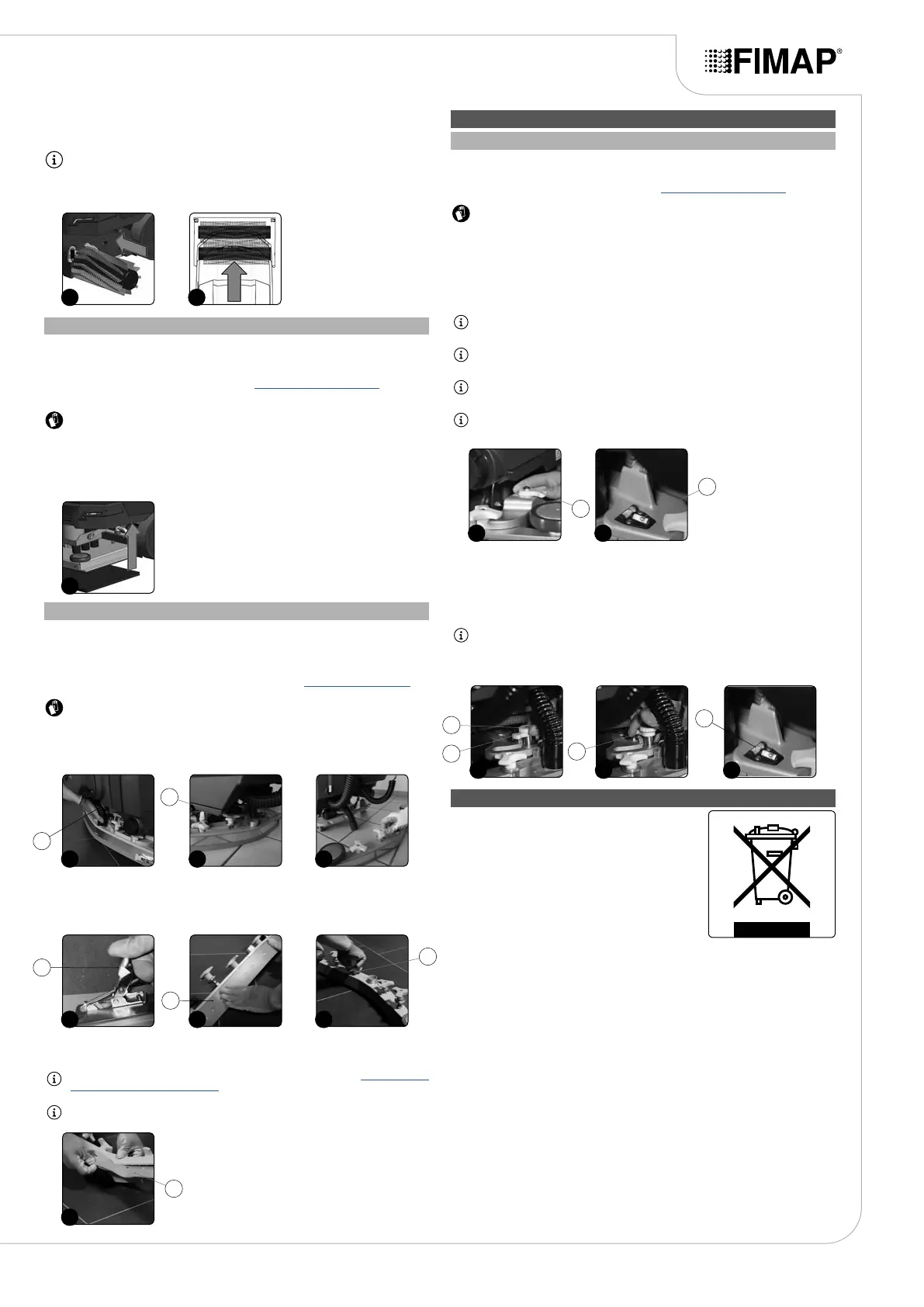

Fimap MAXIMA 2017 PLUS - ADJUSTMENTS AND DISPOSAL; SQUEEGEE BODY ADJUSTMENT AND REPLACEMENT; REPLACING ABRASIVE PADS

REPLACING THE ABRASIVE PAD (50BTO VERSIONS)
Ensuring the good condition of the abrasive pad will guarantee better oor cleaning results. To replace
the abrasive pad, proceed as follows:
1. Take the machine to the maintenance area.
2. Make sure the machine is in a safe condition (see “MACHINE SAFETY MEASURES”). Go to the
front of the machine.
ATTENTION: these operations must be carried out using protective gloves to avoid any
possible contact with the edges or tips of metal objects.
3. With the brush head raised above the oor, extract the worn abrasive pad.
4. Replace the worn abrasive pad with the new one. With the brush head in the raised position,
slide the abrasive pad into the housing under the brush head, pressing it until it is rmly attached
to it (Fig. 1).
7. Replace the worn brush with the new one. Insert the brush into the tunnel (Fig. 4), taking care to
make sure that the gearmotor's drive shaft enters the slit in the brush itself.
8. Repeat the previously described operations for the right-hand side as well.
N.B.: In order to be installed correctly, the brushes must form an X when viewed from above in
the forward direction of movement (Fig. 5).
9. Repeat the operations in reverse order to reassemble all the parts.
REPLACING THE SQUEEGEE BODY RUBBER BLADES
Ensuring the good condition of the squeegee body rubber blades guarantees better oor cleaning and
drying results, as well as a longer service life for the vacuum motor. To replace the squeegee body
rubber blades, proceed as follows:
1. Take the machine to the maintenance area.
2. Make sure the machine has been secured (see the section titled “SECURING THE MACHINE”).
CAUTION: these operations must be carried out using protective gloves to avoid any possible
contact with the edges or tips of metal objects.
3. Remove the vacuum tube (1) from the vacuum nozzle on the squeegee body (Fig. 1).
4. Completely unscrew the knobs (2) in the squeegee body pre-assembly (Fig. 2).
5. Remove the squeegee body from the slits in the squeegee connector (Fig. 3).
6. Remove the rear rubber-pressing blade by releasing the retainer (3) on the back of the squeegee
(Fig. 4).
7. Remove the rear rubber blade (4) from the squeegee body (Fig. 5).
8. Completely unscrew the knobs (5) in the squeegee body pre-assembly (Fig. 6).
9. Remove the front rubber blade (7) from the inside of the squeegee (Fig. 7).
10. Repeat the operations in reverse order to reassemble all the parts.
NB: before using the machine, remember to adjust the squeegee body (see “ADJUSTING THE
SQUEEGEE BODY RUBBER BLADES”).
NB: you are advised to replace both squeegee body blades in order to ensure good results when
drying the oor.
ADJUSTMENT INTERVENTIONS
ADJUSTING THE SQUEEGEE BODY RUBBER BLADES
Careful adjustment of the squeegee body rubber blades guarantees better cleaning of the oor.
To adjust the squeegee body blades, proceed as follows:
1. Make sure the machine is in a safe condition (see “MACHINE SAFETY MEASURES”).
ATTENTION: these operations must be carried out using protective gloves to avoid any
possible contact with the edges or tips of metal objects.
2. Stand at the back of the machine.
Adjusting the height of the squeegee body:
3. Adjust the height of the rubber blade in relation to the oor by loosening or tightening the knobs
(1) (Fig. 1).
NB: Figure 1 indicates the rotation direction for decreasing the distance between the squeegee
support and the oor. This distance can be increased by turning it in the opposite direction.
NB: by decreasing the distance between the squeegee support and the oor, the rubber blades
present in the squeegee body move closer to the oor.
NB: the right-hand and left-hand knobs must be rotated the same number of times, so that the
squeegee is parallel to the oor when it is working.
NB: make sure the adjustment is correct by looking at the instrument (2) on the squeegee body
(Fig. 2).
Adjusting the tilt of the squeegee body:
4. Loosen the retainer knob (3) of the squeegee tilt adjustment knob (4) (Fig. 3).
5. To adjust the tilt of the squeegee body rubber blades in relation to the oor, tighten or loosen
the knob (5) (Fig. 4) until the blades are bent outwards by about 30° in relation to the oor, in an
even manner along their entire length.
NB: make sure the adjustment is correct by looking at the instrument (6) on the squeegee body
(Fig. 5).
6. Once the adjustment has been completed, tighten the retainer knob (3).
DISPOSAL
To dispose of the machine, take it to a demolition centre or an
authorised collection centre. Before scrapping the machine,
it is necessary to remove and separate out the following
materials, then send them to the appropriate collection centres
in accordance with the environmental hygiene regulations
currently in force:
• Brushes
• Felt
• Electric and electronic parts*
• Batteries
• Plastic parts (tanks and handlebars)
• Metal parts (levers and frame)
(*) In particular, contact your distributor when scrapping electric
and electronic parts.
