WLAN
In the WLAN sub-menu it’s possible to view the status of the two wire-
less channels of the inverter, and to disconnect the channel 2.
• Channel 1: “Access Point mode”: Only local communication is
enabled in this mode; In particular, the WLAN acts like an «access
point» generating a wireless network to which the user can connect
locally, congure the inverter / photovoltaic system, using the direct
access to the embedded Web User Interface

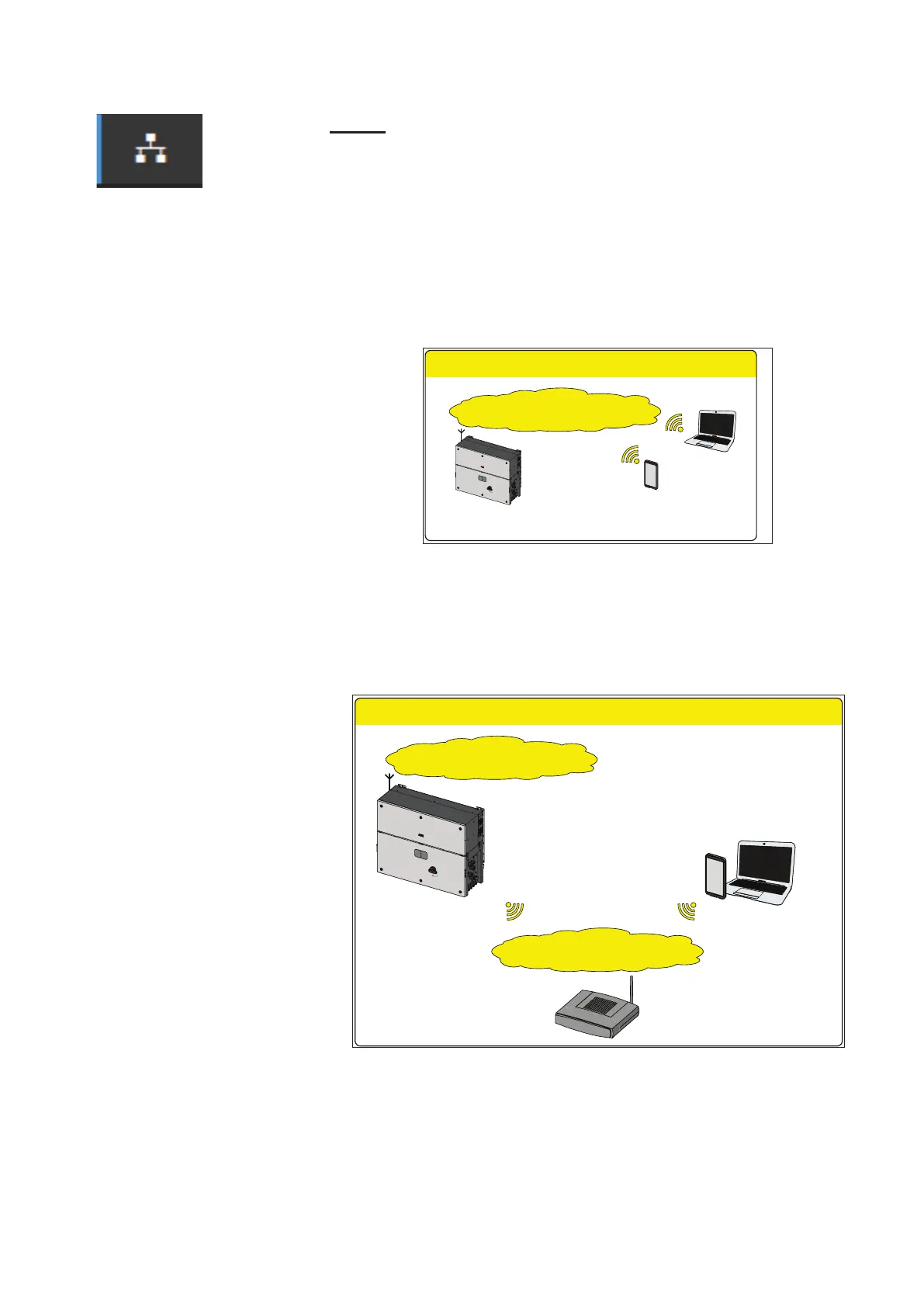

Wireless connection - “ACCESS POINT MODE” COMMUNICATION
Internal Webserver
User Interface
(IP 192.168.117.1)
Direct Access
SSID: ABB-XX-XX-XX-XX-XX-XX
(XX-XX-XX-XX-XX-XX= Inverter MAC address)
IP given by inverter
DHCP server
IP given by inverter
DHCP server
PVS-120.0
• Channel 2 “Station Mode”: In this operating mode is possible
to connect the inverter to a WI-Fi router; in this condition remote
monitoring is enabled accessing to Aurora Vision
®
CLOUD platform.
Wireless connection
Aurora Vision Plant Viewer™
Aurora Vision Plant Viewer for Mobile™
Aurora Vision Plant Portfolio Manager™
Customer SSID
IP given by router
DHCP server
IP given by router
DHCP server
Direct Access
SSID: ABB-XX-XX-XX-XX-XX-XX
(XX-XX-XX-XX-XX-XX= Inverter MAC address)
PVS-120.0
