Fimer PVS-50-TL - Serial Communication Connection - Slave;Master (RS485-MAIN)

86
000872BG-F
5 - Installation
J5
3 1
50
60
-T/R
+T/R
RTN
Serial Communication connection - Slave/Master (RS485-MAIN)
The RS485-MAIN terminal block
60
is located on the Interposer board
50
.
This port can be setted as:
- Slave (default setting). In this conguration the port allows to connect
one device using Modbus RTU (FIMER protocol) or Modbus RTU (Sun-
spec protocol) communication protocol.
Is possible to connect only one device to the RS485-MAIN
- Master. In this conguration the port is used for connec-
ting supported accessories (like energy meter, VSN800 wea-
ther station, etc); in this case data from accessories will be log-
ged and transferred to the cloud by inverter itself (master mode).
To know how to connect the accessories to the RS485 terminal block
refer to accessory product manual or contact FIMER customer support.
When an accessory is connected to the RS485-MAIN port it must be
added and congured into the “Device Acquisition” list on the integrated
Web User Interface (refer to chapter “Web User Interface”).

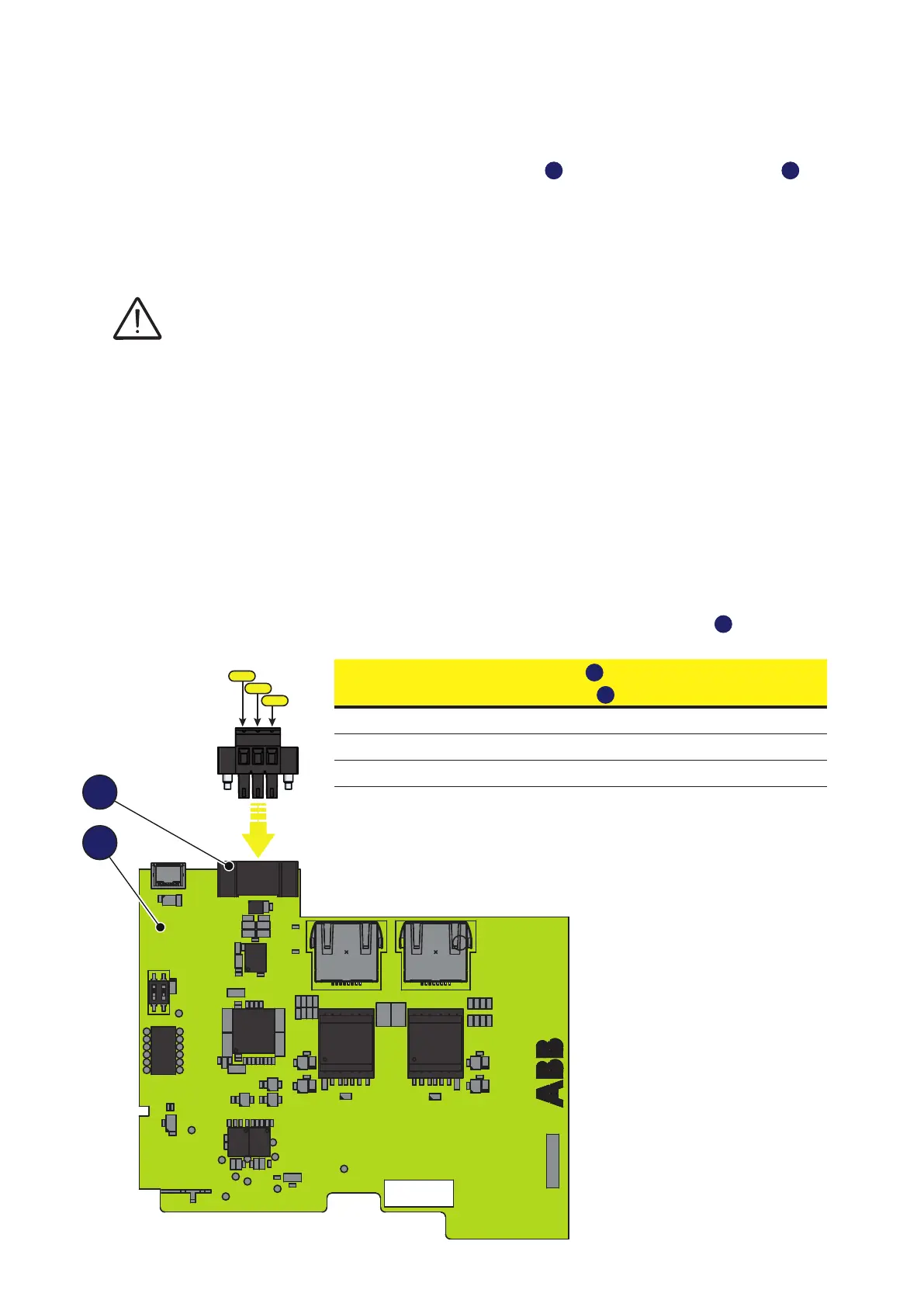

In both the congurations the connection to the RS485-MAIN is made on
the dedicated connector located on the Interposer board
50
.
RS485-MAIN terminal block (J5)
60
Connector pin on interposer board
50
RS485 signal
1 RTN
2 +T/R
3 -T/R
