33
000860BG-F
2 - Characteristics

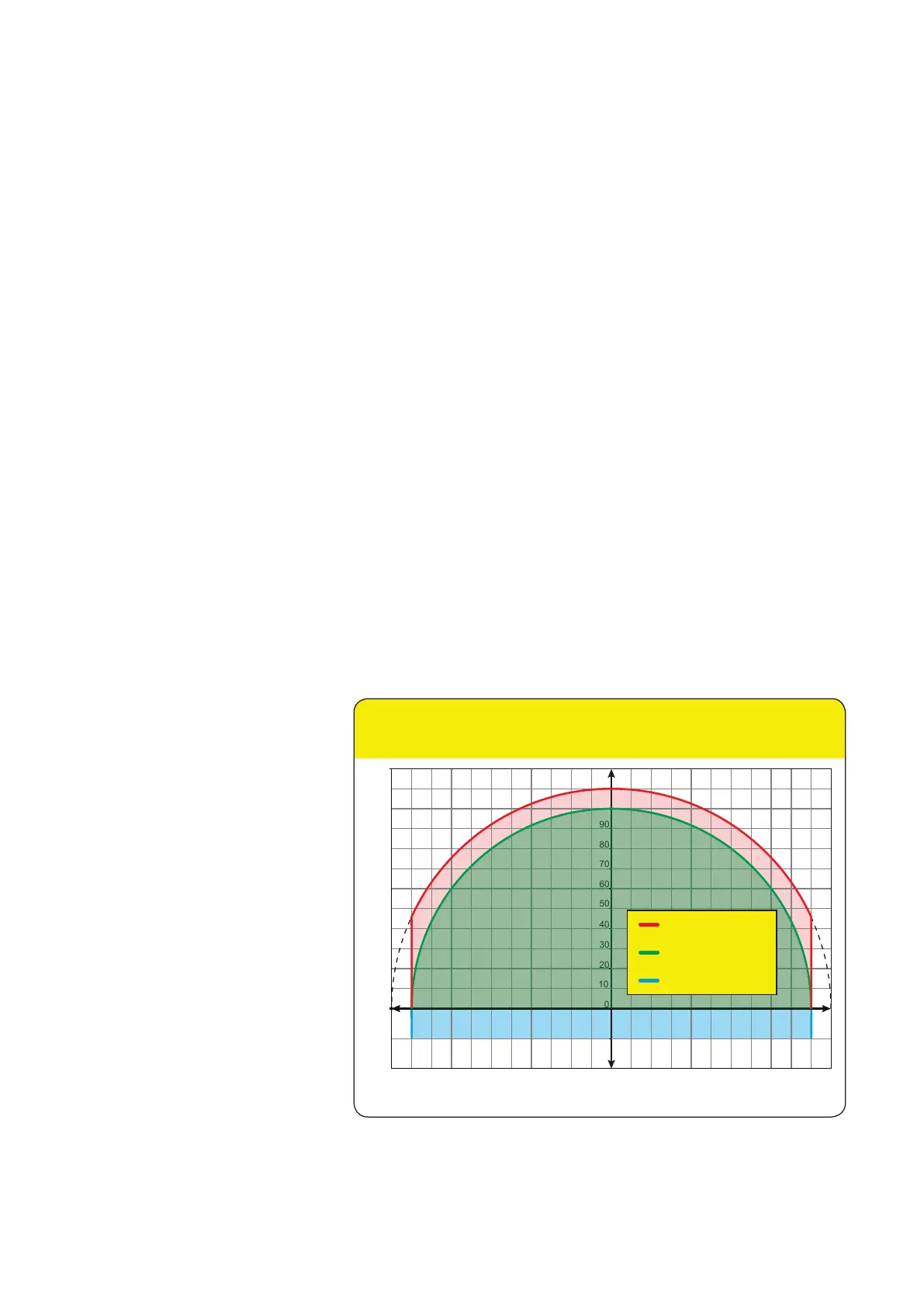

P- Q curve capability
Based on the country grid standard the P-Q capability curve can be reduced.
Conditions:
PVS-50-TL
- Rated output voltage (Un) 400Vac
- Rated active power (Pn) 50kW (55kW up to 30°C amb. temperature)
- Nominal apparent power (Sn) 50kVA (55kVA up to 30°C amb. temperature)
- Rated reactive power (Qn) 50kVAR
- Cos -0 ... 1 ... 0 +
- 100% Pn Capability with grid voltage between 0.937xUn ... 1.2xUn
- 110% Pn Capability with grid voltage between 1.0xUn ... 1.1xUn up to
30°C amb. temperature
PVS-60-TL
- Rated output voltage (Un) 480Vac
- Rated active power (Pn) 60kW (60kW up to 30°C amb. temperature)
- Nominal apparent power (Sn) 60kVA (60kVA up to 30°C amb. temperature)
- Rated reactive power (Qn) 60kVAR
- Cos -0 ... 1 ... 0 +
- 100% Pn Capability with grid voltage between 0.937xUn ... 1.2xUn
- 110% Pn Capability with grid voltage between 1.0xUn ... 1.1xUn up to
30°C amb. temperature
Pout (W)
-1800
-900
Q / Pnom (%)
Pout / Pnom (%)
0
10
20
30
40
50
60
70
90
100
110
80
-100
-90
-80
-70
-60
-50
-40
-30
-20
-10
0
+10
+20
+30
+40
+50
+60
+70
+80
+90
+100
Extra power
(valid up to 30°C ambient)
Nominal P-Q capability
Night-time capability
Capability P-Q
PVS-50-TL
PVS-60-TL
