5 - Installation

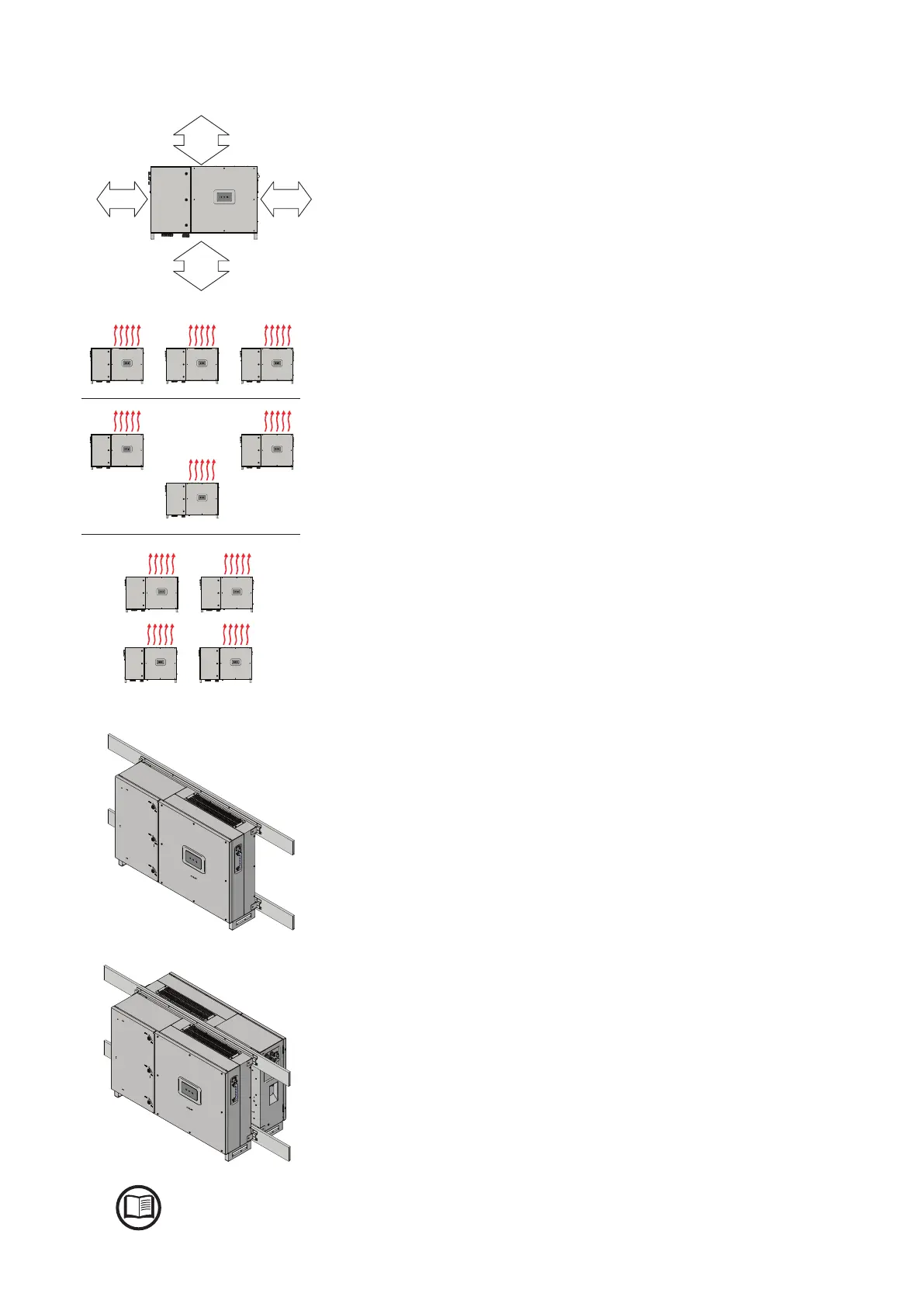

• Respect the minimum distances from objects around the inverter that
could prevent the inverter installation and restrict or block the air ow.
• Provide sufcient working space in front of the inverter that allows to
make connections on the wiring box.
• In case of multiple installation position the inverters side by side keeping
the minimum distances (measured from the outer edge of the inverter)
for each inverter.
• If the space available does not allow this arrangement, position the in-
verters in a staggered arrangement as shown in the gure so that heat
dissipation is not affected by other inverters below.
• The vertical installation is also permitted on a structure which must be
composed of a support for the attachment of the bracket and one for the
support of the rear pins.
• The vertical installation of two inverters positioned back to back is also
permitted on a structure which must be composed of a support for the
attachment of the brackets and one for the support of the rear pins.
Please refer to the warranty terms and conditions to evaluate any possible warranty exclu-
sions due to improper installation.
