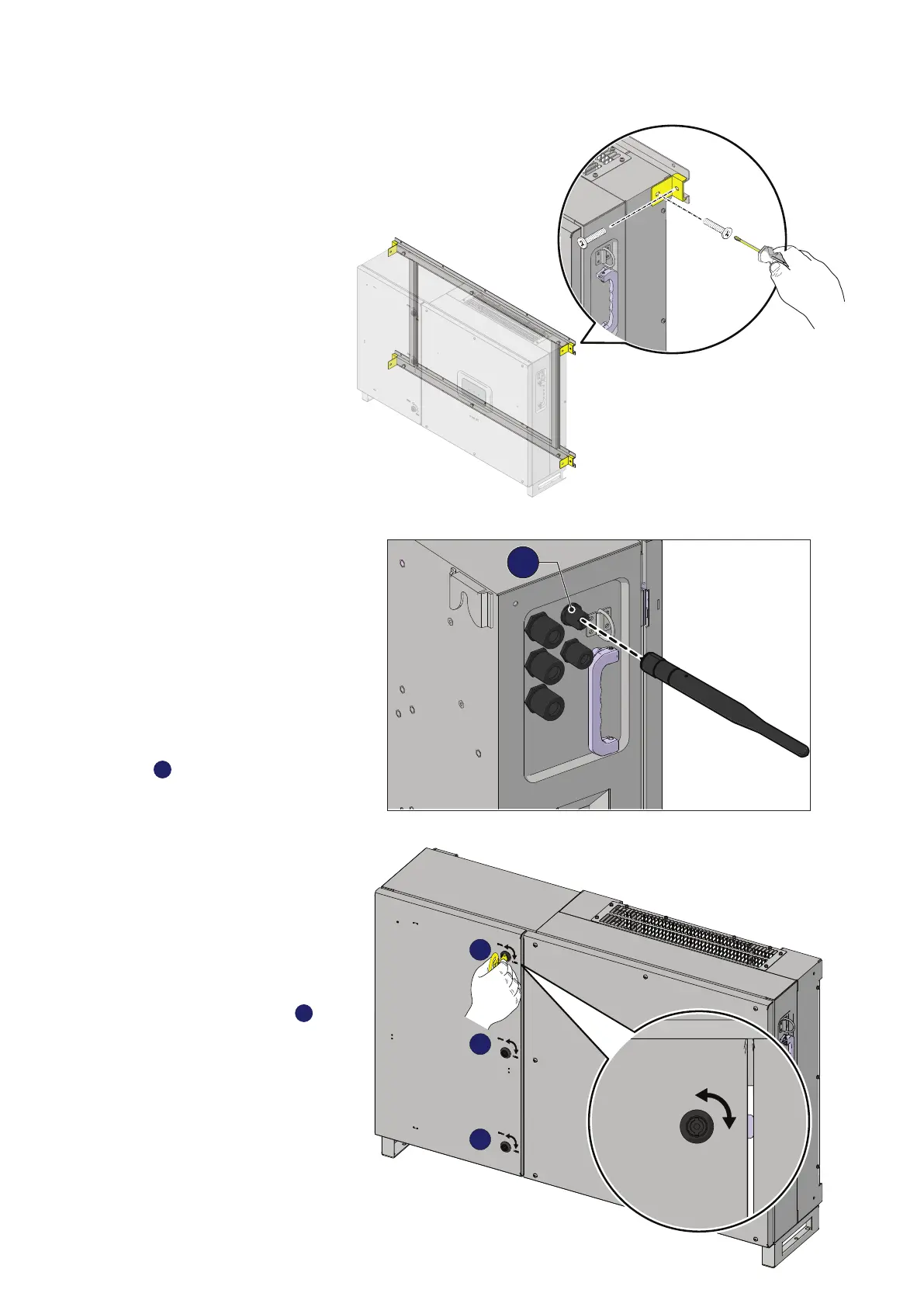

5 - Installation
• Install the 4 xing braket on the
4 corner of the inverter (using 8
screws)
• Remove the protective co-
ver from the connector of the
wireless antenna located on
the left side of the inverter.
Install the wireless antenna by
screwing it into the specic con-
nector
10
.
• Open the wiring box front co
-
ver turning the 3 key-lock
08
in
“OPEN” position and proceed
with the wiring and connections
depending on the model.
