Fimer SYMPLEX 320 - Device Description; Symplex (Models 320-420) Front View

10
2

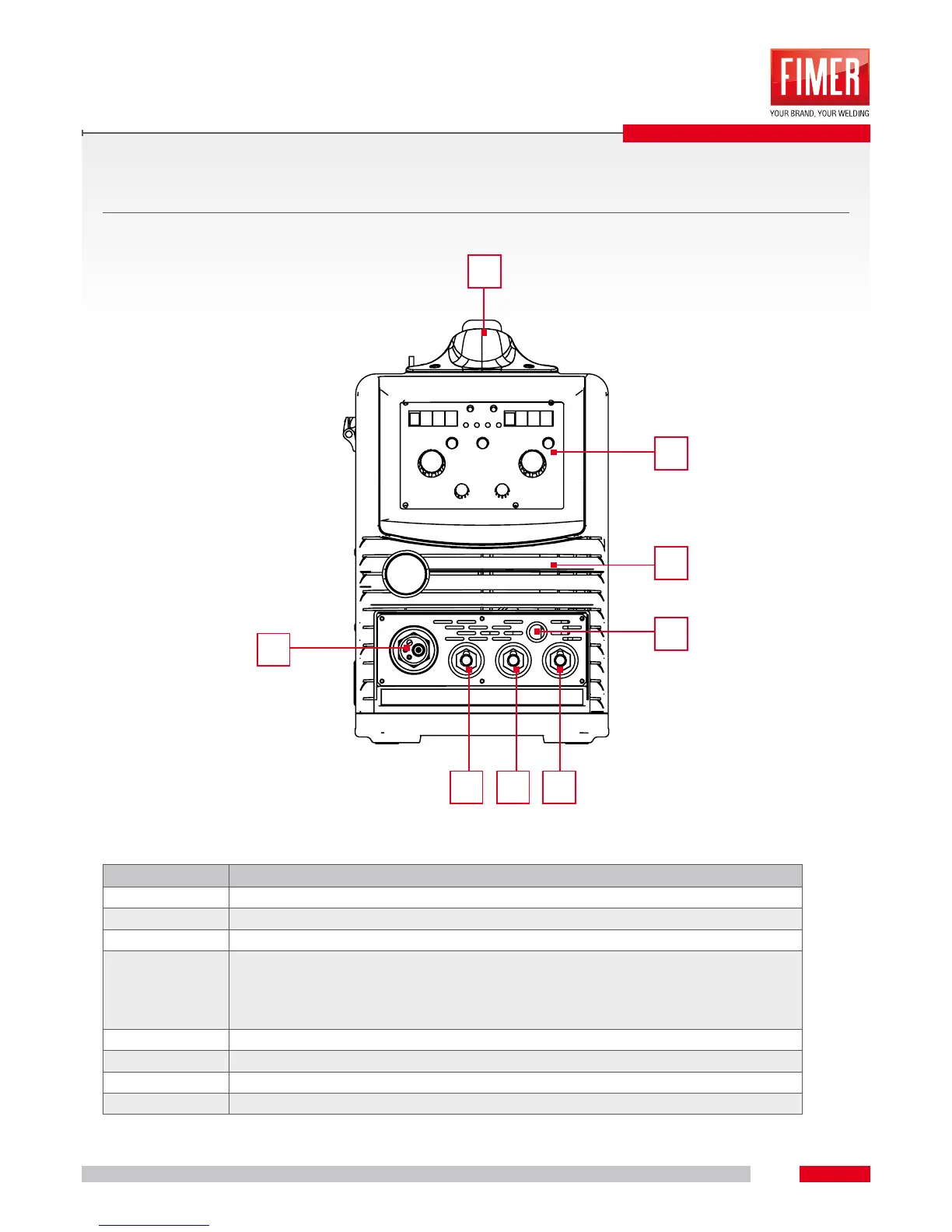

2.1 SYMPLEX (models 320-420) FRONT VIEW
REFERENCE DESCRIPTION
1 TRANSPORT HANDLE
2 CONTROL PANEL/INTERFACE
3 MIG/MAG CENTRAL CONNECTION FOR TORCH (EURO)
4 WELDING CURRENT CABLE FOR EURO CONNECTION POLARITY:
• MIG/MAG = PLUG IN “ + “
• SELF SHIELDED WIRE = PLUG IN “ - “
• MMA = PLUG IN “ 0 “
5 WELDING SOCKET CURRENT“ - “
6 WELDING SOCKET CURRENT “ +“
7 NO CURRENT SOCKET “ 0 “ , PLUG IN ONLY FOR MMA WELDING
8 COOLING AIR OUTLET
DEVICE DESCRIPTION
4
567
3
2
1
8
