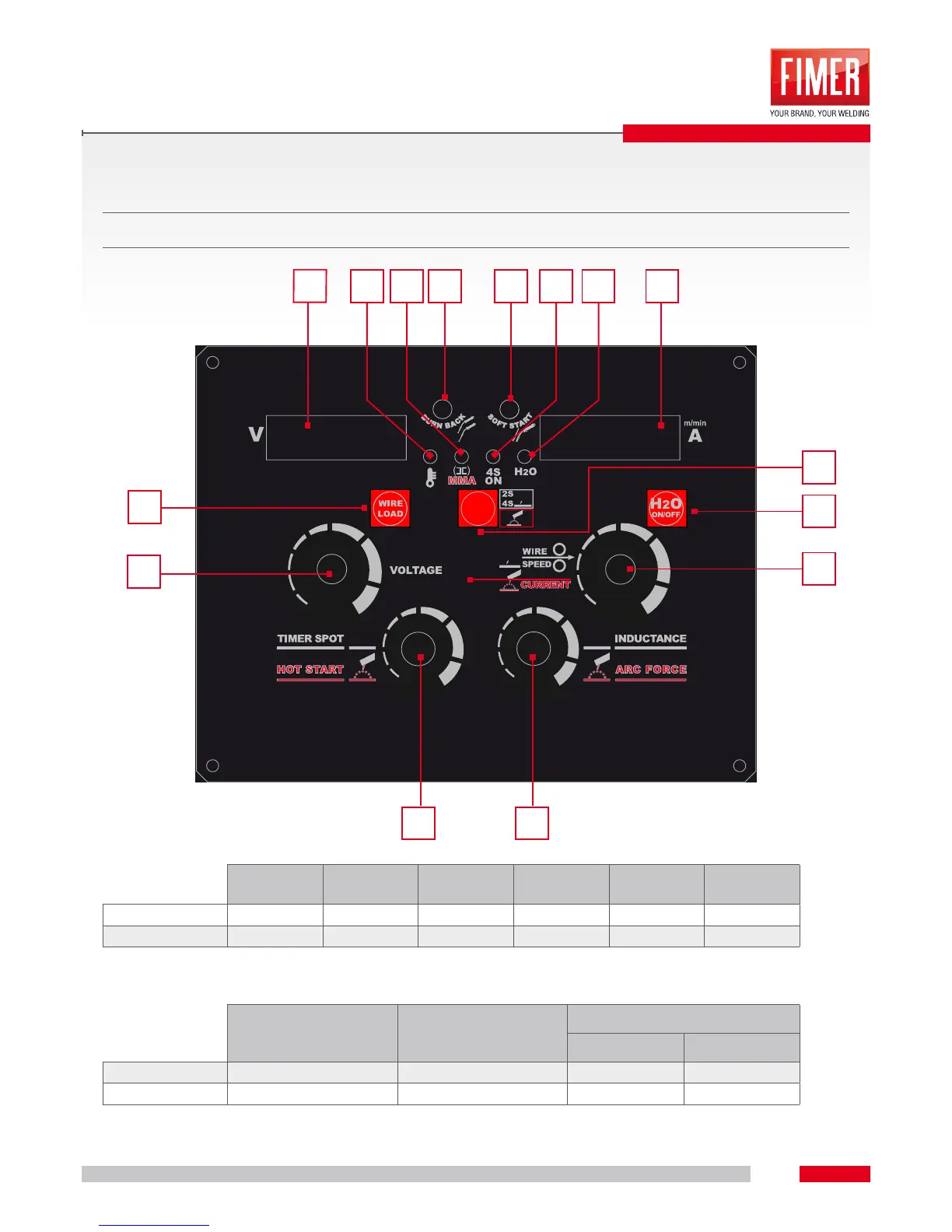

3.1 CONTROL PANEL DIAGRAM
Following all the information about control panel model Symplex 320 – Simplex 420
Wire speed
(m/min)
Welding
voltage (V)
Soft Start
(m/min)
Burn Back
Time (ms)
Tacking
time (s)
Inductance
min 1,5 10 1 30 0 -40
max 22 35 5 120 20 40
Chart 1: parameters Simplex320 – Simplex420 in MIG
Simplex320
welding current (A)
Simplex420
welding current (A)
Simplex 320 - 420
Hot Start (%) Arc Force (%)
min 15 15 100 100
max 300 370 200 200
Chart 2: parameters Simplex320 – Simplex420 in MMA
INTERFACE PANEL
3
6
1
7
5
4
98
101312 14 15 211
PU3 PU1 PU2
EN1
DL3DL2
T2 T1
DL1DL17
EN2
POT4 POT3
