Fincor 2602 - Logic Connection Diagram, Run-Stop Pushbuttons; Logic Connection Diagram, Optional Armature

BOOK0795-F
10

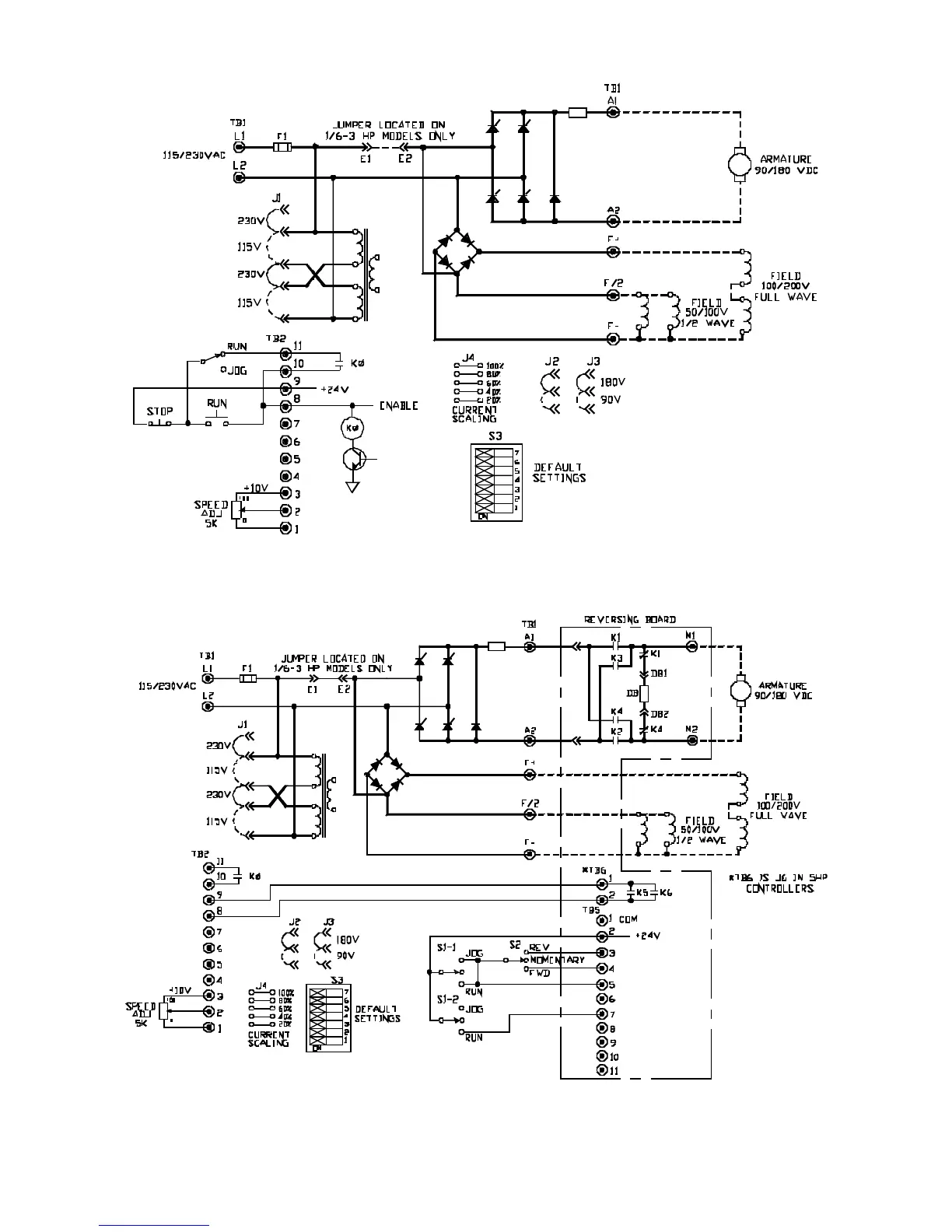

FIGURE 6. LOGIC CONNECTION DIAGRAM, RUN-STOP PUSHBUTTONS AND RUN-JOG SWITCH,
1/6 - 5 HP
FIGURE 7. LOGIC CONNECTION DIAGRAM, OPTIONAL ARMATURE CONTACTOR REVERSING
USING SWITCHES, 1/6 - 5 HP
