Fincor 2602 - Logic Connection Diagram, Line Starting with

BOOK0795-F
11

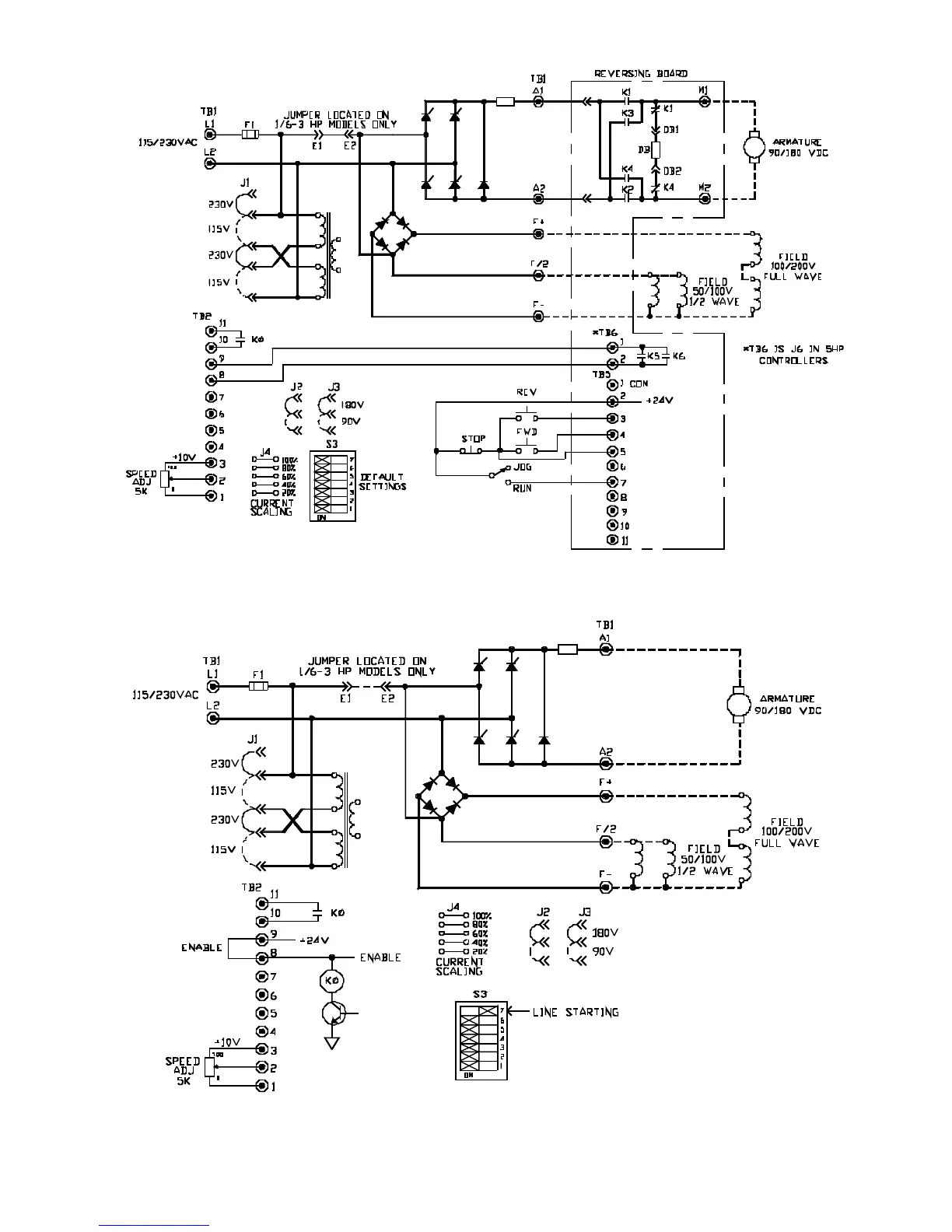

FIGURE 8. LOGIC CONNECTION DIAGRAM, OPTIONAL ARMATURE CONTACTOR REVERSING
USING PUSHBUTTONS AND RUN-JOG SWITCH, 1/6 - 5 HP
FIGURE 9. LOGIC CONNECTION DIAGRAM, LINE STARTING WITH MOTOR SPEED POTENTIOME-
TER, 1/6 - 5 HP
