First Alert 8800

Getting to Know Your 8800 DVR
Model 8800 User's Manual

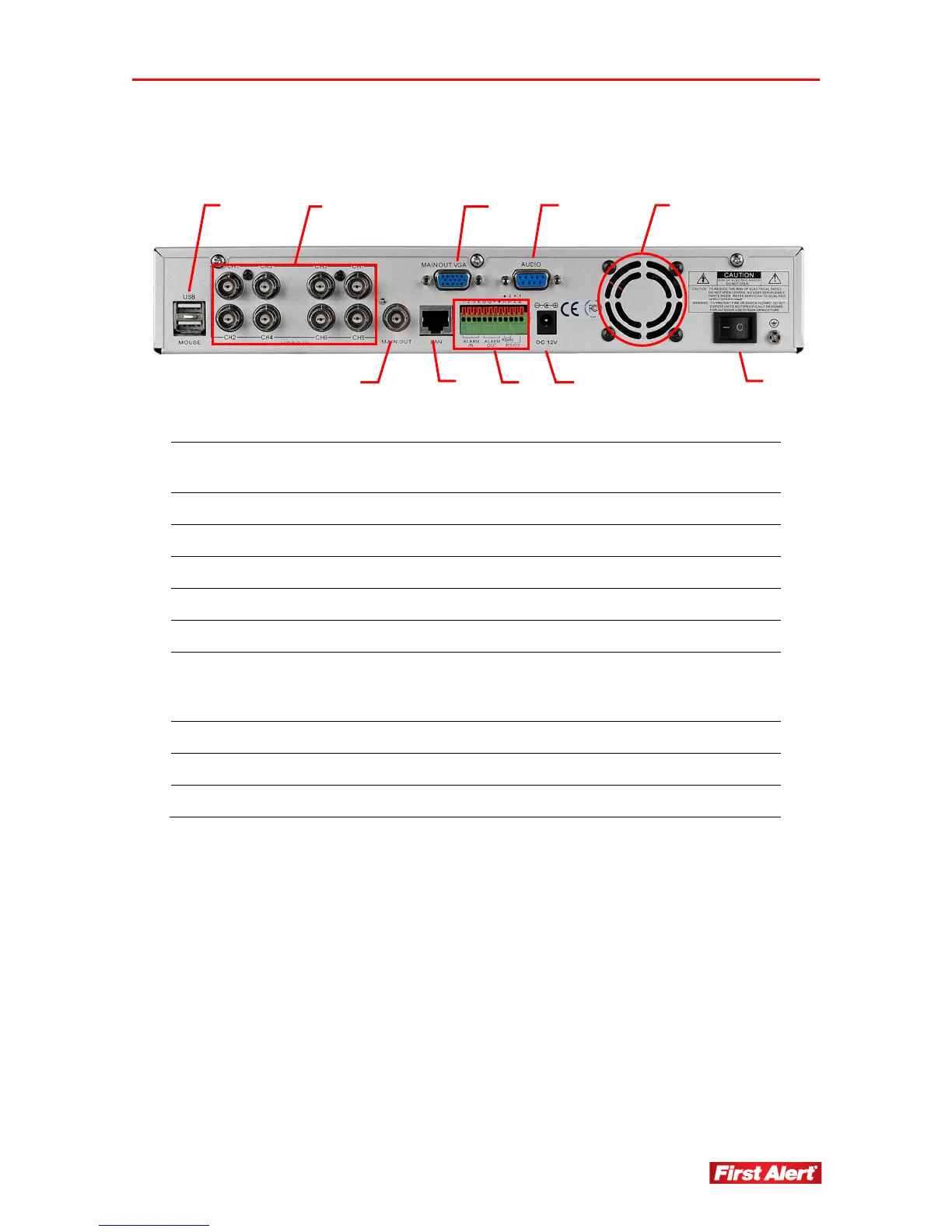

DVR REAR PANEL
1 USB Ports
USB ports for backup devices (flash drive, DVD recorder)
and mouse
3 Video Input 8-channel video input, BNC (1Vp-p, 75 )
3 Video Output Output to display monitor, BNC (1Vp-p, 75 )
4 Video Output Output to display monitor, VGA
5 Ethernet RJ-45 10/100 Base-T Ethernet port
6 Audio output 1-channel audio output (2Vp-p, 600 )
7
ALARM IN
ALARM OUT
RS-422/RS-485
Alarm input (1-4, 5-6, Ground) – external sensor devices
Alarm output (7-8) – external alarm devices
PTZ camera control (9-12)
8 DC 12V Power input
9 Fan Cooling fan air intake
10 Power Power switch
1
2
3
4
6
7 8
9
5 10
