Getting Started
Model 8800 User's Manual
STATUS BAR

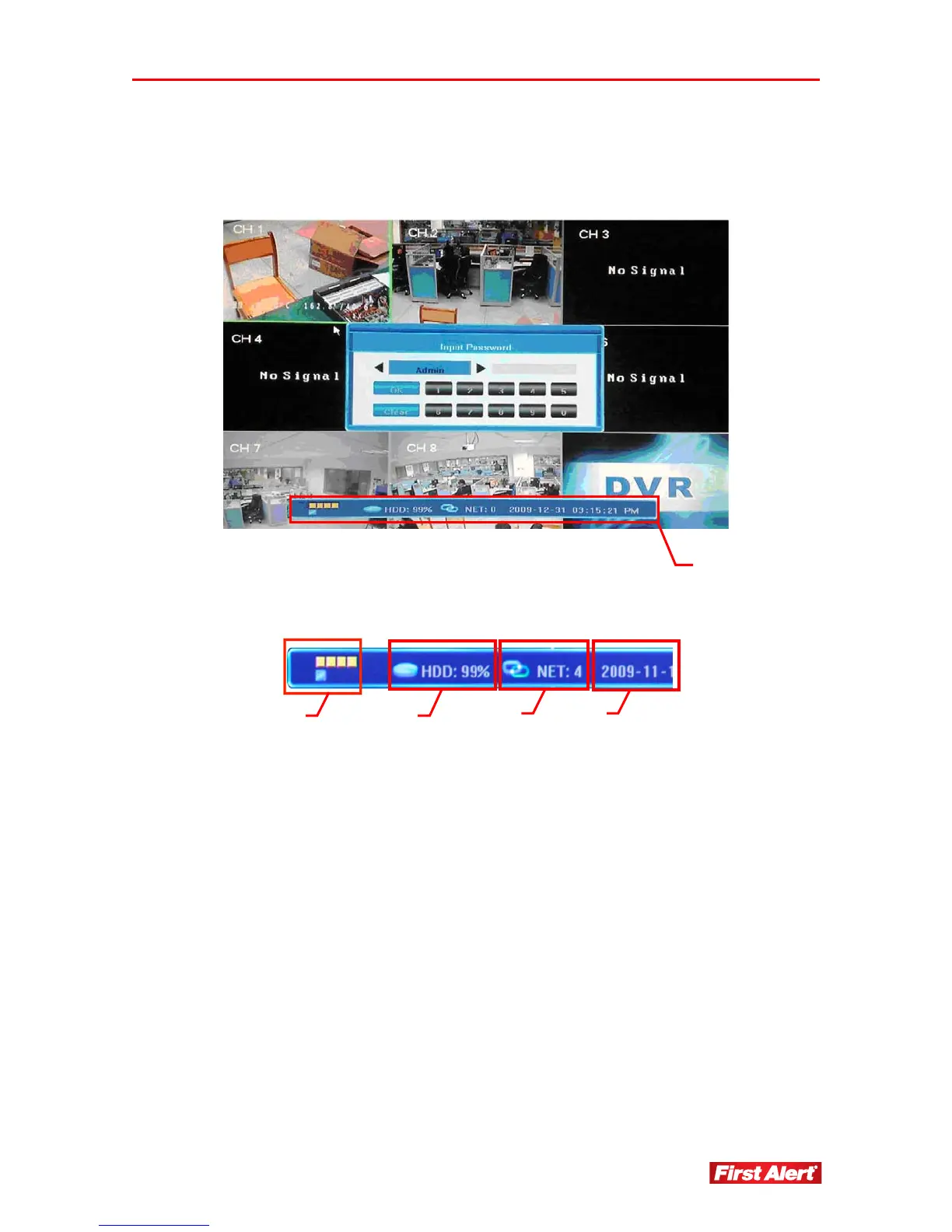

Click anywhere on the screen to display Status Bar at the bottom of the window.
On the far left of the bar, are five colored squares, indicating the alarm status:
1 Alarm input status for each of the four windows and indicates alarm output.
When alarm output is activated, color changes to red.
2 HDD usage (percentage).
3 Number of remote users accessing the system via the network/Internet (NET:X).
4 Current date/time in YYYY-MM-DD HH-MM-SS format.
Status Bar
1 2
3 4
