Web Browser Operation
Model 8800 User's Manual
76
STATE

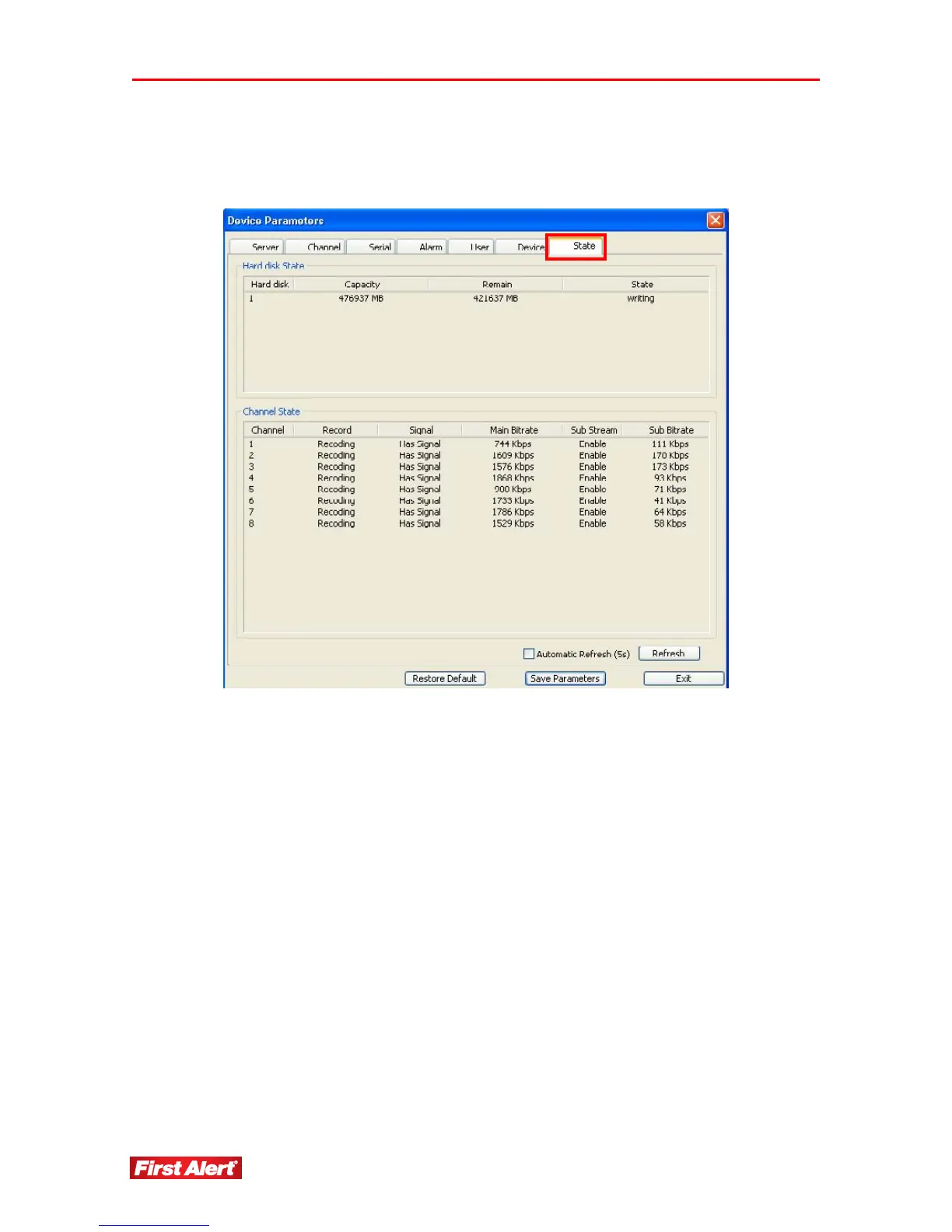

Click the State tab to view system information. All items are for reference only.
Hard Disk State: Information on the number of available HDDs, their capacity,
available space, and state (idle, writing, etc.).
Channel State: Information for each active channel (recording state, signal, main
bit rate value, sub stream state for the channel, and sub bit rate value).
Automatic Refresh: Check box to keep current with changing values; data is
refreshed every five seconds. Alternatively, click REFRESH to renew data and
view the latest information.
Click RESTORE DEFAULT to reset values to parameters before changes were made.
Click SAVE PARAMETERS to save change. Click EXIT to close the window without
saving changes.
