First Alert 8800

Setting Up
Model 8800 User's Manual

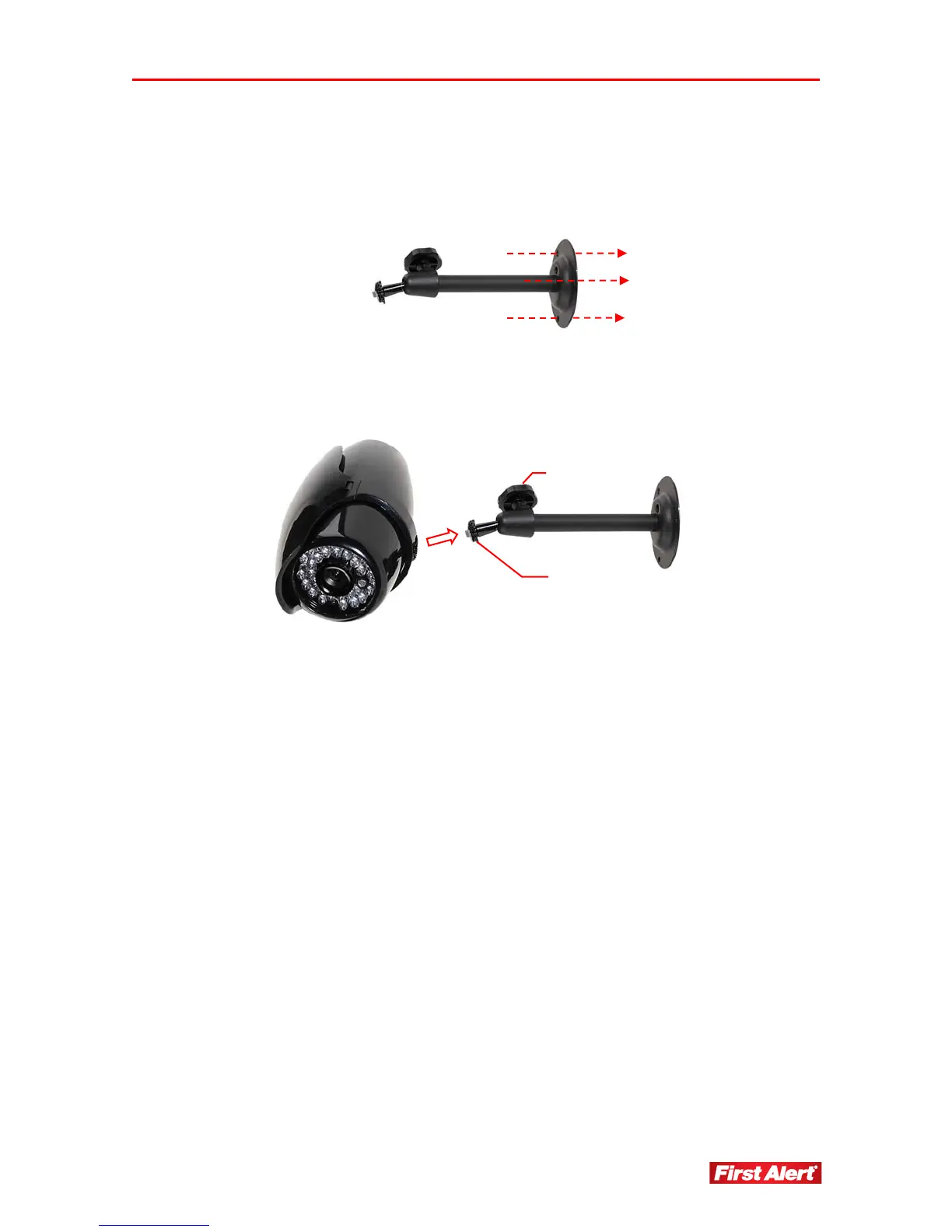

MOUNTING A CAMERA
1 Select the position for the camera and secure the camera stand. (Use an appropriate
screw type for the mounting surface.)
2 Screw the camera onto the stand. Tighten the lock nut.
3 Adjust camera to the proper view angle. Make sure the lens is upright relative to the
subject. Tighten the thumb bolt.
INSTALLING AND CONNECTING THE CAMERAS AND DVR
1 Connect the camera video connector into the BNC cable (supplied).
2 Connect the BNC connector on the other end of the cable to the video input on
the DVR.
3 Plug the camera power connector into the BNC cable.
4 Plug the other end of the camera power cable into one of the camera splitter
connectors.
5 Plug the camera power connector from the 12V DC power supply adapter into the
splitter.
6 Plug the DVR power connector from the 12V DC power supply adapter into the power
input on the rear panel of the DVR.
7 Plug the power supply cord from the two adapters into an electrical outlet.
thumb screw
lock nut
