Press the Long Lead button repeatedly to select the length of the extension lead
that is being tested. The LCD display will show the chosen test limit. This will
reset to the default when the MemoryPAT-Blu powers down. The available
options are:
1 Mtr 0.1 ohms - Default
5 Mtr 0.2 ohms
10 Mtr 0.3 ohms
15 Mtr 0.4 ohms
20 Mtr 0.5 ohms
25 Mtr 0.6 ohms
30 Mtr 0.7 ohms
35 Mtr 0.8 ohms
40 Mtr 0.9 ohms
45 Mtr 1.0 ohms
50 Mtr 1.1 ohms
The Earth Continuity result has to be less than the value shown to pass the test.

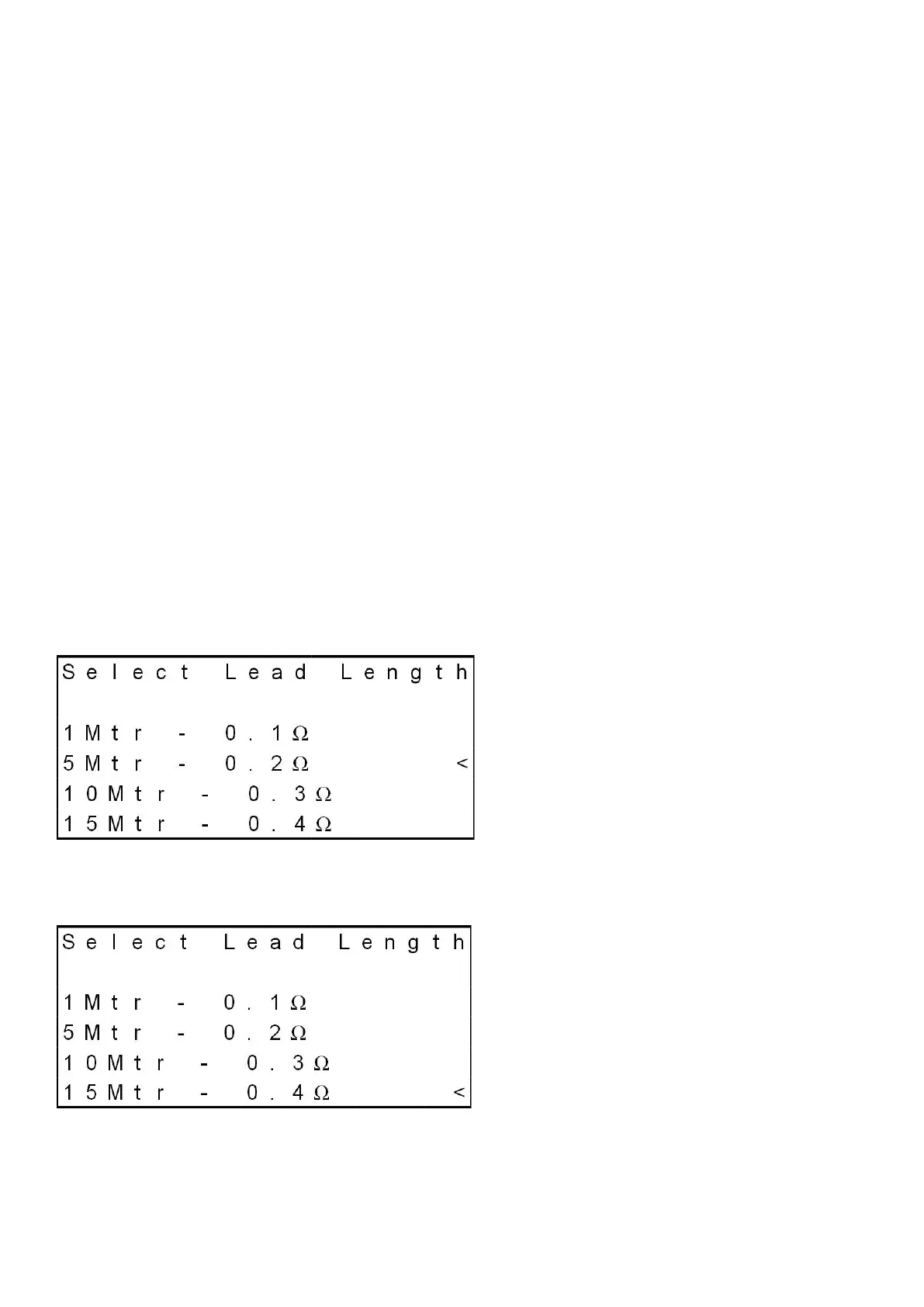

A single press of the button will select a 5m lead as shown below.
Another two presses will select a 15m lead as shown below.
Once the user has selected the appropriate lead length then the test is carried
out as normal by pressing the Power Cord button. The display will show the test
results and also indicate the chosen lead length of 15 meters as shown below.
