6. Install the vent stack (Figure 5-2) through the opening and secure it to
the top of the freezer, using screws.
7. On the cabinet interior, seal around the end of the vent stack with
Permagum.
8. Install the transfer hose connecting one end to the injection assembly,
the other end to the solenoid valve. Install the solenoid valve to the
supply source. The solenoid mounting bracket is not required and may
be discarded.
Caution When selecting a CO
2 supply cylinder, it must be equipped with a
siphon tube.
s
Install Inj. Assembly, Vent
Stack and Solenoid (cont.)

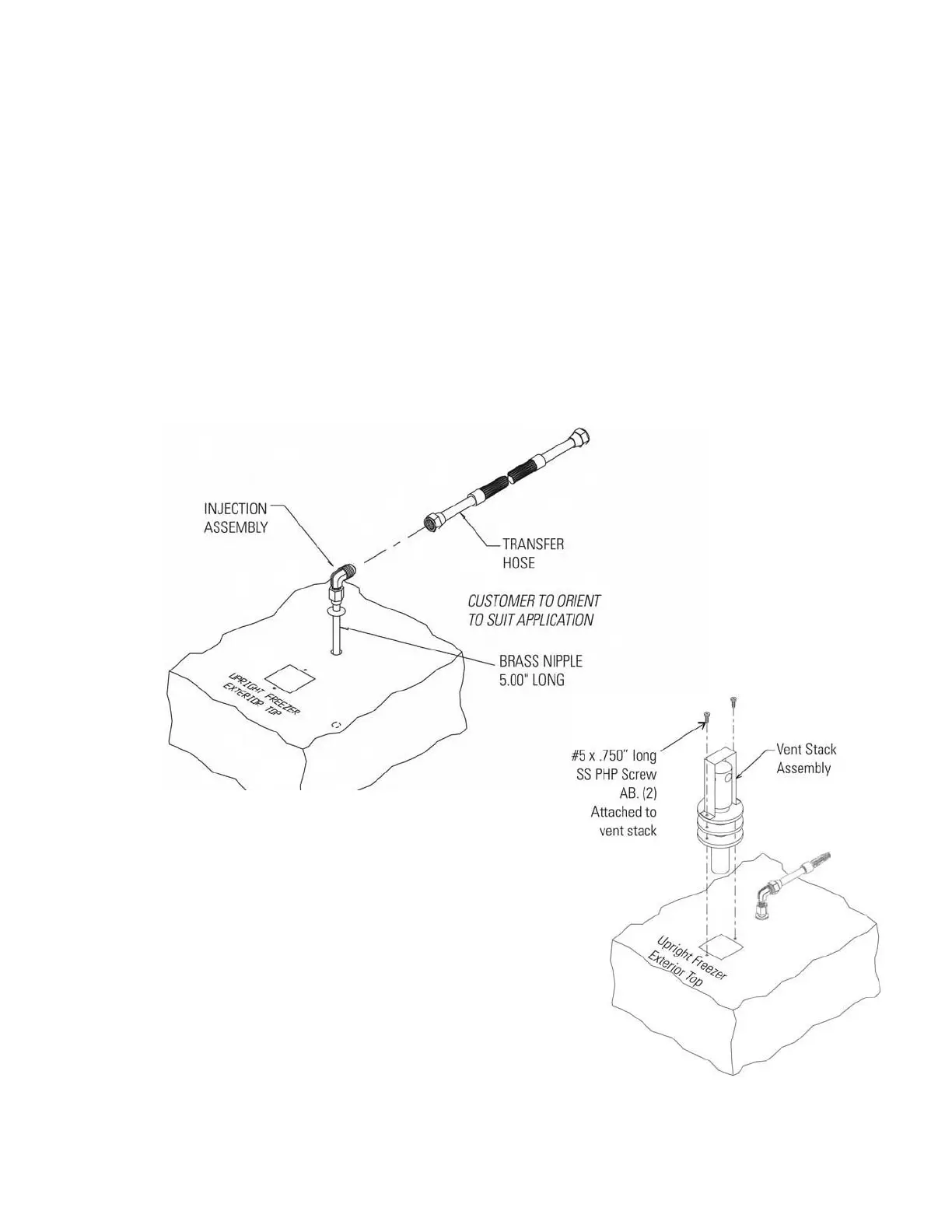

Figure 5-1. Injection Assembly
Figure 5-2. Vent Stack
