1-2 Isotemp Basic Fisher Scientific
Section 1
Installation and Start-Up
Figures 1-3 and 1-4
• Vacuum relief port - pressure equal-
ization port.
• Probe cover - houses control, optional
recorder, datalogger or other accessory
probes.
Figure 1-5
• Battery mounting bracket(s)
• Battery power switch (freezer and
BUS)
• Freezer battery
• Optional BUS battery
• Freezer filter location
Shelf
Bracket
Sealant
(Caution: This is a critical seal.
Seal must be maintained.)
Optional - Recorder Probe/Datalogger Probe
Control RTD/Redundant Type T
Thermocouple Probe
Optional Miscellaneous Accessories Probe

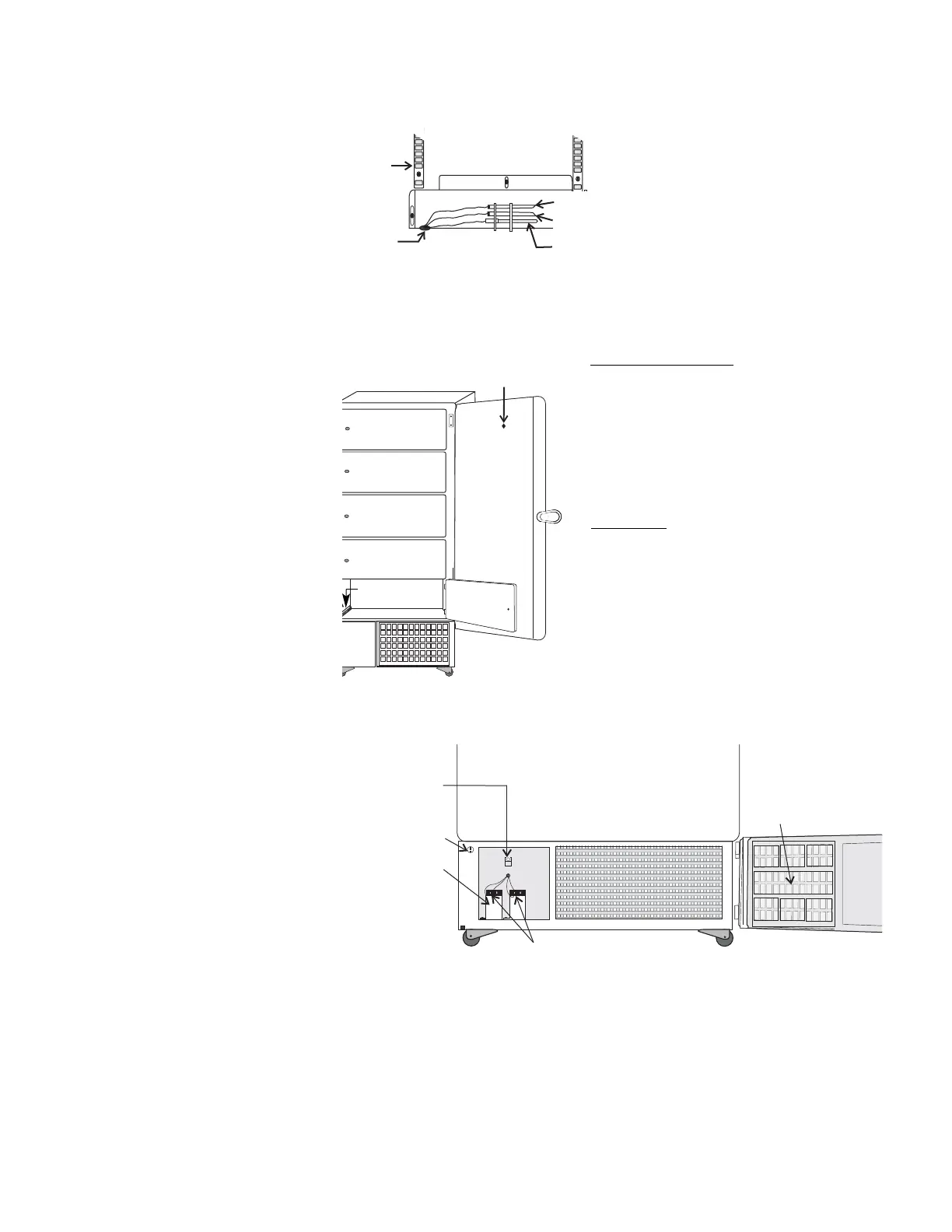

Figure 1-3. Chamber Probe
Vacuum
Relief Port
Figure 1-4. Vacuum Relief and
Probe Cover Location
Probe Cover
Battery power
switch
To
remove filter
Thermocouple
interconnect jack
Battery mounting
bracket
Freezer battery
and optional BUS battery
Figure 1-5. Battery(s) Location and Switch
