6
●

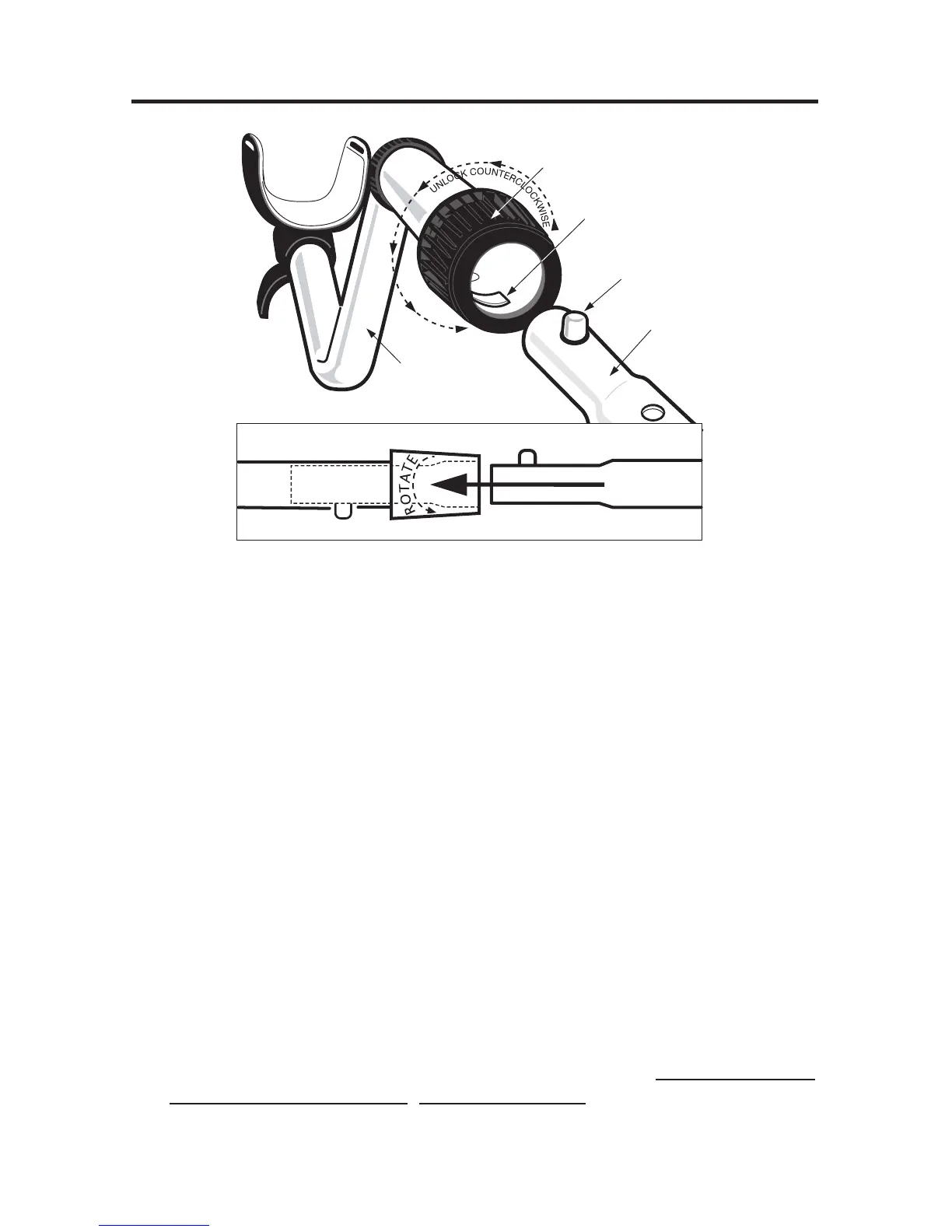

3 Position S-Rod upright.
●
4 Rotate the LOCKING COLLAR fully in the counterclockwise direction.
●
5 Insert your finger inside the tube and make sure the INTERNAL CAM LOCK
is flush with the inside of the tube.
●
6
Insert the MIDDLE STEM into the S-ROD, with the SILVER BUTTON pointed
upward.
●
7 Rotate the MIDDLE STEM until the SILVER BUTTON locates in the hole.
●
8 Twist the LOCKING COLLAR fully in the clockwise direction until it locks.
●
9 Repeat this process on the LOWER STEM.
●
10 Using the BOLT and KNURLED KNOB, attach the SEARCHCOIL to the
LOWER STEM.
●
11
Adjust the LOWER STEM to a length that lets you maintain a comfortable upright
posture with your arm relaxed at your side, and the SEARCHCOIL parallel to the
ground in front of you.
●
12
Wind the CABLE securely around the STEMS, leaving slack at the bottom.
●
13
Connect CABLE PLUG to housing.
Do not twist the Cable or Plug. Turn Locking Ring only. Use minimal finger
pressure to start the threads. Do not cross-thread. When the Locking Ring is
fully engaged over the threaded connector, give it a firm turn to make sure it is
very tight. When the Locking Ring is fully engaged over the threaded connector,
it may not cover all of the threads.
ASSEMBLY
(Continued)
