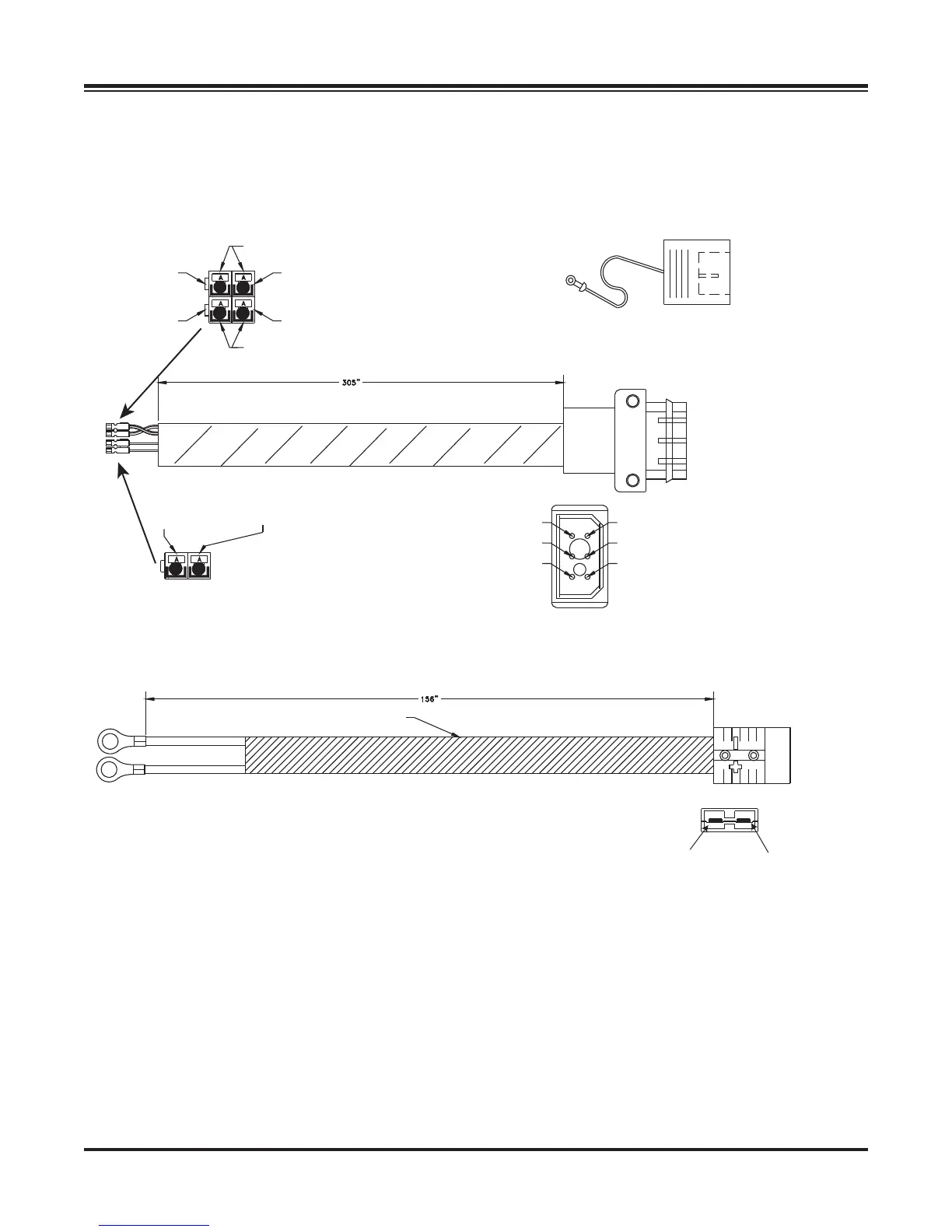

Fisher POLY-CASTER - Vehicle Harness Diagram

Lit. No. 43573/43583/43593, Rev. 01 14 August 15, 2013
White 10 GA
Spinner +
End View
Red
Black 10 GA
Spinner –
Red 10 GA
Auger +
Black
Green 10 GA
Auger –
Mold Cap
Blue 12 GA
Vibrator –
Orange 10 GA
Vibrator –
Spinner + 10 GA White
Auger + 10 GA Red
Vibrator + 12 GA Orange
Spinner – 10 GA Black
Hot
Circuit
Grd
Circuit
Auger – 10 GA Green
Vibrator – 12 GA Blue
Vehicle Harness
Control Power Cable
3/8" Terminal w/Heat Shrink
Black
Red
124" Tubing
Front View
Red to
Positive +
Black to
Negative –
HARNESS DIAGRAM
