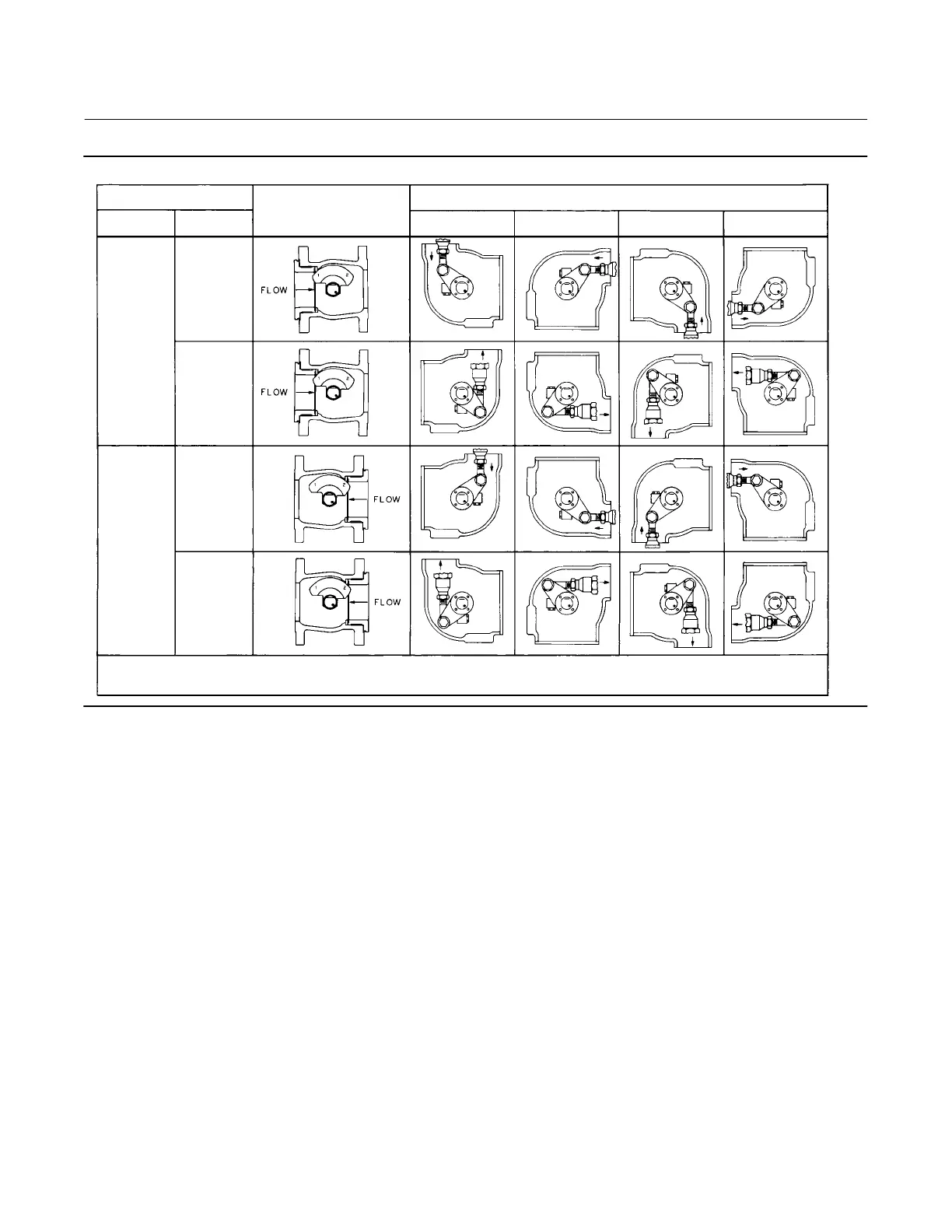

Figure 31. Index Marks for Actuator Lever Orientation for Non‐Series B Valves
ACTUATOR
VALVE OPEN
ACTUATOR POSITION
MOUNTING STYLE
1
23 4
RIGHT‐
HAND
(1)
STYLE A
STYLE B
STYLE C
STYLE D
LEFT‐
HAND
(1)
(PDTC)
(2)
(PDTO)
(2)
(PDTC)
(2)
(PDTO)
(2)
(3)
1. Right‐hand mounting controls with v notch no. 1; Left‐hand mounting controls with v notch no. 2
2. PDTC‐push down to close; PDTO‐push down to open
3. Arrow on lever indicates direction of actuator thrust to close valve
