INSTRUCTION MANUAL FIT REMOTE DISPLAY PINION

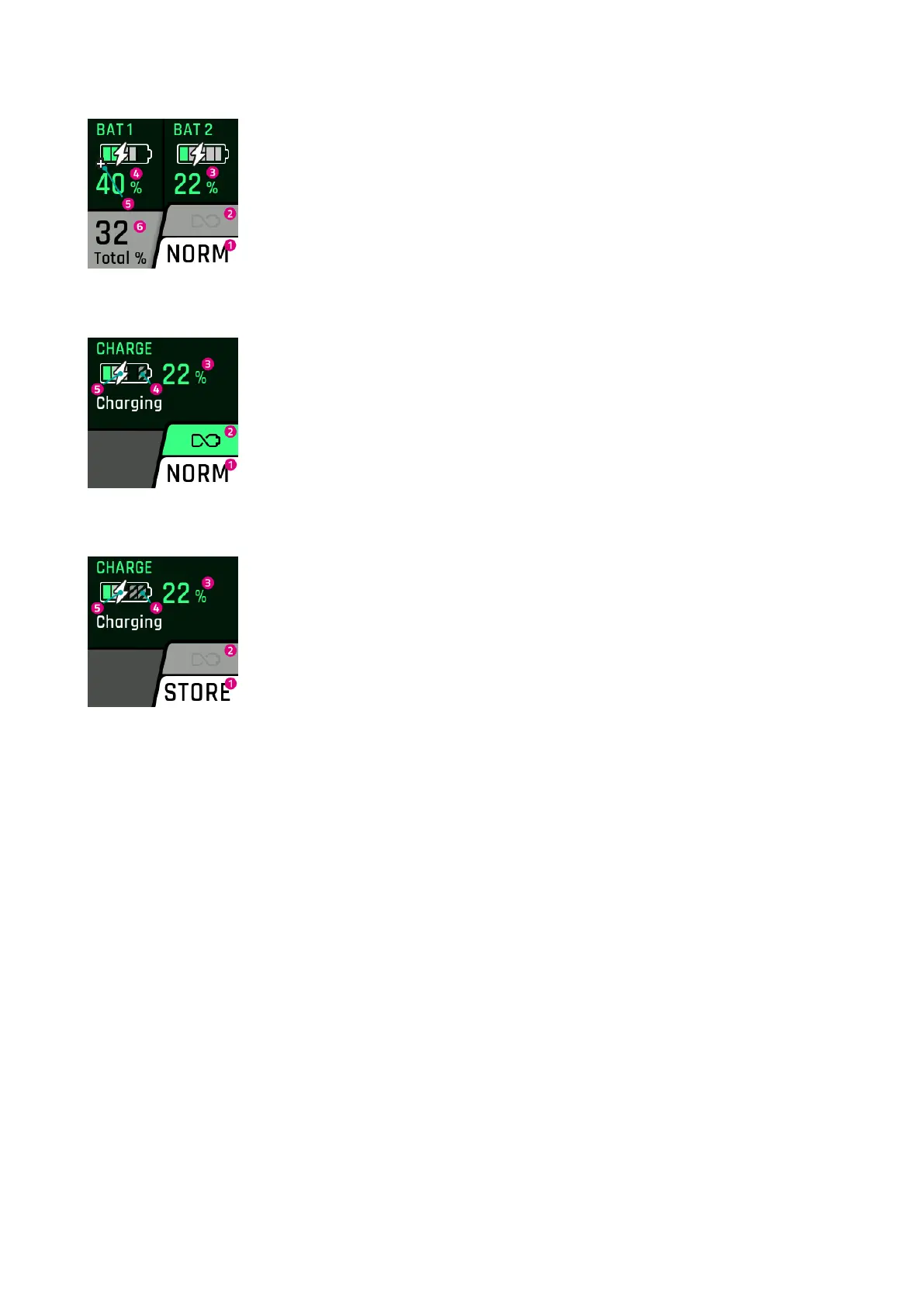

NORMAL CHARGING OF MULTIPLE BATTERIES
1. Current charging mode
2. Long Life mode (grayed out = switched off)
3. Current charge level of the second battery
4. Current charge level of the first battery
5. Range Extenders are displayed with a plus sign
6. Charging status based on the total capacity of the batteries on the e-bike
LONG LIFE MODE CHARGING
1. Current charging mode
2. Long Life mode (green background = switched on)
3. Current battery charge level
4. As the battery is not fully charged in Long Life mode, the rest is gray-hatched
5. Shows battery is currently being charged
CHARGING IN STORAGE MODE
1. Current charging mode
2. Long Life mode (grayed out = switched off)
3. Current battery charge level
4. As the battery is not fully charged in storage mode, the rest is gray-hatched
5. Shows battery is currently being charged
FIT_Manual_Remote_Display_Pinion_V3_en | Version 03 | 24.10.2023 24
