2. Switches and Keys Instructions

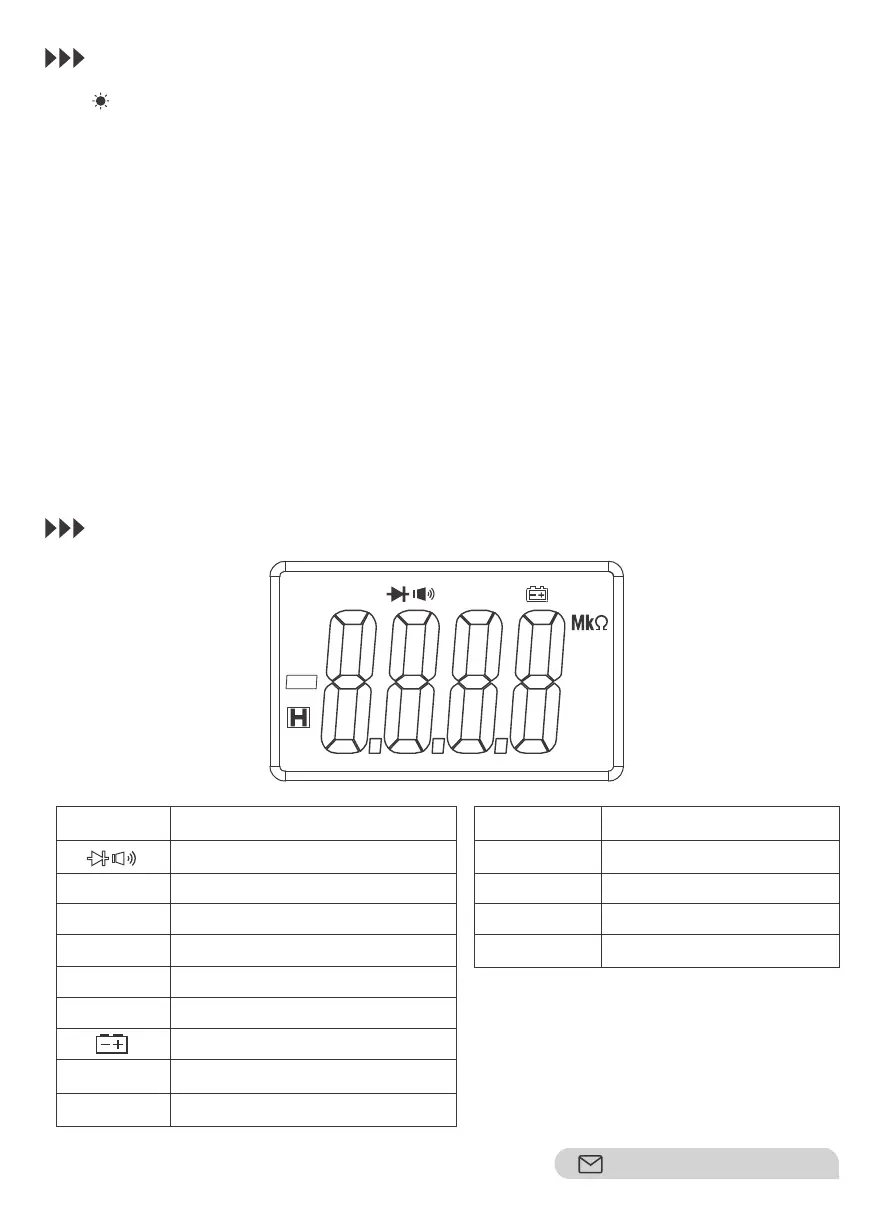

3. LCD Display
HOLD
Key: For data holding or backlight control.
SEL Key: For function switching.
RAN Key：Switch between manual and automatic measurement functions.
REL/Hz% Key: For relative measurement / frequency measurement / duty cycle mea-
surement.
MAX/MIN Key：To switch the maximum and minimum measurement functions.
OFF：Used to turn off the meter.
INPUT Terminal: Voltage, resistance, capacitance, frequency, duty cycle, diode, conti-
nuity, temperature and other input terminals.
COM Terminal：Voltage, resistance, capacitance, frequency, duty cycle, diode, continui-
ty and temperature common terminal.
Rotary Function Switch: To select the function and range.
AC, DC
AUTO
P MAX-MIN
INRUSH
REL
H
% %
℃, ℉
AC / DC
Diode Test, Continuity Test
Automatic Range
Peak Hold
Inrush current measurement status
Relative Measurement Mode
Temperature Measuring Mode
Low Battery
Data Hold
mV, V
nF, μF, mF
A
Ω, kΩ, MΩ
Hz, kHz, MHZ
MV, V
AMPERE (CURRENT)
nF, μF, mF
Ω, KΩ, MΩ
HZ, KHZ，MHZ (FREQUENCY)
