For all Slide Control models proceed as follows :-
2.2.7 Remove the burner. To allow burner removal, the control lever
operating cable must be removed. The control lever operating cable
can be seen running across the base of the fire, below the burner. To
release the cable, unscrew the cable securing screw located in the
centre of the aluminium operating arm and pull the cable out from its
fixing hole. Release the other end of the cable by pushing the cable
forwards to the right, i.e. into the operating arm so as to release the
tension. Pull the cable nipple out of the retaining hole and remove the

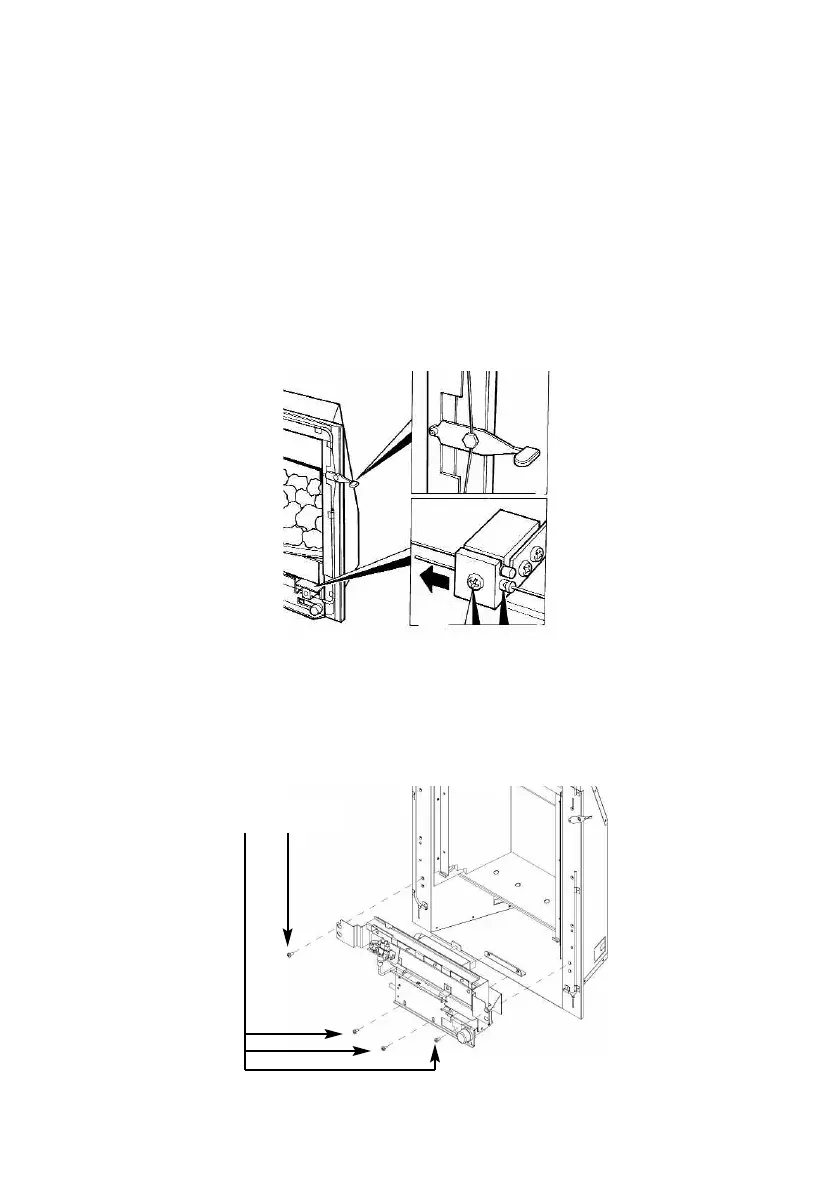

cable through the slot in the operating arm. See figure 12 below.
Fig. 12
2.2.8 Remove the two off screws from the left and right hand burner
mounting brackets, plus the two screws from the base of the control
panel as shown below in figure 13, this will allow removal of the
complete burner unit from the firebox.
Fig. 13
4 off burner
retaining screws
