6.3 MANUAL OPERATION OF REMOTE CONTROL & ELECTRONIC
FIRE CONTROL MODELS

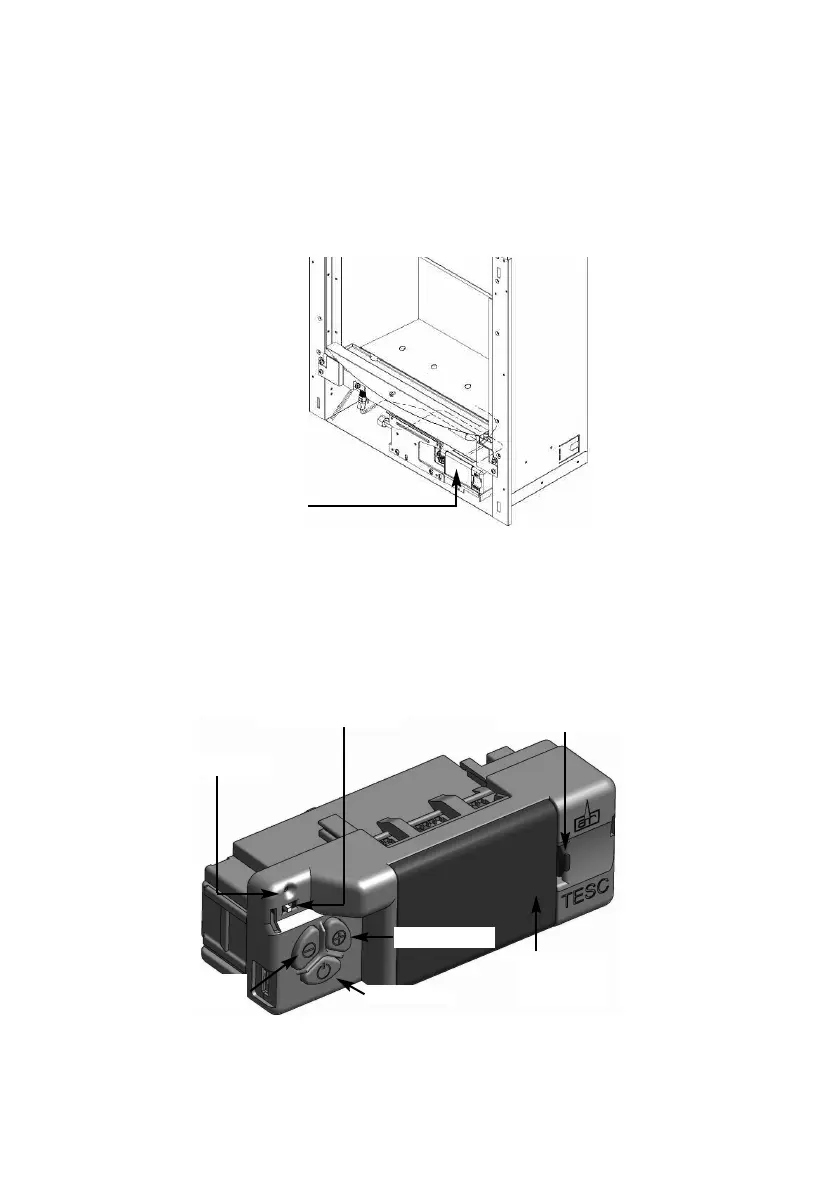

6.3.1 These products can therefore be operated manually should the need
arise. The control valve is located at the base of the fire as shown
below in figure 5.
Fig. 5
6.3.2 Ensure that the power isolation switch is in position “1” and the power
indicator light is illuminated (red) as shown in figure 6 below.
Fig. 6
64
Indicator light
Power isolation switch
Battery compartment
cover opening lever
Battery
compartment
cover
Power button
Increase flame
Decrease
flame
Position of control
valve
