Flavel Linear HE - Removal & Re-Fitting of the Glass Panel

6.13 REMOVING AND RE-FITTING THE GLASS PANEL

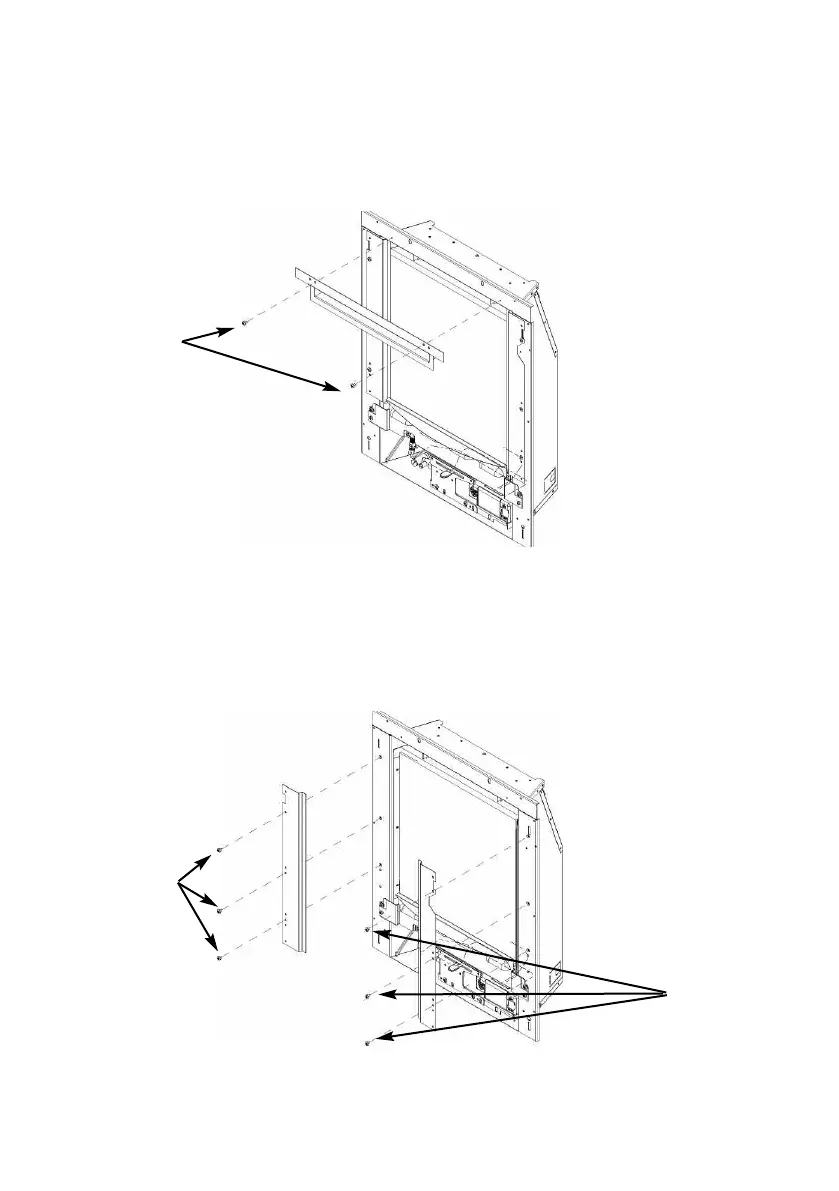

6.13.1 Remove the top glass retaining cover from the product. It is secured via
the two screws as indicated, see figure 30 below.
Fig. 30
6.13.2 Remove the left and right hand side glass securing brackets from the
product. They are secured via 3 off screws each side. Support the
glass panel to prevent it falling forwards when the side trims are
removed. See figure 31 below.
Fig. 31
86
2 off securing
screws
3 off securing
screws L/H/S
3 off securing
screw R/H/S
