6.10 RE-ASSEMBLING THE CERAMICS AND FUEL BED - PEBBLE
MODELS
6.10.1 Remove the glass panel and retaining trims as detailed on page 11 &
12. Place the ribbed ceramic fuelbed base on top of the fuelbed
support and pull fully forwards to the burner. Make sure that the
fuelbed base is located centrally in the fire box. Ensure that the
fuelbed base fit fully down onto the fuel bed support and is not
lodged on the burner. Ensure the air ports as indicated by the
arrows are not blocked by the fuel-bed matrix. See figure 22 & 23
below.

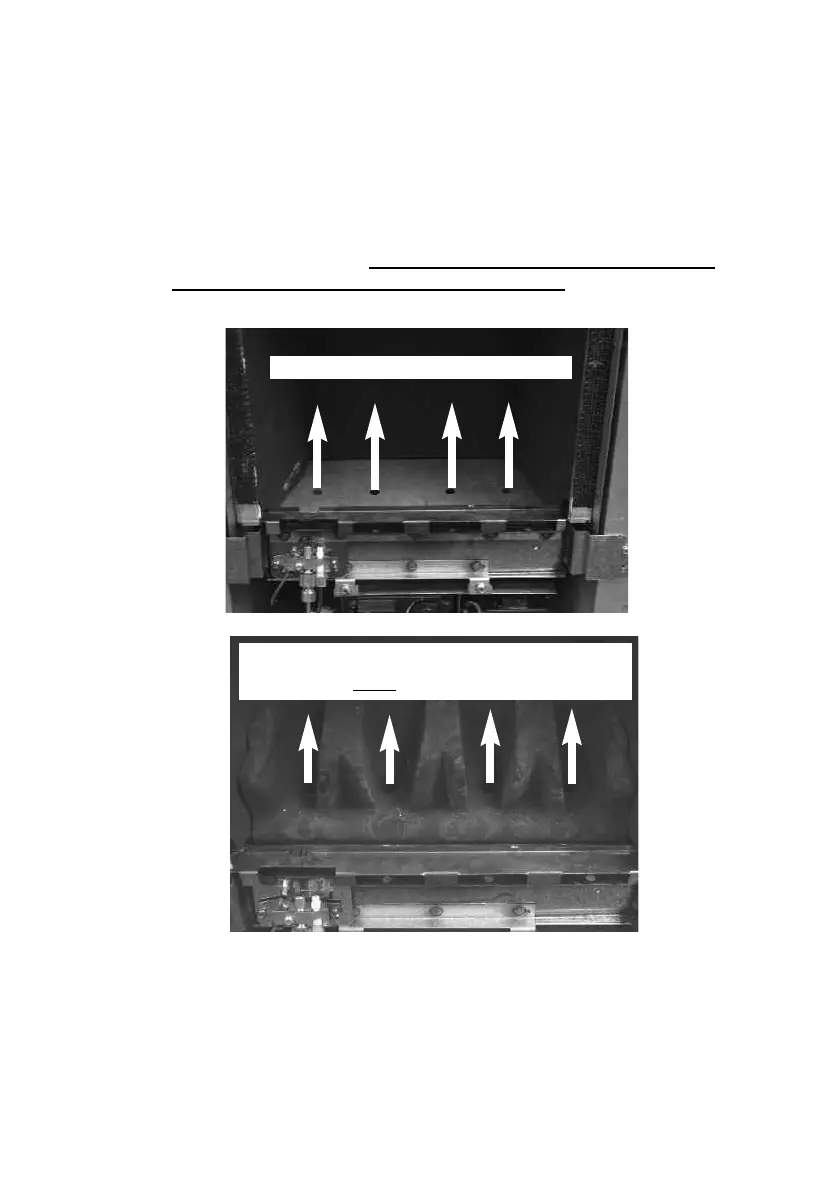

Fig. 22
Fig. 23
80
Check air ports in fuel-bed base panel are not obstructed.
If these air ports are not in line with the holes in the fuel-
bed base matrix do not proceed with the installation
Air ports in Fuelbed base mounting panel
