3.5 FITTING THE BATTERIES - REMOTE CONTROL MODELS

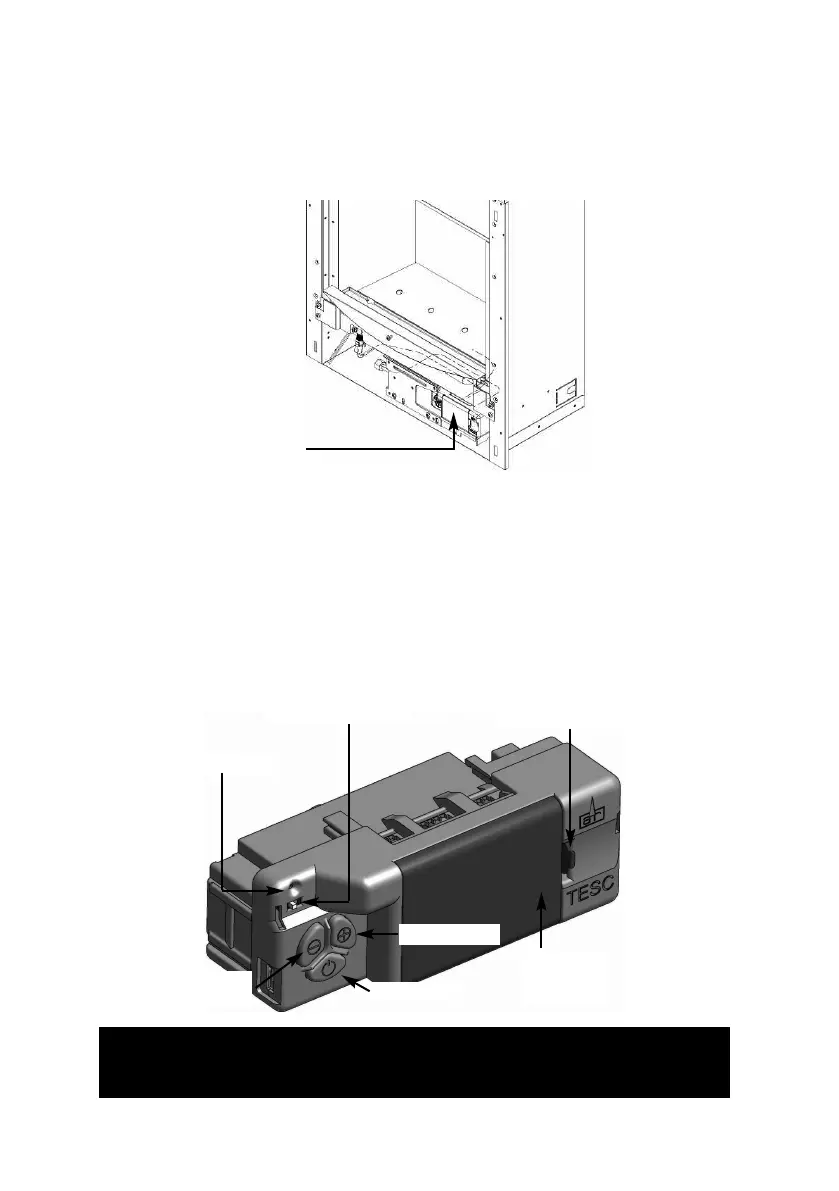

3.5.1 The control valve is located at the base of the fire as shown below in
figure 36.
Fig. 36
3.5.2 Remove the battery compartment cover from the control valve as
indicated below in figure 37 and fit the 3 off AA sized alkaline batteries
supplied to the control valve unit.
3.5.3 Ensure that the power isolation switch is in position “1” and the power
indicator light is illuminated (red) after the batteries have been fitted as
shown in figure 37 below.
Fig. 37
32
Position of battery
cover on control
valve
Indicator light
Power isolation switch
Battery compartment
cover opening lever
Battery
compartment
cover
Power button
Increase flame
Decrease
flame
IMPORTANT NOTE : THE BATTERIES SHOULD BE REPLACED WITH GOOD
QUALITY ALKALINE BATTERIES WHEN REQUIRED, THE BATTERY LIFE IS EXPECTED TO
BE A MINIMUM OF 12 MONTHS WITH NORMAL USAGE. FOR BEST PERFORMANCE BFM
EUROPE RECOMMEND THE USE OF ENERGIZER BATTERIES WITH IT’S PRODUCTS.
