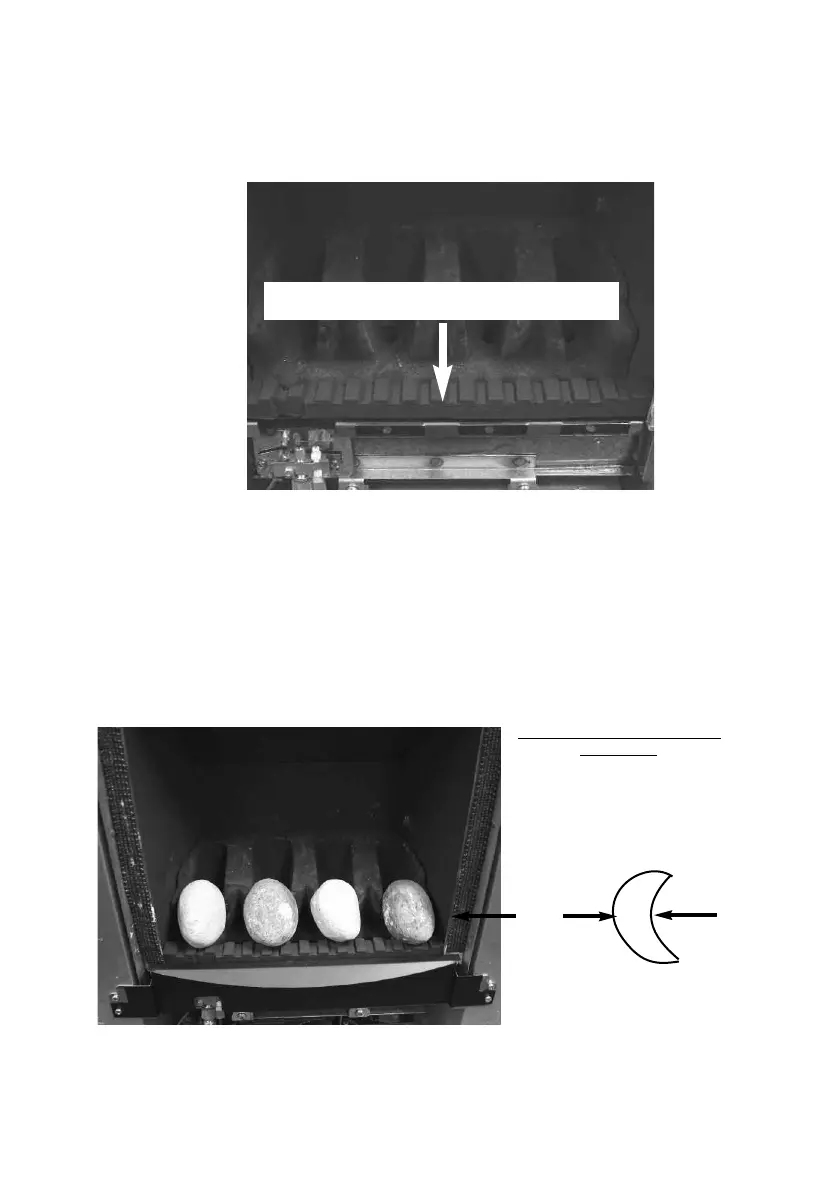

3.2.1 Position the front ceramic pebble support onto the burner support as
shown below in figure 30.
Fig. 30
3.2.2 Fit four of the specially shaped pebbles as shown below in figure 31.
Ensure that the cut-out in the rear face of the pebbles is positioned as
indicated. The 4 off specially shaped pebbles are packed in a bag with
a label “FR” on them.
Fig. 31
27
Positioning of front ceramic pebble support onto burner
support
Front
Face
Front Row Pebble Positioning
Side Profile
Rear
Face
