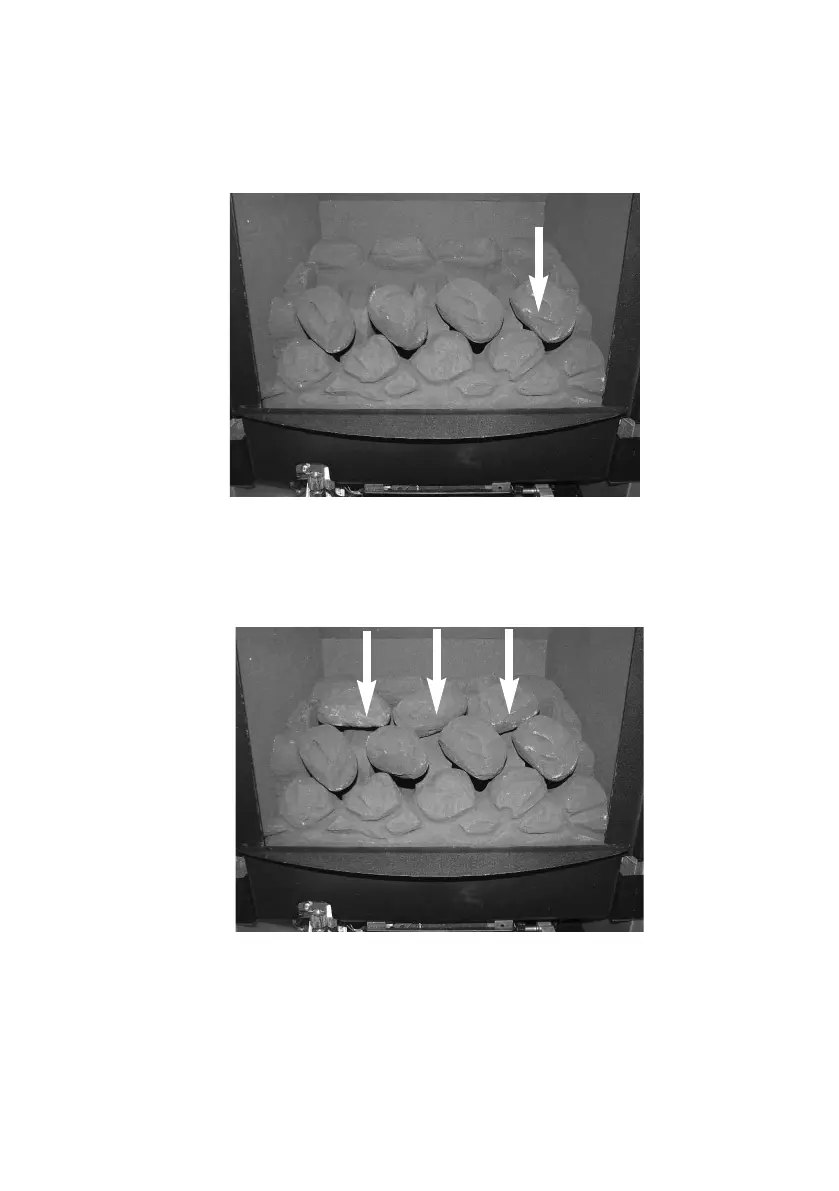

6.9.6
Fit the
front
row right
hand
coal as
shown
below in
figure
20.
Fig. 20
6.9.7
Fit the
rear
row of
3
coals as
shown
below in
figure
21.
Fig. 21
The
exact position
and fit
of
the coals
may
be very
finely
adjusted to
give
the most
pleasing
and random
appearance.
78
78
80
Table of Contents
Table of Contents
3
Information and Requirements
4
Appliance Information
4
Conditions of Installation
5
Flue and Chimney Suitability
5
Fireplace / Surround Suitability
6
Shelf Position
6
Chimney Inspection
6
Fire Place Opening / Catchment Space
7
Fitting to Metal Flue Boxes
8
Fitting to Pre-Cast Flues
9
Spillage Monitoring System
9
Wall / Hearth Mounting
10
Installation of Fire
11
Unpacking the Fire
11
Installing the Fire Box
11
Gas Tightness and Inlet Pressure (MC Models)
20
Gas Tightness and Inlet Pressure (SC Models)
21
Gas Tightness and Inlet Pressure (RC Models)
21
Assembling Fuel Bed and Commissioning
22
Assembling the Ceramics and Fuel Bed - Coal Models
22
3.2 Assembling the Ceramics and Fuel Bed - Pebble Models
27
Lighting the Appliance (Manual Control Model)
31
Lighting the Appliance (Slide Control Model)
32
Fitting the Batteries (Remote Control Models)
33
Lighting the Fire Manually Via the Control Valve (Remote Control Models)
34
Setting the Time, Temperature and Day on the Remote Handset (Remote Models)
35
Lighting the Fire Via the Remote Handset (Remote Control Models)
39
Advanced Settings of Remote Control Models
42
Fitting the Trim / Fret or Fascia
46
Checking for Clearance of Combustion Products
47
Section 4
48
Maintenance
48
Removal of the Burner Assembly (Manual Control Models)
48
Removal of the Piezo Igniter (Manual Control Models)
49
Removal of the Control Tap (Manual Control Models)
49
Removal of the Pilot Assembly (Manual Control Models)
49
Removal of the Burner Assembly (Slide Control Models)
50
Removal of the Battery Ignitor (Slide Control Models)
51
Repacing the Battery (Slide Control Models)
51
Removing the Oxy-Pilot Assembly (Slide Control Models)
51
Replacing the Control Cable (Slide Control Models)
52
Removal of the Burner Assembly (Remote Control Models)
53
Removing the Remote Gas Valve
53
Removing the Oxy-Pilot Assembly (Remote Control Models)
54
Replacing the Batteries (Remote Control Models)
54
Fret Information / Parts Shortlist
55
Operating the Fire - Manual, Slide & Remote Control Variants
58
Manual Operation of Remote Control Models
65
Replacing the Batteries on Remote Control Models
66
Replacing the Batteries on Slide Control Models
66
Spillage Monitoring System
67
Setting the Time, Day & Temperature on the Remote Handset
68
Advanced Settings Menu of the Remote Control
72
Re-Assembling the Ceramics & Fuel-Bed - Coal Models
76
Re-Assembling the Ceramics & Fuel-Bed - Pebble Models
81
12 Cleaning the Fire & Fuel-Bed / Glass Panel
86
Removal & Re-Fitting of the Glass Panel
87
Removal & Re-Fitting the Trim / Fret
89
User Replaceable Parts
