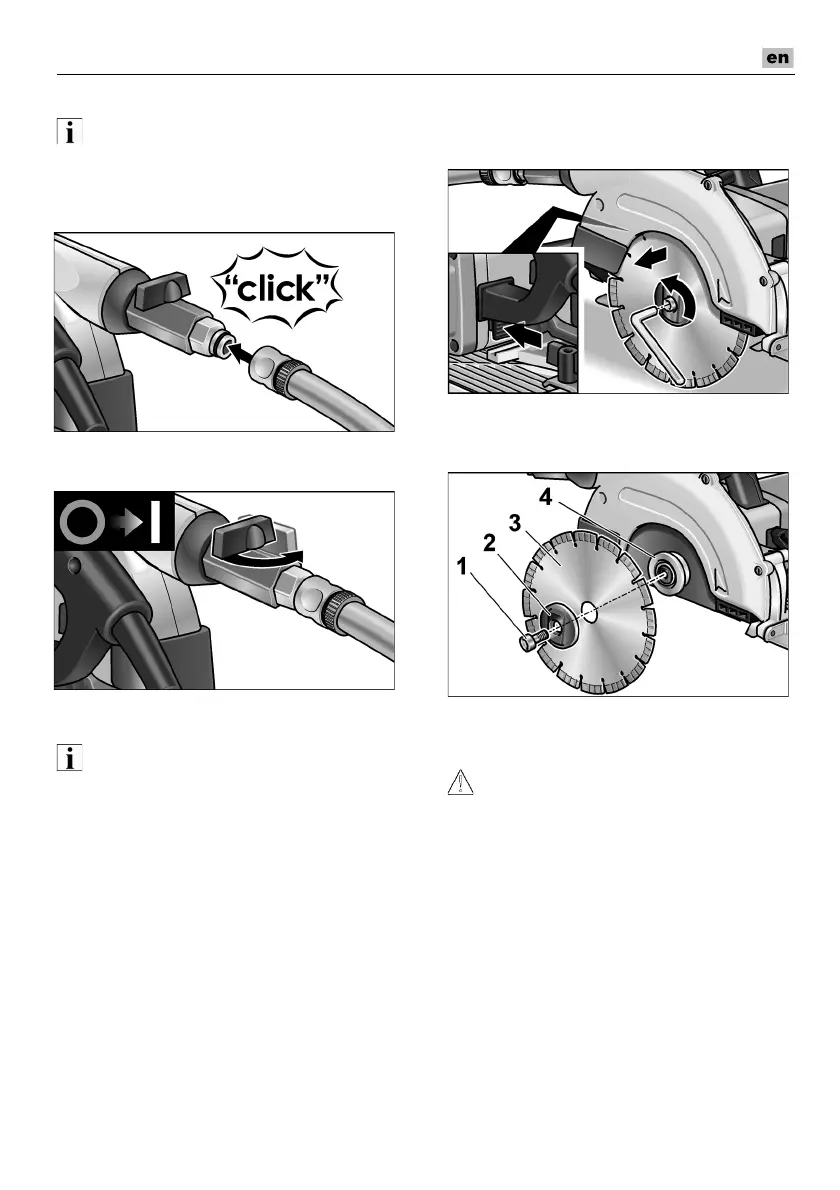

Water connection
klqb
fÑ=íÜÉêÉ=áë=åç=ÅçååÉÅíáçå=íç=íÜÉ=ï~íÉê=ëìééäó=
ã~áåëI=áí=áë=êÉÅçããÉåÇÉÇ=íç=ìëÉ=íÜÉ=ãçÄáäÉ=
ï~íÉê=éêÉëëìêÉ=í~åâ=ta=NM=EÅ~é~Åáíó=NM= äáíêÉëI=
Q=ã=éêÉëëìêÉ=ÜçëÉI=çêÇÉê=åçK=ORNKSOOFK=
 Attach ½" water hose to standard
self-locking quick coupling.
 Do not open shut-off valve until at the place
of use and the cutting-off wheel is rotating.
klqb
tÜÉå=ÅìííáåÖI=~Çàìëí=íÜÉ=ï~íÉê=ëìééäó=
~ë êÉèìáêÉÇK=oÉJ~Çàìëí=ïÜáäÉ=ÅìííáåÖK=
 When removing the hose, ensure that
no water runs into the machine.
Attach or change diamond-tipped
cutting-off wheel
 Pull out the mains plug.
 Press and hold down the spindle lock.
 Loosen clamping screw anti-clockwise
using enclosed Allen key.
 Unscrew clamping screw (1) and remove
front clamping flange (2).
Remove cutting-off wheel (3).
`^rqflk>
Ó kçíÉ=áåëí~ää~íáçå=éçëáíáçå=çÑ=Ä~Åâ=E QF=~åÇ=
Ñêçåí=Åä~ãéáåÖ=Ñä~åÖÉ=EOFK
Ó qÜÉ=ÅìííáåÖ=ÇáêÉÅíáçå=çÑ=íÜÉ=íÉÉíÜ=EÇáêÉÅJ
íáçå çÑ=~êêçï=çå=íÜÉ=ÅìííáåÖJçÑÑ=ïÜÉÉäF=~åÇ=
ÇáêÉÅíáçå=çÑ=êçí~íáçå=~êêçï=çå=íÜÉ=ÜçìëáåÖ=
ãìëí=~ÖêÉÉK
 Insert cutting-off wheel in the correct
position. Attach the front clamping flange
(2) with the flange on the outside and
manually tighten the locking screw (1)
in a clockwise direction.
 Press and hold down the spindle lock.
Tighten clamping screw (1) with Allen key.
