Page 9 © 2018 FlexRadio Systems, V1.2

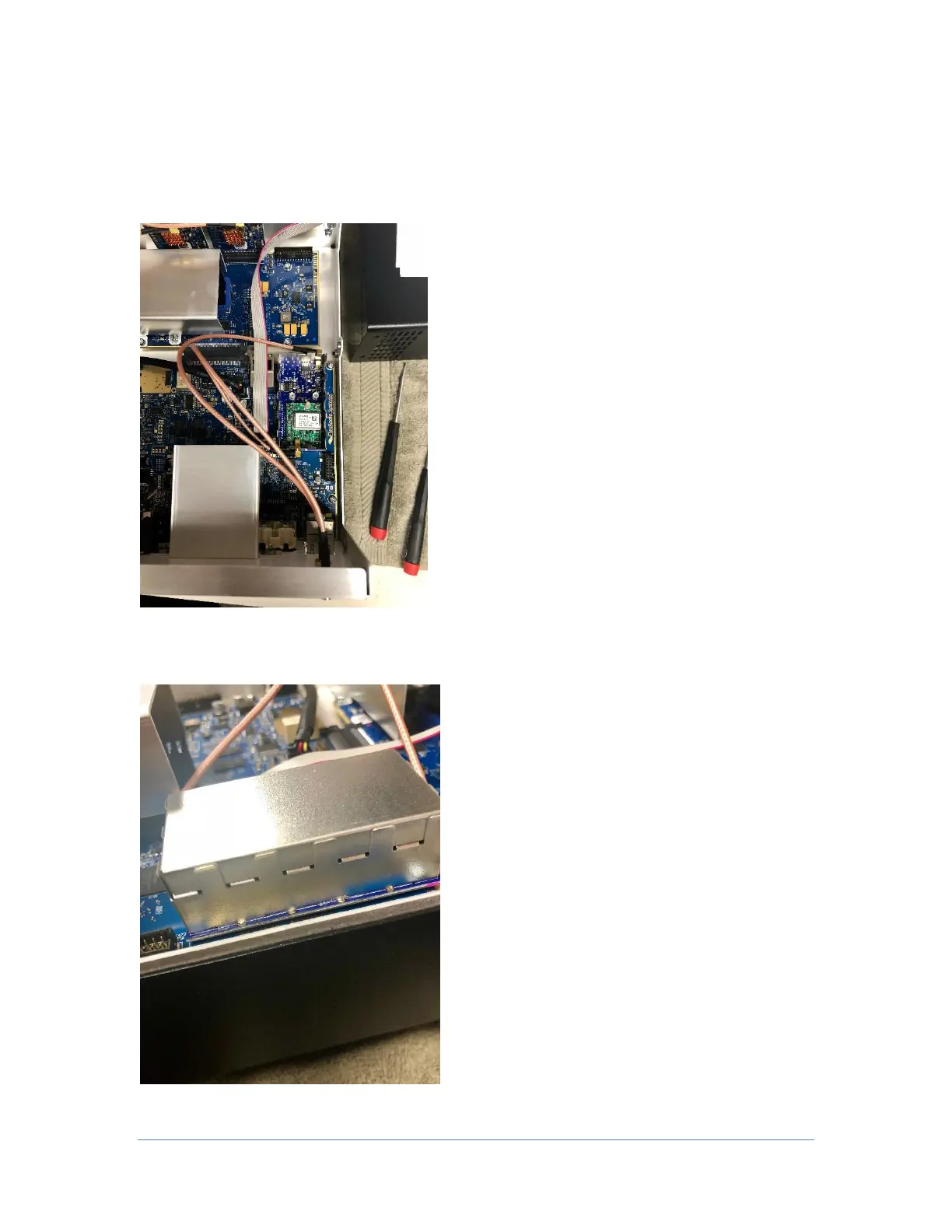

Press the 10MHZ OUT coax assembly onto the MMCX connector on the GPSDO assembly module closest
to the front of the FLEX-6000 as shown below.
Press the GPS ANT coax assembly onto the MMCX connector on the GPSDO assembly closest to the back
of the FLEX-6000 as shown below.
Replace the RF shield on the top of the GPSDO assembly module making sure that it is pressed down
firmly, as shown below, to prevent EMI leakage.
