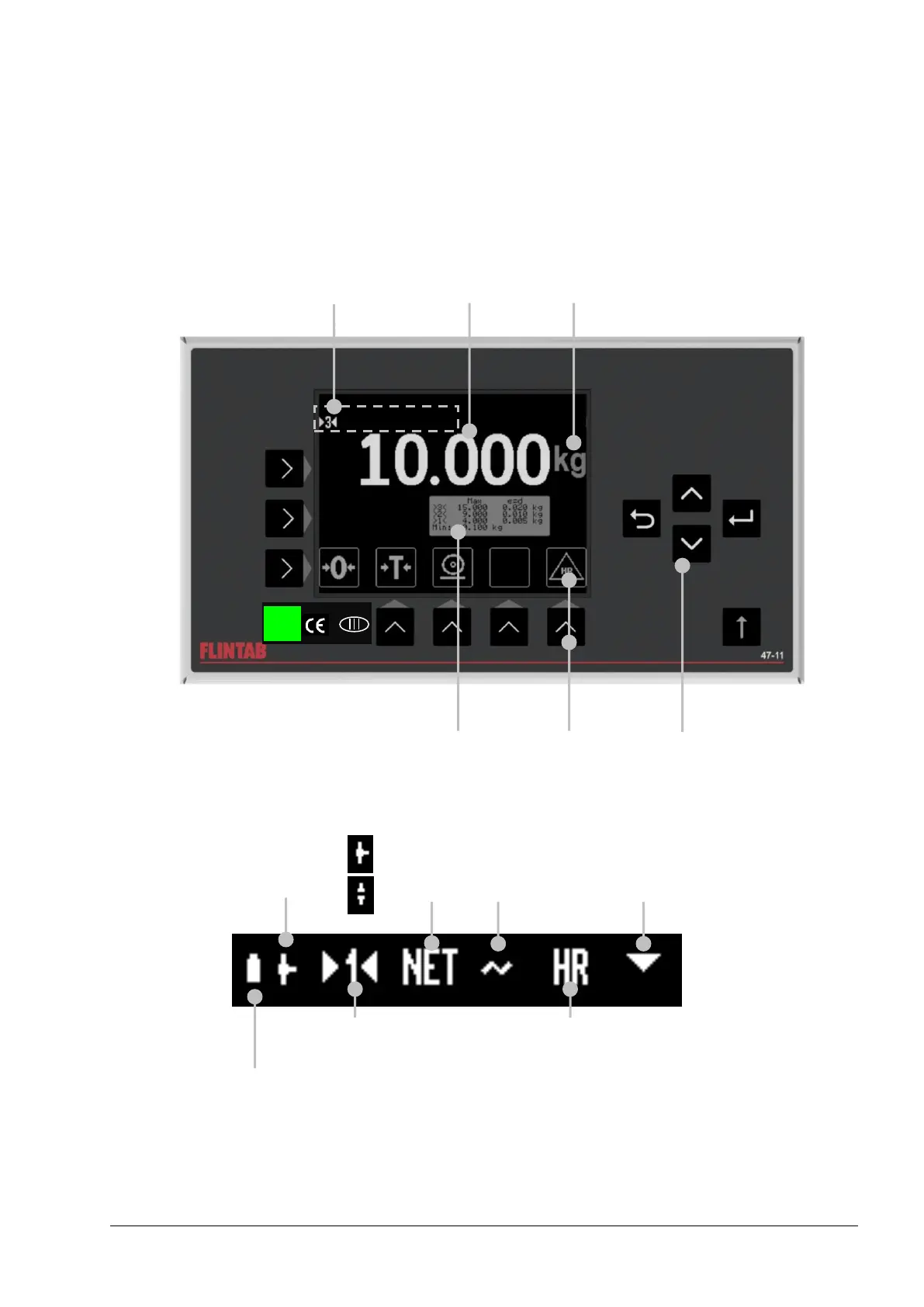

3.2 Standard layout
Status indications:
Weight unit,
Weightvalue
Touch-buttons
Capacity name-plate
Status indications
Navigation-buttons
M
15
Power-on=POW
Error =ERR,
Sensor error = SEN /TMP
Interval/Range = 1,2 or 3
Symbol indicates
instrument running on
battery power
Calibration mode
Unstable
High-resolution
Net weight
Ethernet status:
Connected -
Disconnected -
