3.2.1 Integrated capacity name-plate
The internal graphic LCD will as default display a capacity name-plate
automatically generated from current configuration (only exception is
when used for direct sales with price computing layout, where the
capacity name-plate is instead a separate sticker). The name-plate will
show the maximum and minimum weight and scale interval/division. IN
the case of multiple-interval or multiple-range operation, each
interval/range will be detailed.

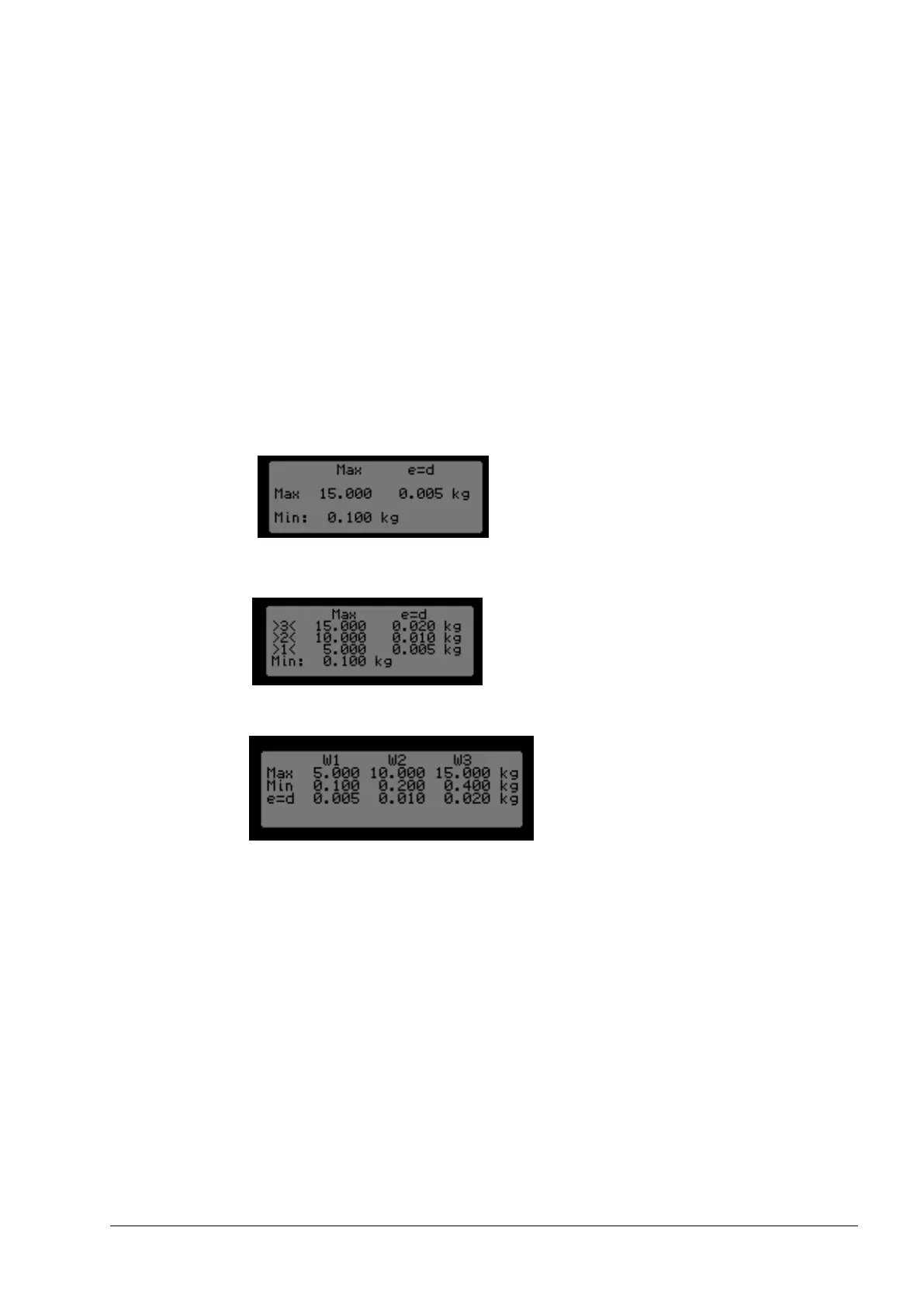

See examples below:
• Single interval:
• Triple interval
• Triple range
