FLIR E6-XT User Manual

Operation
7
Automatic Manual
7.14.2.2 Example 2

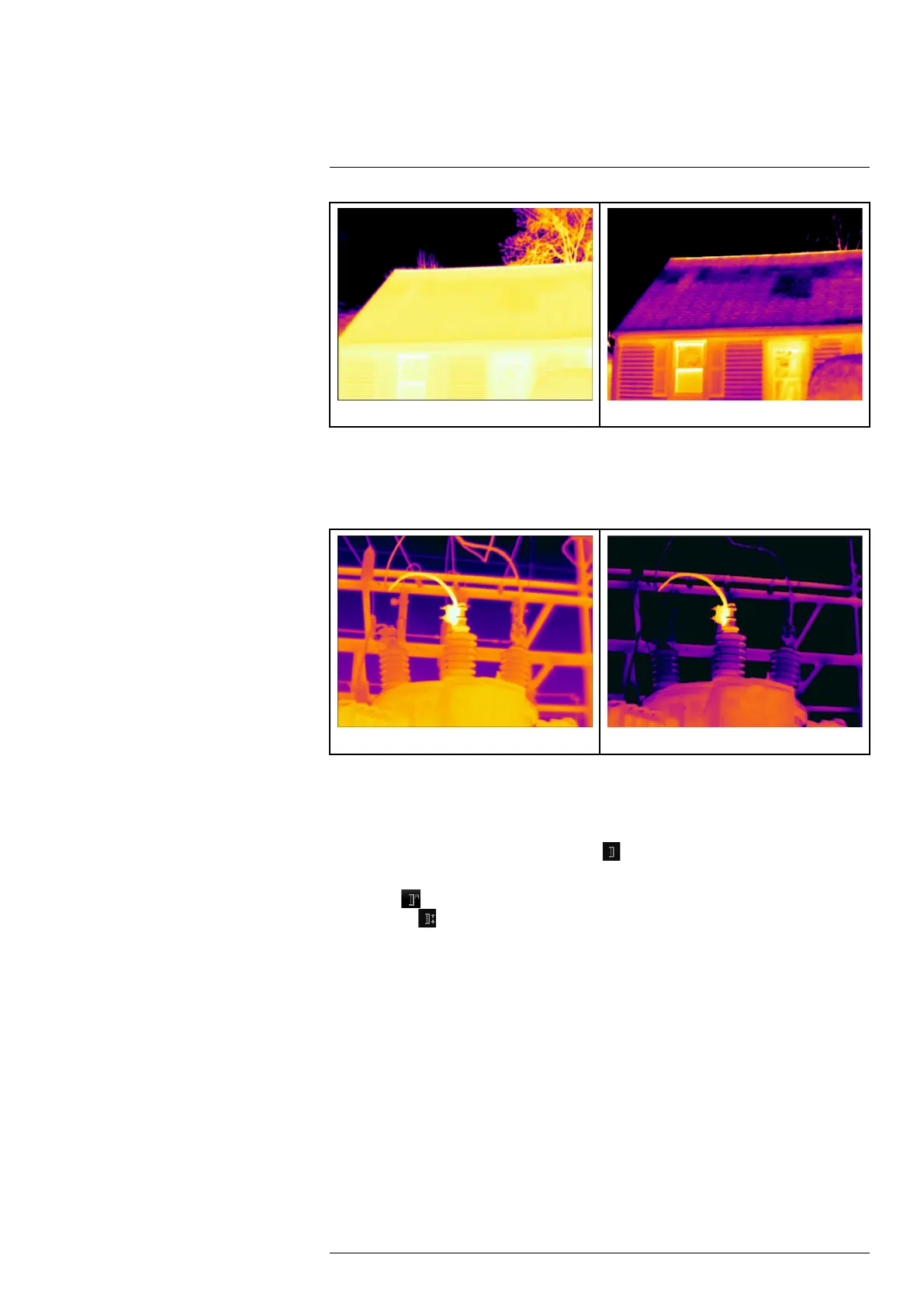

Here are two infrared images of an isolator in a power line. To make it easier to analyze
the temperature variations in the isolator, the temperature scale in the right image has
been changed to values close to the temperature of the isolator.
Automatic Manual
7.14.3 Procedure
Follow this procedure:
1. Push the center of the navigation pad. This displays a toolbar.
2. On the toolbar, select Temperature scale
. This displays a toolbar.
3. On the toolbar, select one of the following:
• Auto
.
• Manual
.
4. To change the temperature span and the temperature level in Manual mode, do the
following:
• Push the navigation pad left/right to select (highlight) the maximum and/or mini-
mum temperature.
• Push the navigation pad up/down to change the value of the highlighted
temperature.
7.15 Changing the camera temperature range
7.15.1 General
The camera is calibrated for different temperature ranges. Available temperature range
options are dependent on the camera model.
For accurate temperature measurements, you must change the Camera temperature
range setting to suit the expected temperature of the object you are inspecting.
#T559828; r. AP/56791/57153; en-US
19

FLIR E6-XT Specifications

General

Accuracy	±2°C or ±2% of reading
Field of View	45° × 34°
Weight	0.575 kg (1.27 lb)
Image Frequency	9 Hz
Dimensions	244 × 95 × 140 mm (9.6 × 3.7 × 5.5 in)
Spectral Range	7.5 – 13 µm
Operating Temperature Range	-15°C to 50°C (5°F to 122°F)
Storage Temperature Range	-40°C to 70°C (-40°F to 158°F)
Water and Dust Resistance	IP54
Resolution	240 × 180 pixels
Thermal Sensitivity	<0.06°C
Temperature Range	-20°C to +550°C
Display	3.0 in 320 × 240 color LCD
Image Modes	Thermal, MSX, Picture-in-Picture
Battery Life	4 hours
Digital Camera	640 x 480 pixels
File Format	Radiometric JPEG
Battery Type	Rechargeable Li-ion battery
Connectivity	Wi-Fi, USB
