FLIR E6-XT User Manual

Application examples11
11.3 Oxidized socket
11.3.1 General
Depending on the type of socket and the environment in which the socket is installed, ox-
ides may occur on the socket's contact surfaces. These oxides can lead to locally in-
creased resistance when the socket is loaded, which can be seen in an infrared image
as local temperature increase.
A socket’s construction may differ dramatically from one manufacturer to another. For
this reason, different faults in a socket can lead to the same typical appearance in an in-
frared image.
Local temperature increase can also result from improper contact between a wire and
socket, or from difference in load.
11.3.2 Figure

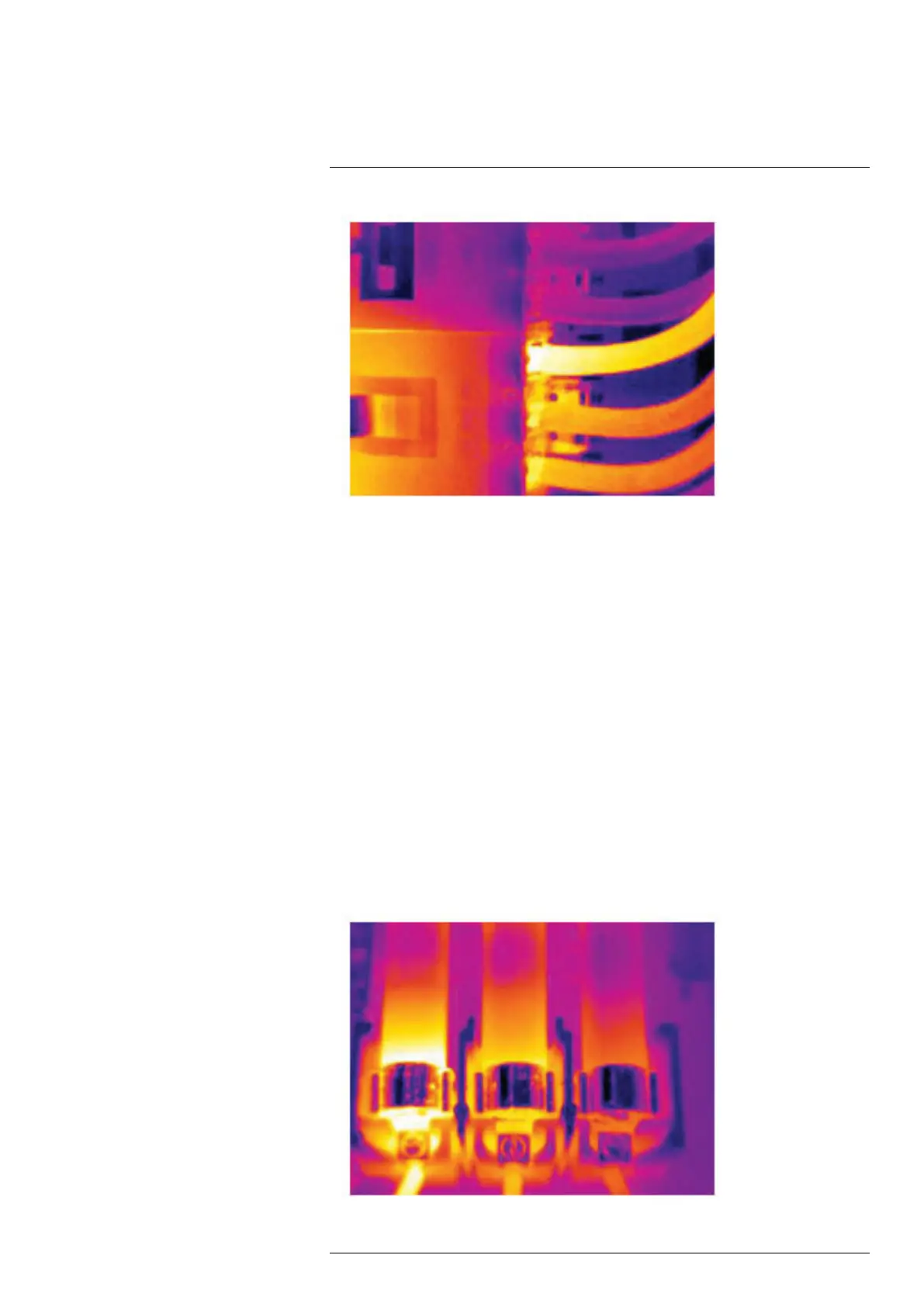

The image below shows a series of fuses where one fuse has a raised temperature on
the contact surfaces against the fuse holder. Because of the fuse holder’s blank metal,
the temperature increase is not visible there, while it is visible on the fuse’s ceramic
material.
#T559828; r. AP/56791/57153; en-US
32

FLIR E6-XT Specifications

General

Accuracy	±2°C or ±2% of reading
Field of View	45° × 34°
Weight	0.575 kg (1.27 lb)
Image Frequency	9 Hz
Dimensions	244 × 95 × 140 mm (9.6 × 3.7 × 5.5 in)
Spectral Range	7.5 – 13 µm
Operating Temperature Range	-15°C to 50°C (5°F to 122°F)
Storage Temperature Range	-40°C to 70°C (-40°F to 158°F)
Water and Dust Resistance	IP54
Resolution	240 × 180 pixels
Thermal Sensitivity	<0.06°C
Temperature Range	-20°C to +550°C
Display	3.0 in 320 × 240 color LCD
Image Modes	Thermal, MSX, Picture-in-Picture
Battery Life	4 hours
Digital Camera	640 x 480 pixels
File Format	Radiometric JPEG
Battery Type	Rechargeable Li-ion battery
Connectivity	Wi-Fi, USB
