FLIR E6-XT User Manual

2,29in
58,3mm
3,21in
81,5mm
2,6in
66mm
3,52in
89,5mm
1,41in
35,8mm
4,13in
105mm
1,66in
42,3mm
2,56in
65mm
1,96in
49,9mm
0,84in
21,4mm
0,87in
22,1mm
0,41in
R10,5mm

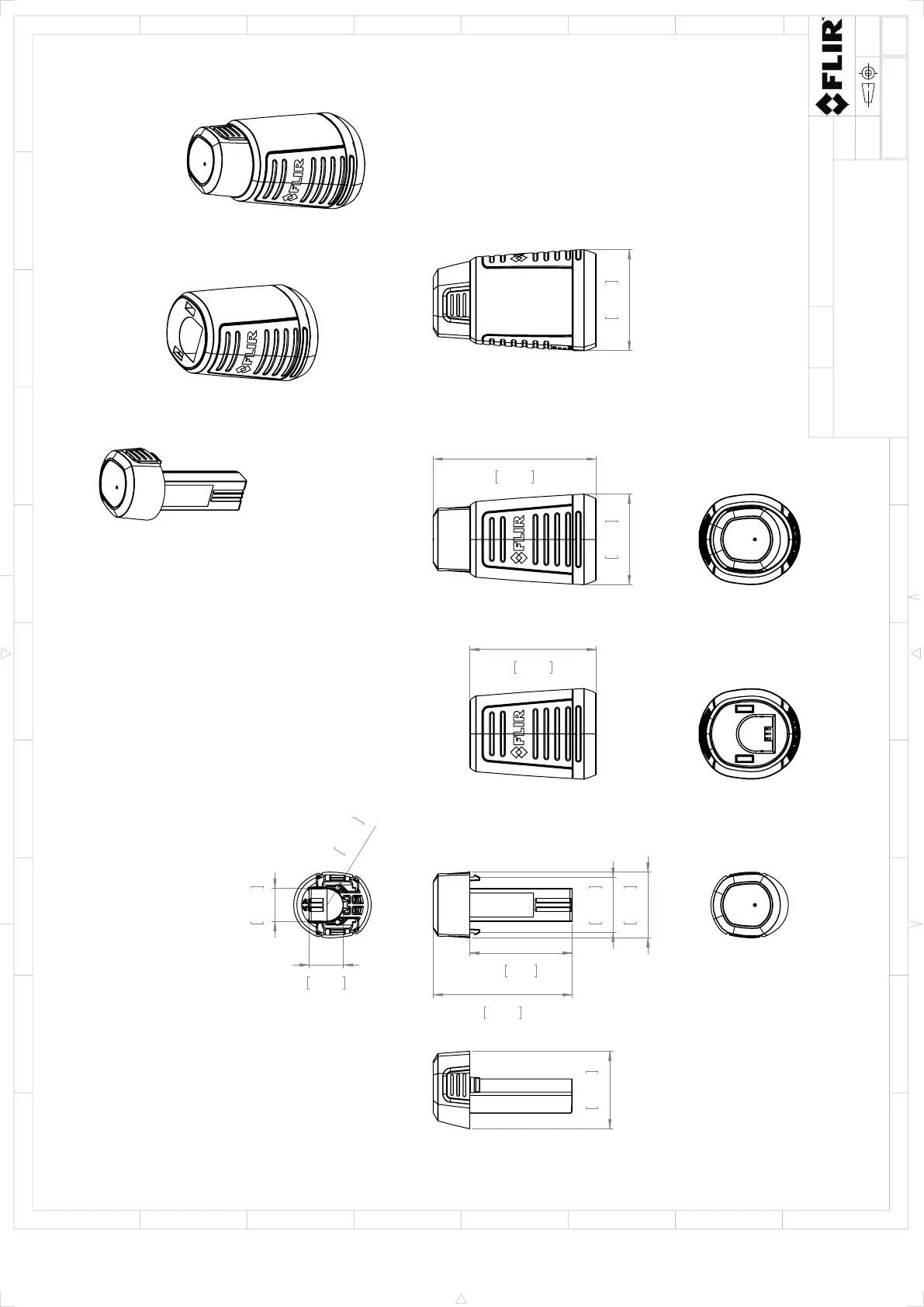

Charger and Power pack
Sheet
Drawing No.
Size
Check
Drawn by
Denomination
A3
2(2)
T127831
Basic dimensions FLIR Ex
CAHA
2013-03-25
R&D Thermography
Modified
1 2 3 4 5 6 7 8 9 10
A B
C D
E
F
G
H
1 32 54
C
F
B
D
G
E A
6
Size
A
1:2
Scale
© 2012, FLIR Systems, Inc. All rights reserved worldwide. No part of this drawing may be reproduced, stored in a retrieval system, or transmitted in any form, or by any means, electronic, mechanical, photocopying, recording, or otherwise,
without written permission from FLIR Systems, Inc. Specifications subject to change without further notice. Dimensional data is based on nominal values. Products may be subject to regional market considerations. License procedures may apply.
Product may be subject to US Export Regulations. Please refer to exportquestions@flir.com with any questions. Diversion contrary to US law is prohibited.
-

FLIR E6-XT Specifications

General

Accuracy	±2°C or ±2% of reading
Field of View	45° × 34°
Weight	0.575 kg (1.27 lb)
Image Frequency	9 Hz
Dimensions	244 × 95 × 140 mm (9.6 × 3.7 × 5.5 in)
Spectral Range	7.5 – 13 µm
Operating Temperature Range	-15°C to 50°C (5°F to 122°F)
Storage Temperature Range	-40°C to 70°C (-40°F to 158°F)
Water and Dust Resistance	IP54
Resolution	240 × 180 pixels
Thermal Sensitivity	<0.06°C
Temperature Range	-20°C to +550°C
Display	3.0 in 320 × 240 color LCD
Image Modes	Thermal, MSX, Picture-in-Picture
Battery Life	4 hours
Digital Camera	640 x 480 pixels
File Format	Radiometric JPEG
Battery Type	Rechargeable Li-ion battery
Connectivity	Wi-Fi, USB
