Thermographic measurement techniques12
3. Measure the radiation intensity (= apparent temperature) from the reflection source
using the following settings:
• Emissivity: 1.0
• D
obj
: 0
You can measure the radiation intensity using one of the following two methods:

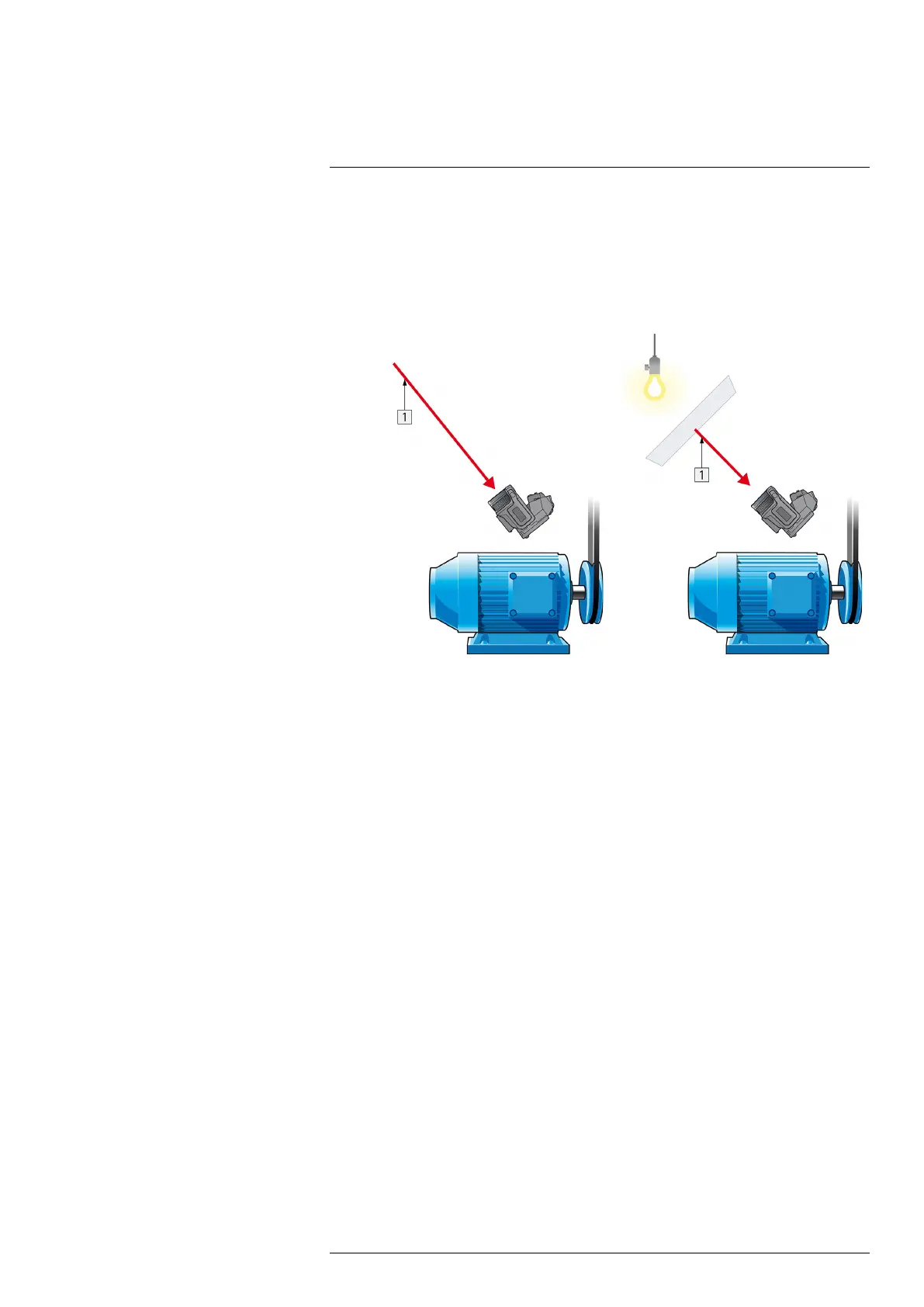

Figure 12.3 1 = Reflection source Figure 12.4 1 = Reflection source
You can not use a thermocouple to measure reflected apparent temperature, because a
thermocouple measures temperature, but apparent temperatrure is radiation intensity.
12.2.1.1.2 Method 2: Reflector method
Follow this procedure:
1. Crumble up a large piece of aluminum foil.
2. Uncrumble the aluminum foil and attach it to a piece of cardboard of the same size.
3. Put the piece of cardboard in front of the object you want to measure. Make sure that
the side with aluminum foil points to the camera.
4. Set the emissivity to 1.0.
#T559828; r. AP/56791/57153; en-US
37

FLIR E6-XT Specifications

General

Accuracy	±2°C or ±2% of reading
Field of View	45° × 34°
Weight	0.575 kg (1.27 lb)
Image Frequency	9 Hz
Dimensions	244 × 95 × 140 mm (9.6 × 3.7 × 5.5 in)
Spectral Range	7.5 – 13 µm
Operating Temperature Range	-15°C to 50°C (5°F to 122°F)
Storage Temperature Range	-40°C to 70°C (-40°F to 158°F)
Water and Dust Resistance	IP54
Resolution	240 × 180 pixels
Thermal Sensitivity	<0.06°C
Temperature Range	-20°C to +550°C
Display	3.0 in 320 × 240 color LCD
Image Modes	Thermal, MSX, Picture-in-Picture
Battery Life	4 hours
Digital Camera	640 x 480 pixels
File Format	Radiometric JPEG
Battery Type	Rechargeable Li-ion battery
Connectivity	Wi-Fi, USB
