FLIR E76 User Manual

Inspection Route18

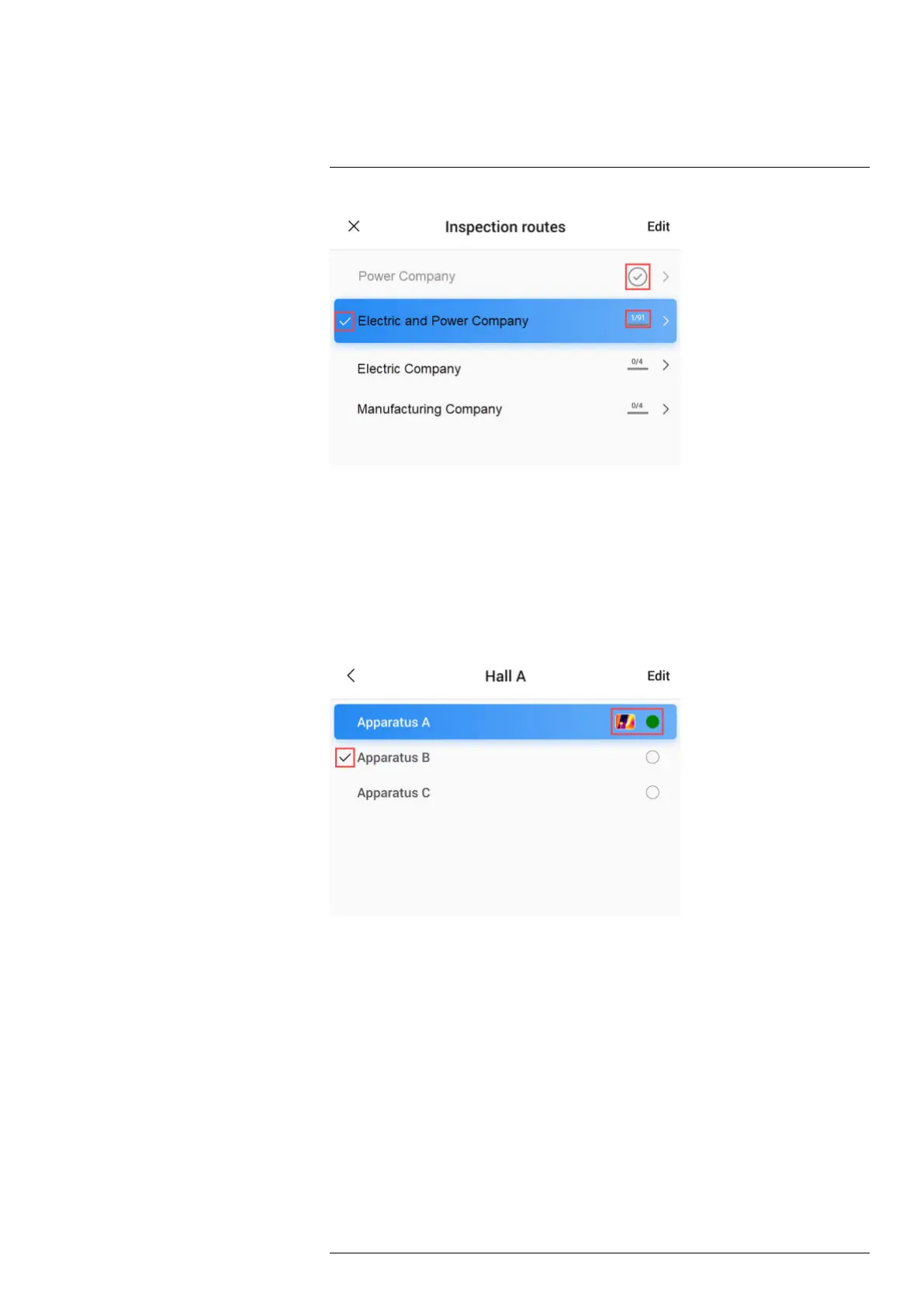

Figure 18.1
Figure 18.1 shows an example of the inspection list:
• The first inspection route is completed and locked, which is indicated by the check
mark to the right.
• The second inspection route has started. It includes a total of 91 inspection points,
and one of them has been inspected. The second inspection route includes the cur-
rent inspection point in live view, which is indicated by the check mark to the left.
To display the next level in the inspection route structure, tap an item in the list.
Figure 18.2
Figure 18.2 shows an example of a level with inspection points:
• The first inspection point has one or more images and the status is set to “green.”
• The second inspection point is the current inspection point in live view, which is indi-
cated by the check mark to the left.
18.3 Performing an inspection
18.3.1 Preparation
Note This procedure assumes that an inspection route file has been created. For more
information, see section 18.5 Creating an inspection route.
1. Add the inspection route file to the root folder on the memory card.
2. Insert the memory card into the camera.
3. Start the camera.
#T810587; r. AD/90967/90989; en-US
98

FLIR E76 Specifications

General

Field of View	24° × 18°
Display	4-inch touchscreen LCD
Wi-Fi	Yes
Accuracy	±2 °C (±3.6 °F) or ±2% of reading
Spatial Resolution (IFOV)	1.31 mrad
Digital Camera	5 MP
Digital Zoom	1-4x continuous
Laser Pointer	Yes
Video Recording	Yes
Weight	1 kg (2.2 lbs)
Operating Temperature Range	-15°C to 50°C (5°F to 122°F)
Storage Temperature Range	-40°C to 70°C (-40°F to 158°F)
Thermal Sensitivity	<0.04°C at +30°C (86°F) / <40 mK
Focus	Manual and auto
Storage	Internal memory and SD card
Image Modes	Thermal, visible, MSX, picture-in-picture
File Formats	JPEG, MPEG-4
Battery Type	Rechargeable Li-ion
Connectivity	USB 2.0, Wi-Fi, Bluetooth
Image Storage	SD card
Lens Options	14°, 24°, 42°
Resolution	320 × 240 pixels
