FLIR E76 User Manual

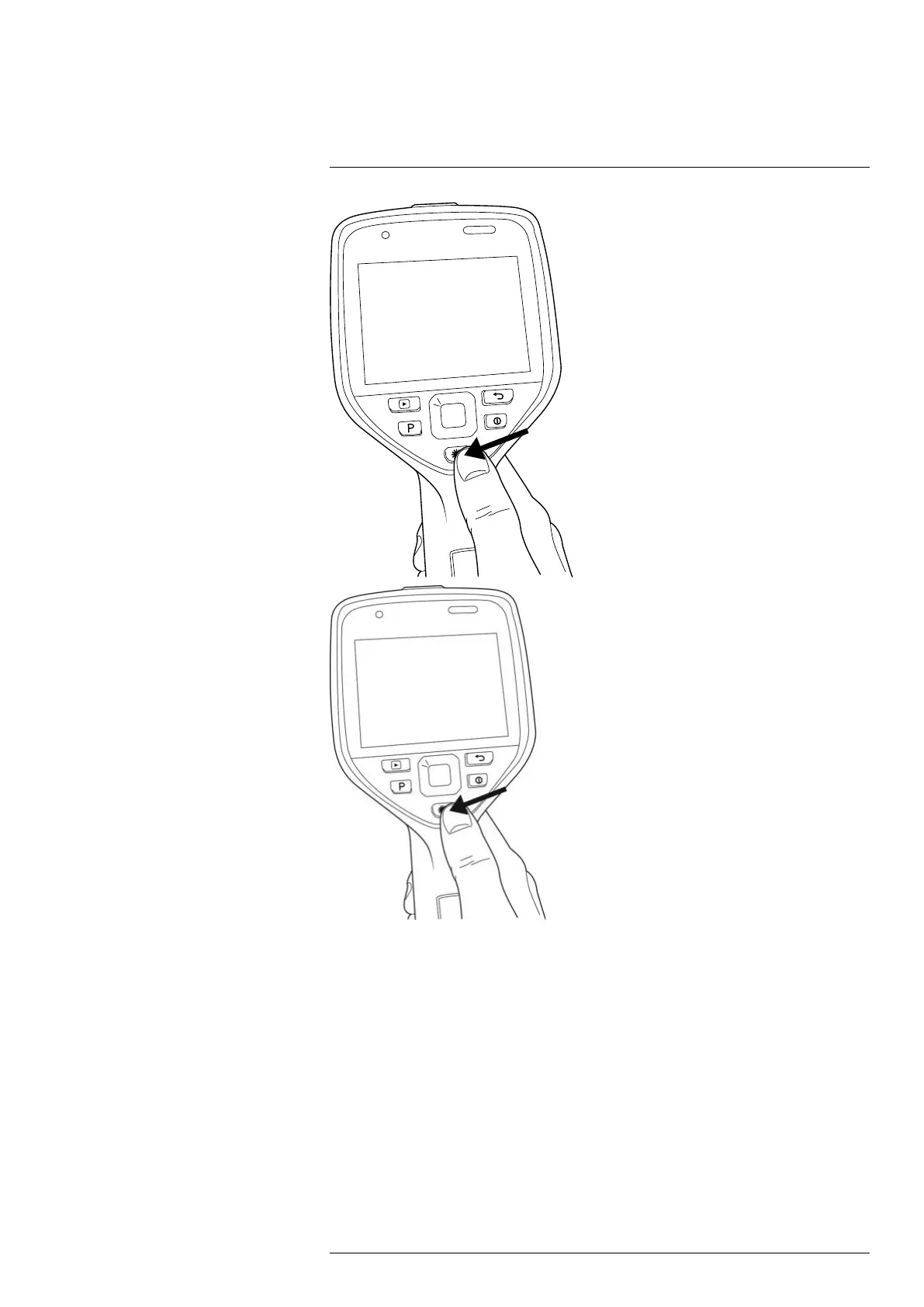

Handling the camera
7
7.6 Measuring areas
7.6.1 General
Note The availability of this feature is dependent on the camera model.
The distance measured by the laser distance meter can be used as the basis for area
calculations. A typical application is to estimate the size of a damp stain on a wall.
To measure the area of a surface, you need to lay out a box or circle measurement tool
on the screen. The camera calculates the area of the surface enclosed by the box or
circle tool. The calculation is an estimate of the surface area, based on the measured
distance to the target.
When the laser distance meter is on, you will see a laser dot approximately at the target.
The laser distance meter measures the distance to that target. The camera assumes that
this distance is valid for the entire box or circle tool.
#T810587; r. AD/90967/90989; en-US
31

FLIR E76 Specifications

General

Field of View	24° × 18°
Display	4-inch touchscreen LCD
Wi-Fi	Yes
Accuracy	±2 °C (±3.6 °F) or ±2% of reading
Spatial Resolution (IFOV)	1.31 mrad
Digital Camera	5 MP
Digital Zoom	1-4x continuous
Laser Pointer	Yes
Video Recording	Yes
Weight	1 kg (2.2 lbs)
Operating Temperature Range	-15°C to 50°C (5°F to 122°F)
Storage Temperature Range	-40°C to 70°C (-40°F to 158°F)
Thermal Sensitivity	<0.04°C at +30°C (86°F) / <40 mK
Focus	Manual and auto
Storage	Internal memory and SD card
Image Modes	Thermal, visible, MSX, picture-in-picture
File Formats	JPEG, MPEG-4
Battery Type	Rechargeable Li-ion
Connectivity	USB 2.0, Wi-Fi, Bluetooth
Image Storage	SD card
Lens Options	14°, 24°, 42°
Resolution	320 × 240 pixels
