FLIR E76 User Manual

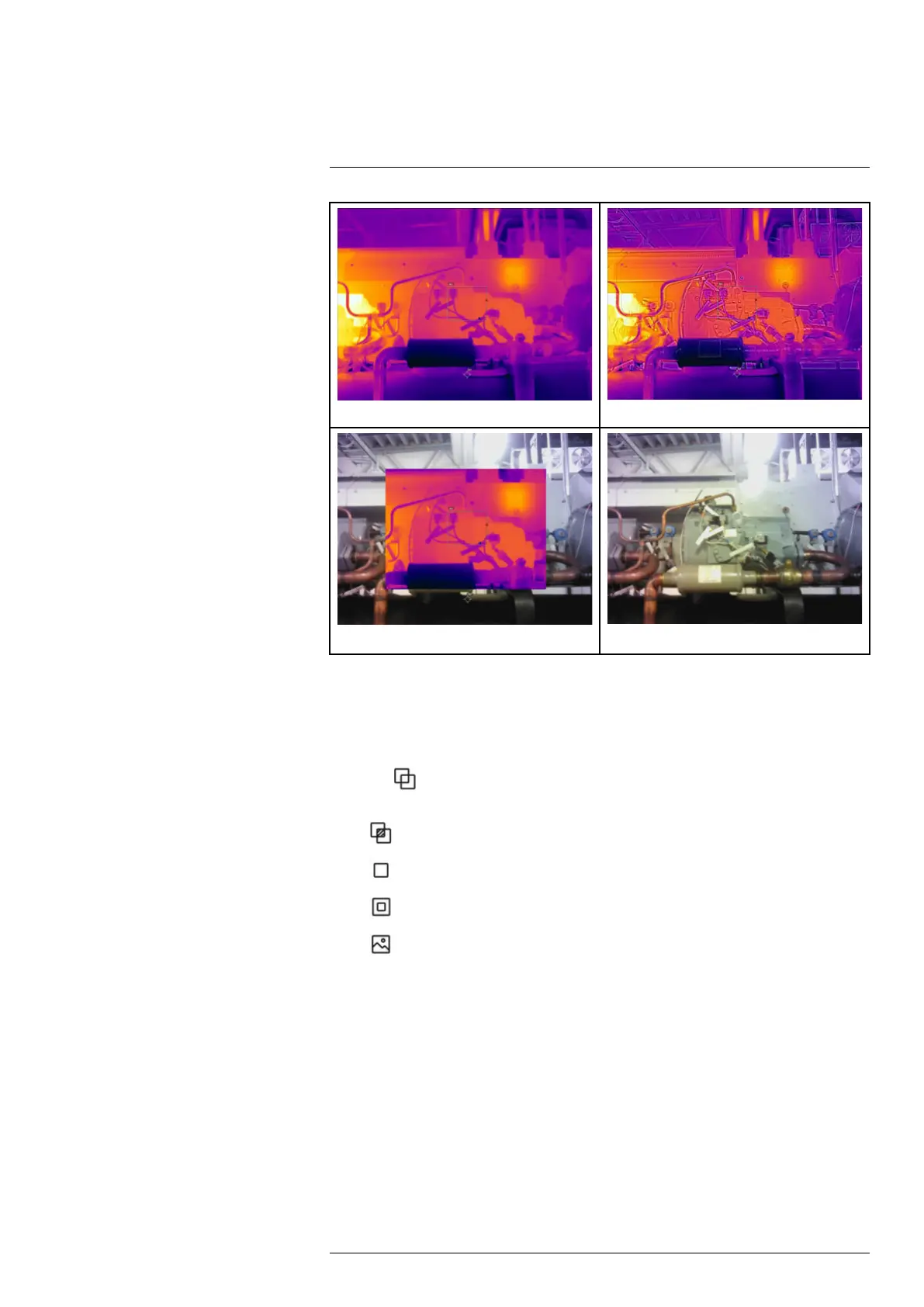

Working with image modes12
Thermal
Thermal MSX
Picture in picture
Digital camera
12.3 Selecting an image mode
Follow this procedure:
1. Push the navigation pad to display the menu system.
2. Select
(Image mode) and push the navigation pad. This displays a submenu.
3. Use the navigation pad to select one of the following:
•
(Thermal MSX).
•
(Thermal).
•
(Picture in picture).
•
(Digital camera).
Note If the *.csq video format is selected (Settings > Save options & storage > Vid-
eo compression) and the recording mode Video is selected (Settings > Recording
mode), it will only be possible to select the image mode Thermal.
4. Push the navigation pad to confirm and exit the menu mode.
5. If Picture in picture mode is selected, you can at this point move and resize the infra-
red image frame. (For some camera models, the image frame is locked in the center
and cannot be moved.) Do the following:
5.1. To activate the Picture in picture tool, touch a corner of the infrared image
frame. The tool is now displayed showing five handles, one in the middle and
one in every corner of the frame.
5.2. To move the frame, touch and hold the middle handle and drag the frame.
5.3. To resize the frame, touch and hold one of the corner handles and drag the
corner of the frame.
#T810587; r. AD/90967/90989; en-US
78

FLIR E76 Specifications

General

Field of View	24° × 18°
Display	4-inch touchscreen LCD
Wi-Fi	Yes
Accuracy	±2 °C (±3.6 °F) or ±2% of reading
Spatial Resolution (IFOV)	1.31 mrad
Digital Camera	5 MP
Digital Zoom	1-4x continuous
Laser Pointer	Yes
Video Recording	Yes
Weight	1 kg (2.2 lbs)
Operating Temperature Range	-15°C to 50°C (5°F to 122°F)
Storage Temperature Range	-40°C to 70°C (-40°F to 158°F)
Thermal Sensitivity	<0.04°C at +30°C (86°F) / <40 mK
Focus	Manual and auto
Storage	Internal memory and SD card
Image Modes	Thermal, visible, MSX, picture-in-picture
File Formats	JPEG, MPEG-4
Battery Type	Rechargeable Li-ion
Connectivity	USB 2.0, Wi-Fi, Bluetooth
Image Storage	SD card
Lens Options	14°, 24°, 42°
Resolution	320 × 240 pixels
