Handling the camera
7

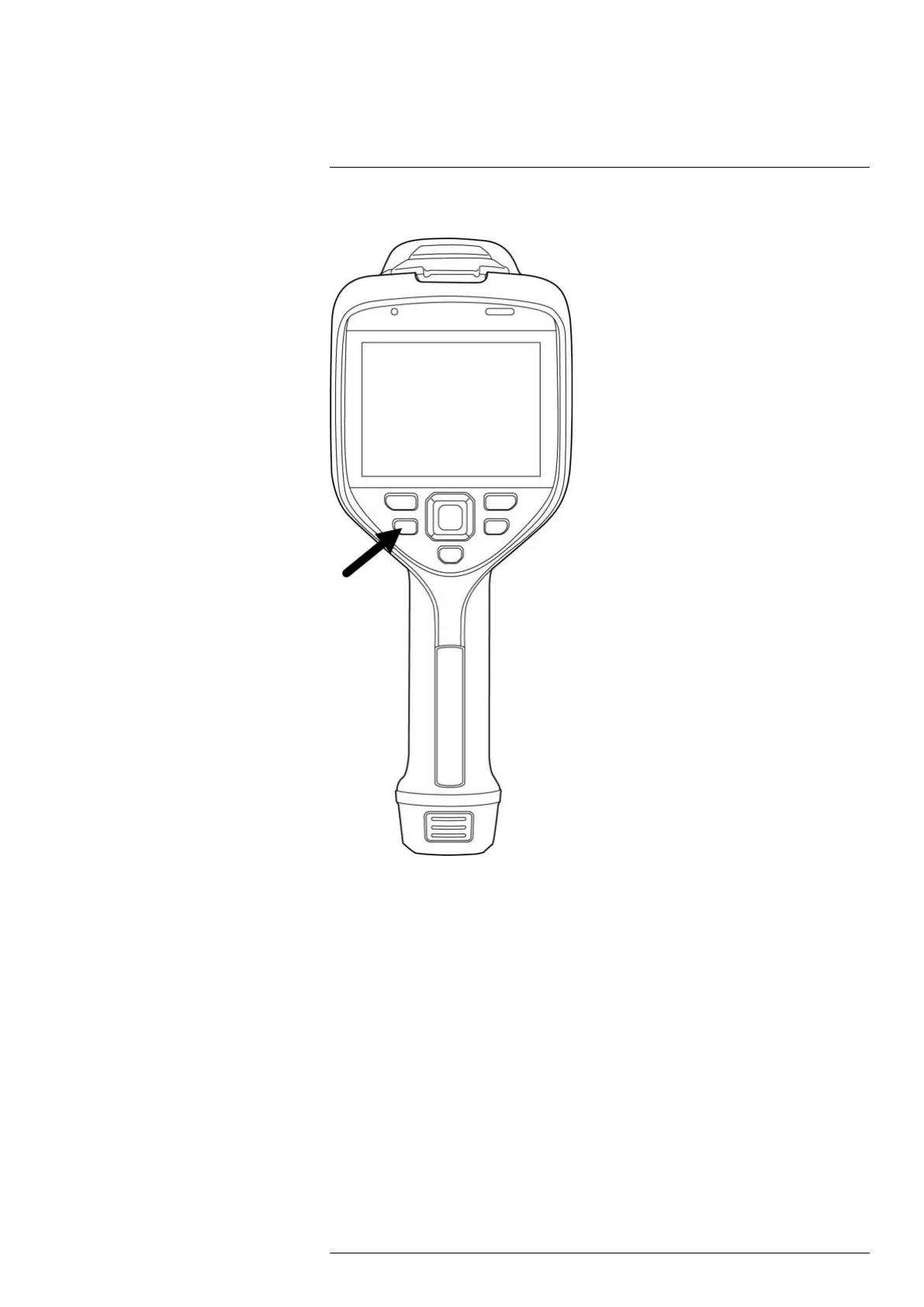

7.9 Programmable button
You can assign different functions to the programmable button. You can, for example,
use the programmable button to easily switch between two settings you use often. You
can also choose to define two different setups for saving and previewing: the ordinary
setup for the trigger (which is defined by the Save options and storage settings, see sec-
tion 23.5 Save options & storage) and another setup for the programmable button.
To assign a function to the programmable button, do the following:
1. Push and hold the programmable button. This displays the Programmable button
menu.
2. Push the navigation pad up/down to select one of the functions. Push the center of
the navigation pad to confirm.
7.9.1 Programmable button options
Available options for the programmable buttons:
No action: This is the default setting. Nothing will happen when you push the button.
#T810587; r. AD/90967/90989; en-US
36

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the FLIR E76 and is the answer not in the manual?

FLIR E76 Specifications

General IconGeneral
Field of View24° × 18°
Display4-inch touchscreen LCD
Wi-FiYes
Accuracy±2 °C (±3.6 °F) or ±2% of reading
Spatial Resolution (IFOV)1.31 mrad
Digital Camera5 MP
Digital Zoom1-4x continuous
Laser PointerYes
Video RecordingYes
Weight1 kg (2.2 lbs)
Operating Temperature Range-15°C to 50°C (5°F to 122°F)
Storage Temperature Range-40°C to 70°C (-40°F to 158°F)
Thermal Sensitivity<0.04°C at +30°C (86°F) / <40 mK
FocusManual and auto
StorageInternal memory and SD card
Image ModesThermal, visible, MSX, picture-in-picture
File FormatsJPEG, MPEG-4
Battery TypeRechargeable Li-ion
ConnectivityUSB 2.0, Wi-Fi, Bluetooth
Image StorageSD card
Lens Options14°, 24°, 42°
Resolution320 × 240 pixels
