FLIR E76 User Manual

Achieving a good image11

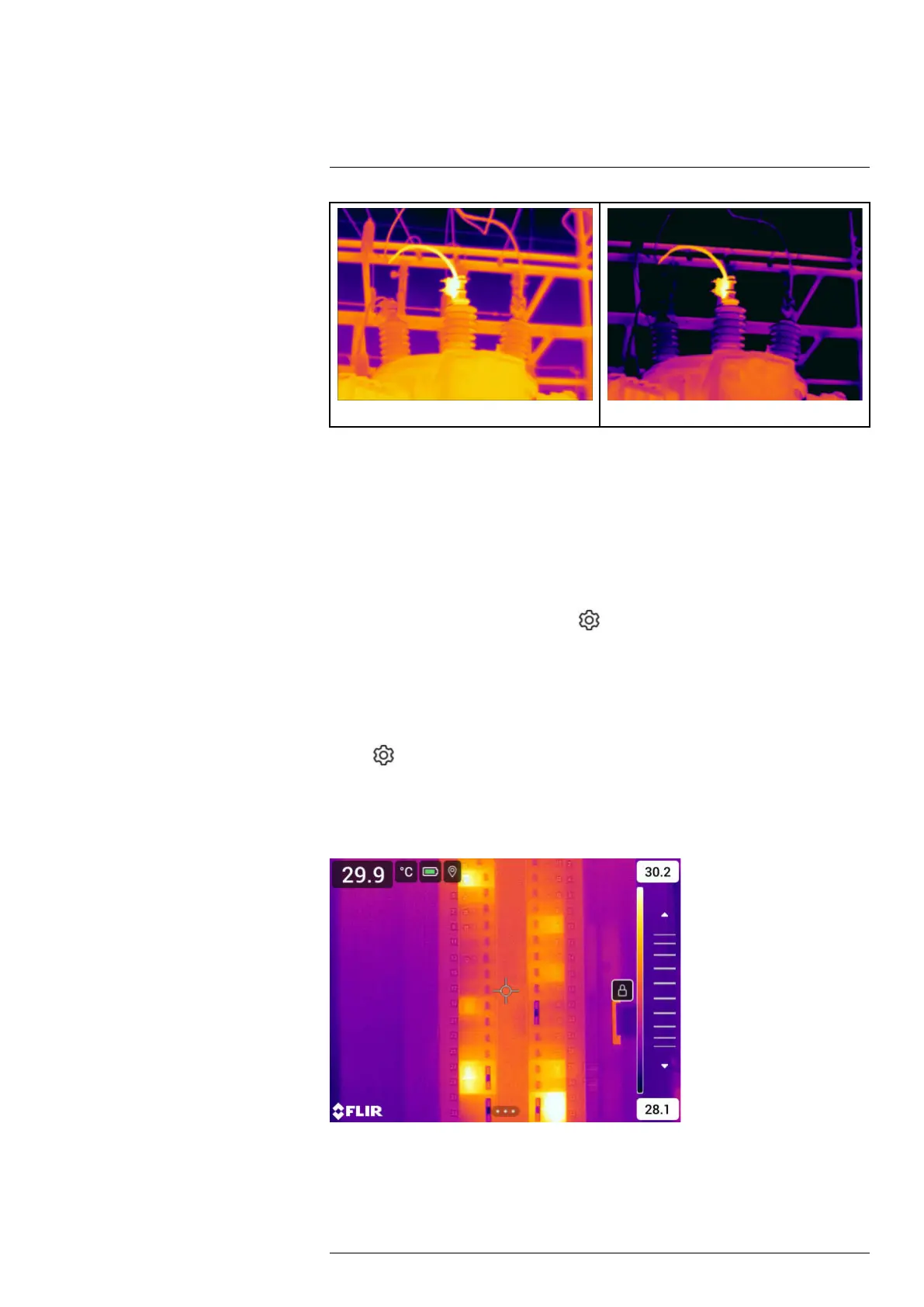

Automatic Manual
11.3.2 Auto adjustment region
When you auto-adjust a thermal image, you adjust it for the best image brightness and
contrast. This means that the color information is distributed over the existing tempera-
tures of the image.
In some situations, the image may contain very hot or very cold areas outside your area
of interest. In such cases you might want to exclude those areas and use the color infor-
mation only for the temperatures in your area of interest. You can do so by selecting a
smaller auto adjustment region.
Select the auto adjustment region under
(Settings) > Device settings > User inter-
face options > Auto adjustment region.
11.3.3 Manual adjustment by touching the screen
11.3.3.1 General
The touch functionality for manual image adjustments is enabled/disabled by a setting.
Select
(Settings) > Device settings > User interface options > Manual adjustment us-
ing touch > On/Off.
When manual image adjustment mode is active, an adjustment wheel is displayed to the
right of the temperature scale. (Applicable when the manual adjustment by touch func-
tionality is enabled.)
Figure 11.1 Manual adjustment mode active
11.3.3.2 Procedure
1. In live mode, push the navigation pad to display the menu system.
#T810587; r. AD/90967/90989; en-US
71

FLIR E76 Specifications

General

Field of View	24° × 18°
Display	4-inch touchscreen LCD
Wi-Fi	Yes
Accuracy	±2 °C (±3.6 °F) or ±2% of reading
Spatial Resolution (IFOV)	1.31 mrad
Digital Camera	5 MP
Digital Zoom	1-4x continuous
Laser Pointer	Yes
Video Recording	Yes
Weight	1 kg (2.2 lbs)
Operating Temperature Range	-15°C to 50°C (5°F to 122°F)
Storage Temperature Range	-40°C to 70°C (-40°F to 158°F)
Thermal Sensitivity	<0.04°C at +30°C (86°F) / <40 mK
Focus	Manual and auto
Storage	Internal memory and SD card
Image Modes	Thermal, visible, MSX, picture-in-picture
File Formats	JPEG, MPEG-4
Battery Type	Rechargeable Li-ion
Connectivity	USB 2.0, Wi-Fi, Bluetooth
Image Storage	SD card
Lens Options	14°, 24°, 42°
Resolution	320 × 240 pixels
