FLIR E76 User Manual

Camera overview
6

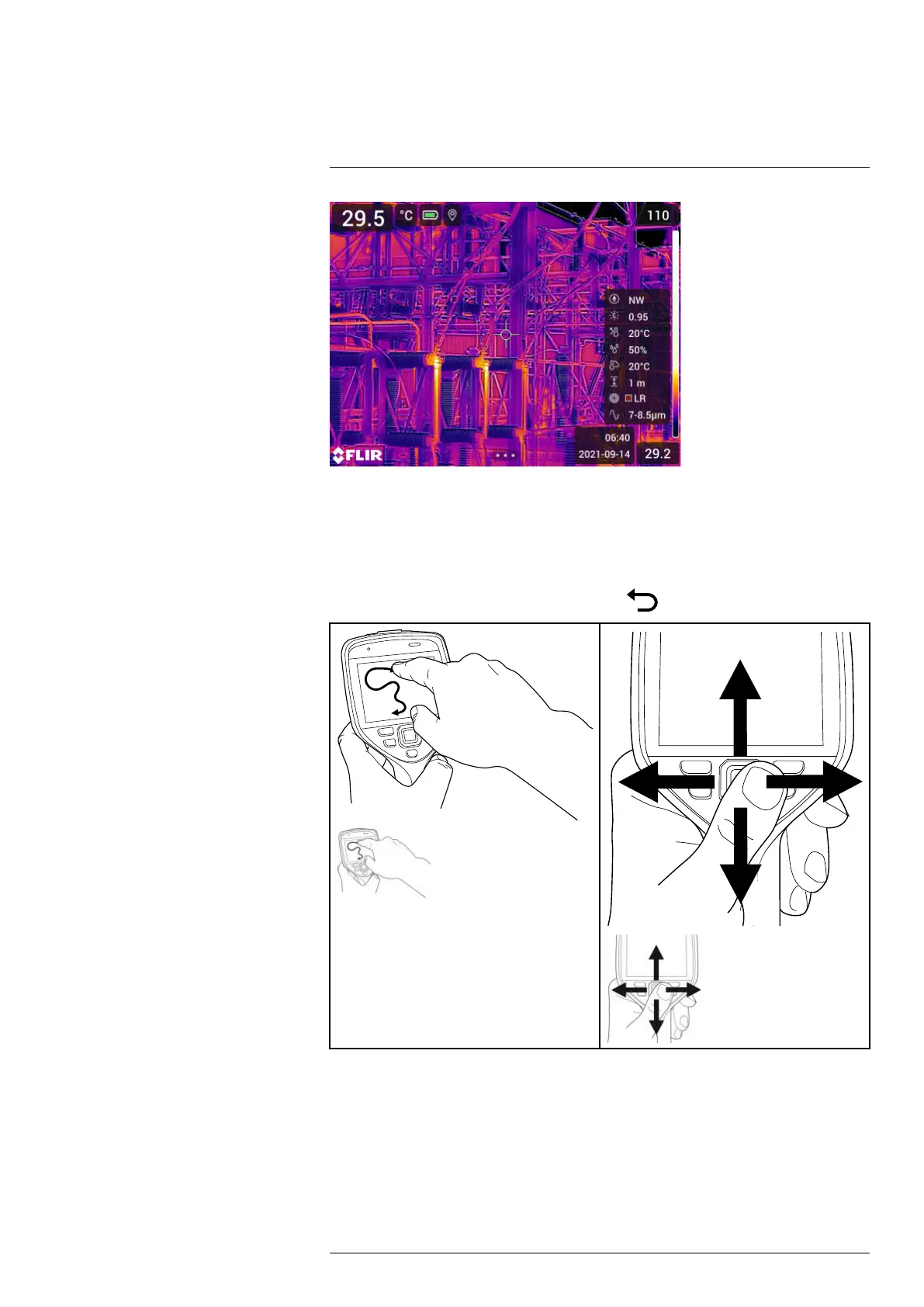

6.5 Navigating the menu system
You can navigate the menu system in two ways:
• Using your finger or a stylus pen specially designed for capacitive touch usage.
• Using the navigation pad and the back button
.
6.5.1 Navigating using the navigation pad
You navigate the menu system by using the navigation pad and the back button:
• To display the menu system, push the center of the navigation pad.
• To navigate in menus, submenus, and dialog boxes, and to change values in dialog
boxes, push the navigation pad up/down or left/right.
• To confirm changes and settings in menus and dialog boxes, push the center of the
navigation pad.
#T810587; r. AD/90967/90989; en-US
20

FLIR E76 Specifications

General

Field of View	24° × 18°
Display	4-inch touchscreen LCD
Wi-Fi	Yes
Accuracy	±2 °C (±3.6 °F) or ±2% of reading
Spatial Resolution (IFOV)	1.31 mrad
Digital Camera	5 MP
Digital Zoom	1-4x continuous
Laser Pointer	Yes
Video Recording	Yes
Weight	1 kg (2.2 lbs)
Operating Temperature Range	-15°C to 50°C (5°F to 122°F)
Storage Temperature Range	-40°C to 70°C (-40°F to 158°F)
Thermal Sensitivity	<0.04°C at +30°C (86°F) / <40 mK
Focus	Manual and auto
Storage	Internal memory and SD card
Image Modes	Thermal, visible, MSX, picture-in-picture
File Formats	JPEG, MPEG-4
Battery Type	Rechargeable Li-ion
Connectivity	USB 2.0, Wi-Fi, Bluetooth
Image Storage	SD card
Lens Options	14°, 24°, 42°
Resolution	320 × 240 pixels
