Safety information
2

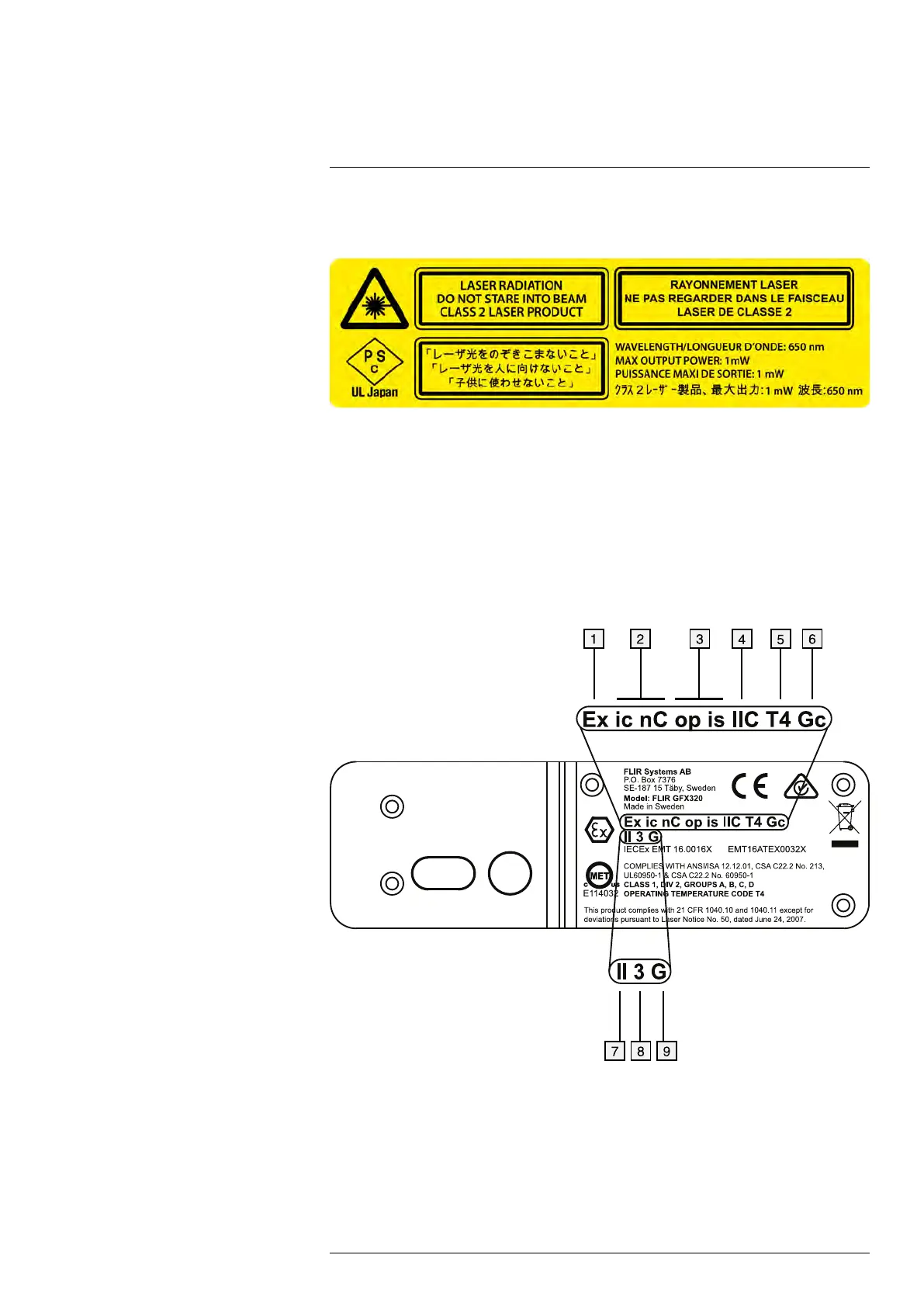

2.2.3 Laser warning label
A laser warning label with the following information is affixed to the camera:
2.2.4 Laser rules and regulations
Wavelength: 635 nm. Maximum output power: 1 mW.
This product complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant
to Laser Notice No. 50, dated June 24, 2007.
2.2.5 Compliance marking
2.2.5.1 Figure
A marking with the following information is laser-etched into the bottom of the camera
housing:
2.2.5.2 Explanation
1. Ex = Explosion protection.
2. Protection Type Codes: ic = intrinsic safe, nC = sealed device.
3. Inherently safe optical device.
4. Gas Group: IIC = acetylene, hydrogen, ethylene, and propane.
5. Temperature Classification Code: T4 = <135 ℃ (<275 ℉).
#T810169; r. AN/42241/42268; en-US
