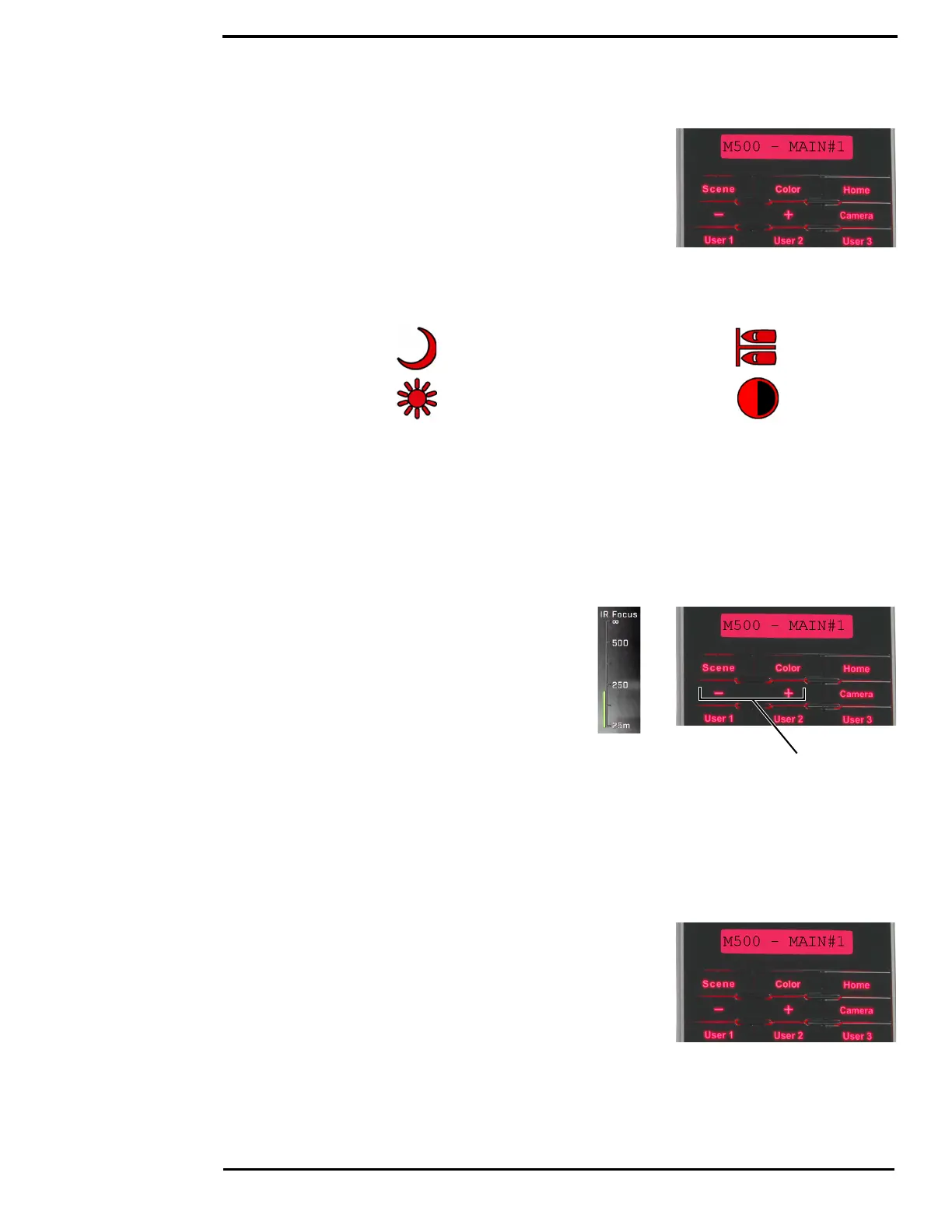

JCU II Buttons
432-0012-01-10 Version 110 18
Scene Button—IR imaging only
The M500 thermal sensor automatically adjusts to changing
conditions providing optimized high-contrast images. The preset
automatic gain control (AGC) settings offer the most balance
and image quality for specific conditions. Experiment with the
different settings to find out which settings work best in different
conditions. The Scene button only effects the IR camera.
Short Press—A short press of the Scene button cycles through
the four preset AGC settings, which change the image gain and level settings. The icon for each
scene preset is shown on the video monitor display.
Color Button—IR Imaging only
Short Press—Pressing the Color button cycles through the preset color palettes of the active IR
camera. See “Color:” on page 24 for these additional options.
Long Press—Press and hold the Color button to invert the thermal camera video polarity (for
example, changing from black-hot to white-hot).
Focus Buttons
The M500 thermal camera can be focused either
manually or automatically. The visible-light camera
is always focused automatically.
The manual focus buttons are effective only when
the IR camera is the Active Camera.
the – button will move the focus nearer
the + button will move the focus farther away
During the manual focus operation, the OSD focus
bar will change accordingly.
Camera Button
Switch the Active Camera shown on the main video output. The buttons on the JCU II are effective
only on the Active Camera, except as noted.
User Buttons
The User buttons are programmable one-touch buttons to
access the most often used functions. Configure the short-press
action of this button from the User Programmable Button menu
entry (see page 29).
Short Press— User 1 – Auto Focus
User 2 – Stabilization on/off
User 3 – Spotlight
Long Press—Press and hold a user button to open the OSD menu to reprogram a function.
Night Harbor
Day Contrast
