Installation
10
427-0200-00-12 Revision 100
This document does not contain any export-controlled information.

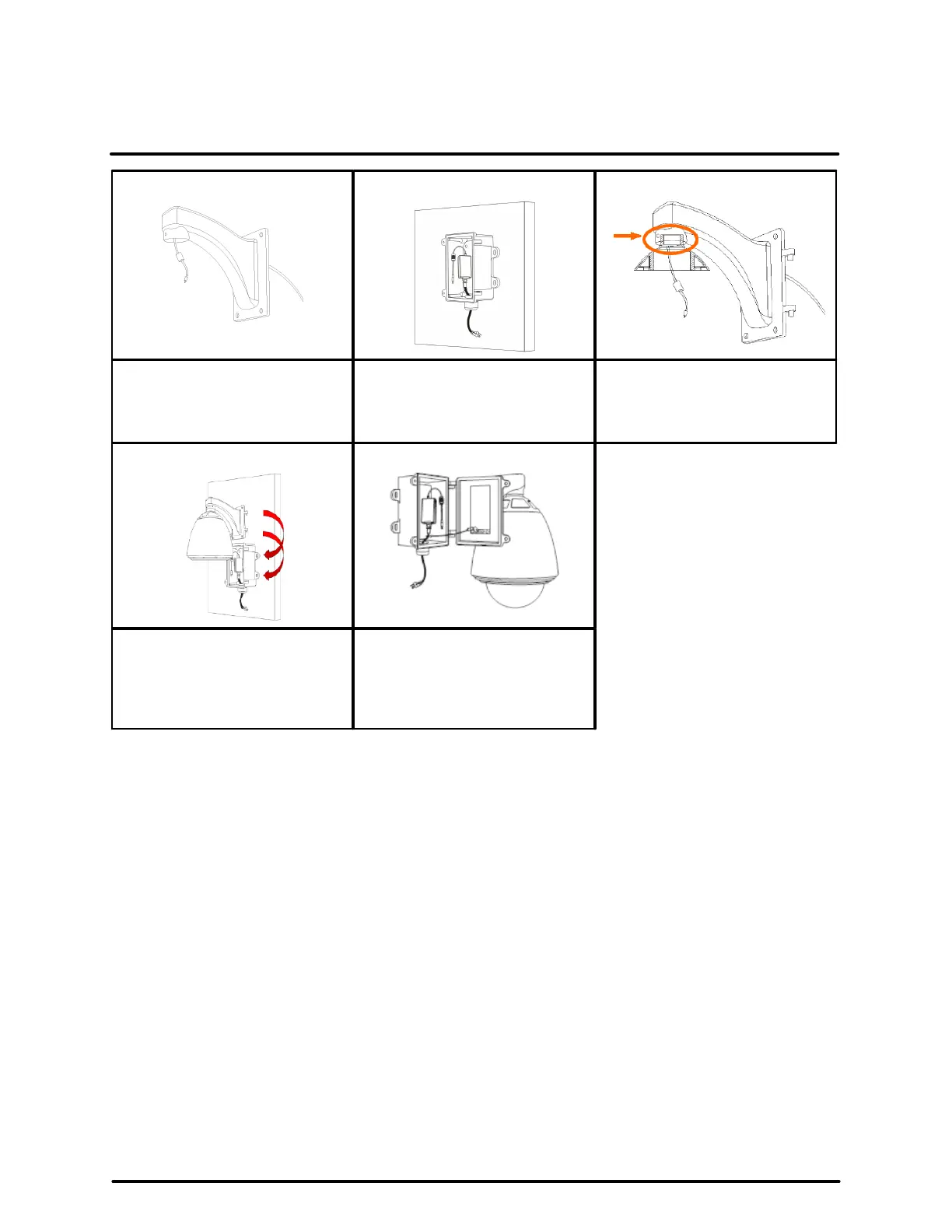

Pull cables through the bracket.
Fix the power box to the wall or to
the column.
Assemble pendant cap.
Use Allen key and a hex head
cap screw to firmly fix the
pendant cap to the arm.
Have the bracket hooked up to
the tenon of the power box.
Buckle up the safety rope, make
the camera connections, tighten
the two hex screws to seal the
box, and then complete
assembly.
Detailed instructions for mounting a camera using the CX-ELBX-G3 wall mount bracket with power
box
1. Cut a cable access hole in the wall.
2. Attach the CX-ELBX-G3 to the wall using the appropriate screws and screw anchors (not provided).
3. Thread the cables through the wall mount and power box.
4. Attach the wall mount to the power box mount using the supplied screws and washers.
5. Thread the cables through the wall mount with the cables coming out of the pendant mount’s outlet. For
outdoor cameras, attach the waterproof gasket to the pendant mount.
6. After threading the cables, block the entry hole with the supplied sponge to prevent insects from
entering. The sponge can be placed in one of two ways.
To Next Page
