Installation
11
427-0200-00-12 Revision 100
This document does not contain any export-controlled information.
7. Thread the cables through the outdoor mount kit and attach the mount kit to the wall mount using the
supplied screws and washers.
8. For outdoor cameras, adjust the waterproof gasket to the joint.
9. Connect the cables to the camera. See Camera Connections.
10.Secure the camera to the outdoor mount kit.
11.Ensure the camera is fixed completely, and that the thread holes on the camera’s fixing plate and the
mount kit are aligned.
12.Screw in the supplied screw and washer.

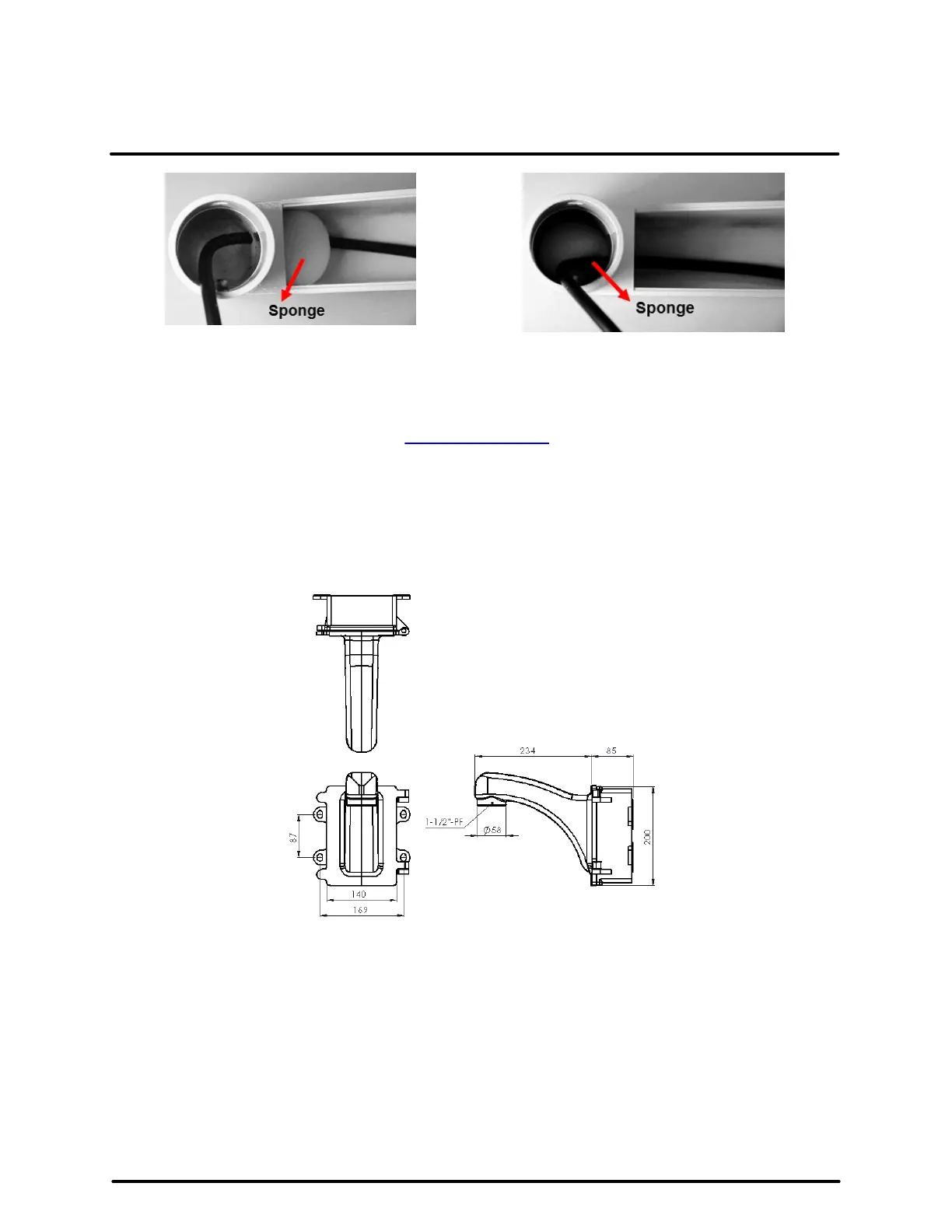

CX-ELBX-G3 dimensions
