Handling
the
camera
13

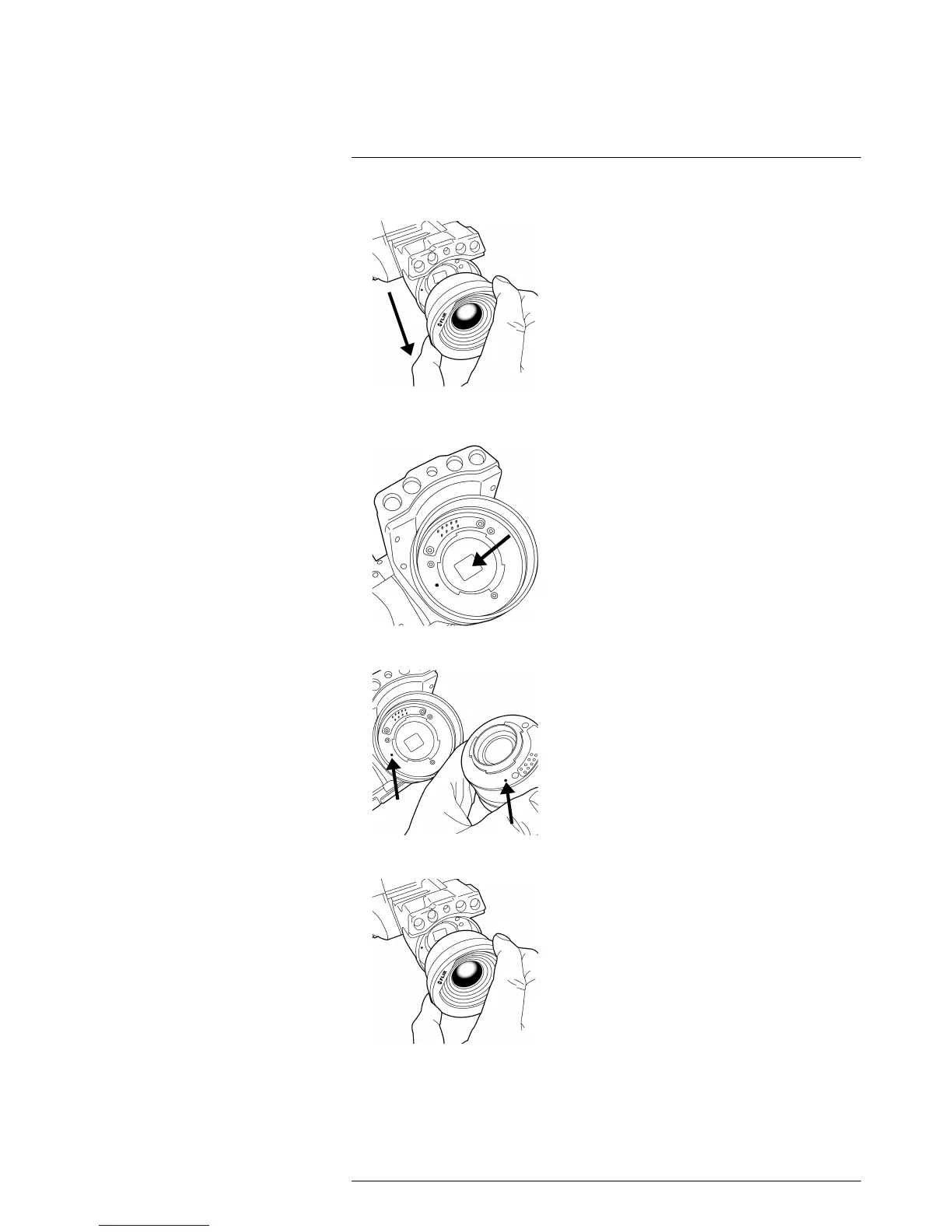

3.
Carefully
pull
out
the
lens
from
the
lens
bayonet
mount.
4.
The
infrared
detector
is
now
fully
exposed.
Do
not
touch
this
surface.
If
you
see
dust
on
the
detector
,
follow
the
instructions
in
27.3
Infrared
detector
,
page
261.
5.
Note
the
index
marks
on
the
lens
bay
onet
mount
and
on
the
lens.
6.
Align
the
lens
correctly
to
the
bay
onet
mount.
#T559880;
r.15724/15724;
en-US
29
42
44
Table of Contents
Default Chapter
7
Table of Contents
7
1 Disclaimers
15
Legal Disclaimer
15
Usage Statistics
15
Changes to Registry
15
Government Regulations
15
Copyright
15
Quality Assurance
15
Patents
15
EULA Terms
15
2 Safety Information
16
3 Notice to User
20
User-To-User Forums
20
Calibration
20
Accuracy
20
Disposal of Electronic Waste
20
Training
20
Documentation Updates
20
Important Note about this Manual
20
4 Customer Help
21
General
21
Submitting a Question
21
Downloads
21
5 Quick Start Guide
22
Procedure
22
6 List of Accessories and Services
23
7 Note about Ergonomics
26
General
26
Figure
26
8 Camera Parts
27
View from the Right
27
Explanation
27
Figure
27
View from the Left
28
Explanation
28
Figure
28
View from the Rear
29
Explanation
29
Figure
29
View from the Bottom
30
Explanation
30
Figure
30
Battery Condition LED Indicator
31
Explanation
31
Figure
31
Power LED Indicator
31
Laser Pointer
32
Figure
32
Laser Rules and Regulations
32
Laser Warning Label
32
9 Screen Elements
33
Figure
33
Explanation
33
10 Navigating the Menu System
34
Figure
34
Explanation
34
11 Pairing Bluetooth Devices
35
General
35
Procedure
35
12 Configuring Wi-Fi
36
General
36
Setting up a Peer-To-Peer Connection (most Common Use)
36
Connecting the Camera to a Wireless Local Area Network (Less Common Use)
36
13 Handling the Camera
37
Charging the Battery
37
Using the Power Supply to Charge the Battery
37
Using the Stand-Alone Battery Charger to Charge the Battery
37
Turning on the Camera
37
Procedure
37
Turning off the Camera
37
Adjusting the Viewfinder's Dioptric Correction
38
Figure
38
Procedure
38
Adjusting the Angle of the Lens
39
Figure
39
Adjusting the Infrared Camera Focus Manually
39
Procedure
39
Autofocusing the Infrared Camera
40
Figure
40
Procedure
40
Continuous Autofocus
40
General
40
Operating the Laser Pointer
41
Figure
41
Procedure
41
Using the Digital Zoom Function
42
Figure
42
Procedure
42
Changing Lenses
42
Calibrating the Compass
44
Procedure
44
Changing the Viewfinder Eyecup
44
14 Working with Images
47
Saving an Image
47
General
47
Image Capacity
47
Naming Convention
47
Procedure
47
Previewing an Image
47
Opening a Saved Image
48
General
48
Procedure
48
Editing a Saved Image
48
Adjusting an Infrared Image
49
General
49
Example 1
49
Example 2
49
Procedure
49
Performing a Non-Uniformity Correction (NUC)
50
What Is a Non-Uniformity Correction
50
When to Perform a Non-Uniformity Correction
50
Procedure
50
Changing the Temperature Range
50
General
50
Hiding Overlay Graphics (Programmable Button)
50
Procedure
51
Changing the Color Palette
51
General
51
Deleting an Image
51
Deleting All Images
52
General
52
Procedure
52
Creating a PDF Report in the Camera
52
Naming Convention
52
15 Working with Image Modes
53
General
53
Image Examples
53
Selecting the Image Mode
54
16 Working with Measurement Tools
55
General
55
Adding/Removing Measurement Tools
55
Working with User Presets
55
Procedure
55
Resizing or Moving a Measurement Tool
56
General
56
Procedure
56
Changing Object Parameters
56
Types of Parameters
56
Recommended Values
57
Procedure
57
Related Topics
58
Displaying Values in the Result Table and Displaying a Graph
58
General
58
Procedure
58
Setting a Measurement Alarm
59
General
59
Types of Alarm
59
Alarm Signals
59
Procedure
59
Creating and Setting up a Difference Calculation
60
General
60
Procedure
60
17 Fetching Data from External FLIR Meters
61
General
61
Supported FLIR Meters
61
Technical Support for External Meters
61
Typical Moisture Measurement and Documentation Procedure
61
Procedure
61
More Information
61
18 Working with Color Alarms and Isotherms
62
Color Alarms
62
General
62
Image Examples
62
Setting up Above, Below, and Interval Alarms
63
Building Isotherms
64
About the Condensation Alarm
64
About the Insulation Alarm
64
Setting up Condensation and Insulation Alarms
64
19 Annotating Images
65
General
65
Adding a Note
65
Procedure
65
Adding a Table
65
Procedure
66
Adding a Voice Annotation
66
General
66
Adding a Sketch
66
Procedure
67
20 Programming the Camera (Time Lapse)
68
General
68
Procedure
68
21 Recording Video Clips
69
General
69
Procedure
69
22 Screening Alarm
70
General
70
Procedure
70
23 Changing Settings
71
General
71
Define User Presets
71
Save Options
71
Programmable Button
71
Reset Options
71
Device Settings
71
Procedure
72
24 Technical Data
73
Online Field-Of-View Calculator
73
Note about Technical Data
73
Flir T640 15
74
Flir T640 25
78
Flir T640 45
82
FLIR T640 15° (Incl. Wi-Fi)
86
FLIR T640 25° (Incl. Wi-Fi)
91
FLIR T640 45° (Incl. Wi-Fi)
96
FLIR T640Bx 15
101
FLIR T640Bx 25
105
FLIR T640Bx 45
109
FLIR T640Bx 15° (Incl. Wi-Fi)
113
FLIR T640Bx 25° (Incl. Wi-Fi)
118
FLIR T640Bx 45° (Incl. Wi-Fi)
123
FLIR T650Sc 15° (Incl. Wi-Fi)
128
FLIR T650Sc 25° (Incl. Wi-Fi)
133
FLIR T650Sc 45° (Incl. Wi-Fi)
138
Flir T620 15
143
Flir T620 25
147
Flir T620 45
151
FLIR T620 15° (Incl. Wi-Fi)
155
FLIR T620 25° (Incl. Wi-Fi)
159
FLIR T620 45° (Incl. Wi-Fi)
163
FLIR T620Bx 15
167
FLIR T620Bx 25
171
FLIR T620Bx 45
175
FLIR T620Bx 15° (Incl. Wi-Fi)
179
FLIR T620Bx 25° (Incl. Wi-Fi)
184
FLIR T620Bx 45° (Incl. Wi-Fi)
189
Flir T630 15
194
Flir T630 25
198
Flir T630 45
202
FLIR T630 15° (Incl. Wi-Fi)
206
FLIR T630 25° (Incl. Wi-Fi)
211
FLIR T630 45° (Incl. Wi-Fi)
216
Flir T610 15
221
Flir T610 25
225
Flir T610 45
229
FLIR T610 15° (Incl. Wi-Fi)
233
FLIR T610 25° (Incl. Wi-Fi)
237
FLIR T610 45° (Incl. Wi-Fi)
241
FLIR T600 15° (Incl. Wi-Fi)
245
FLIR T600 25° (Incl. Wi-Fi)
249
FLIR T600 45° (Incl. Wi-Fi)
253
FLIR T600Bx 25° (Incl. Wi-Fi)
257
FLIR T600Bx 45° (Incl. Wi-Fi)
261
25 Declaration of Conformity
265
26 Mechanical Drawings
266
Camera Dimensions, Front View (1)
266
Figure
266
Camera Dimensions, Front View (2)
266
Camera Dimensions, Side View (1)
267
Figure
267
Camera Dimensions, Side View (2)
267
Camera Dimensions, 41.3 MM/15° Lens, Side View
268
Figure
268
Camera Dimensions, 24.6 MM/25° Lens, Side View
268
Camera Dimensions, 13.1 MM/45° Lens, Side View
269
Figure
269
Infrared Lens (41.3 MM/15°)
269
Infrared Lens (24.6 MM/25°)
270
Figure
270
Infrared Lens (13.1 MM/45°)
270
Battery (1)
271
Figure
271
Battery (2)
271
Battery Charger (1)
272
Figure
272
Battery Charger (2)
272
Battery Charger (3)
273
Figure
273
27 Cleaning the Camera
274
Camera Housing, Cables, and Other Items
274
Liquids
274
Equipment
274
Procedure
274
Infrared Lens
274
Infrared Detector
275
General
275
Procedure
275
28 Application Examples
276
Moisture & Water Damage
276
General
276
Figure
276
Faulty Contact in Socket
276
Oxidized Socket
277
General
277
Figure
277
Insulation Deficiencies
278
General
278
Figure
278
Draft
279
General
279
Figure
279
29 About FLIR Systems
280
More than Just an Infrared Camera
281
Sharing Our Knowledge
281
Supporting Our Customers
281
A few Images from Our Facilities
282
30 Glossary
283
31 Thermographic Measurement Techniques
286
Introduction
286
Emissivity
286
Finding the Emissivity of a Sample
286
Reflected Apparent Temperature
289
Distance
289
Relative Humidity
289
Other Parameters
289
32 History of Infrared Technology
291
33 Theory of Thermography
294
Introduction
294
The Electromagnetic Spectrum
294
Blackbody Radiation
294
Planck's Law
295
Wien's Displacement Law
296
Stefan-Boltzmann's Law
297
Non-Blackbody Emitters
298
Infrared Semi-Transparent Materials
300
34 The Measurement Formula
301
35 Emissivity Tables
305
References
305
Tables
305
