57
Technical data

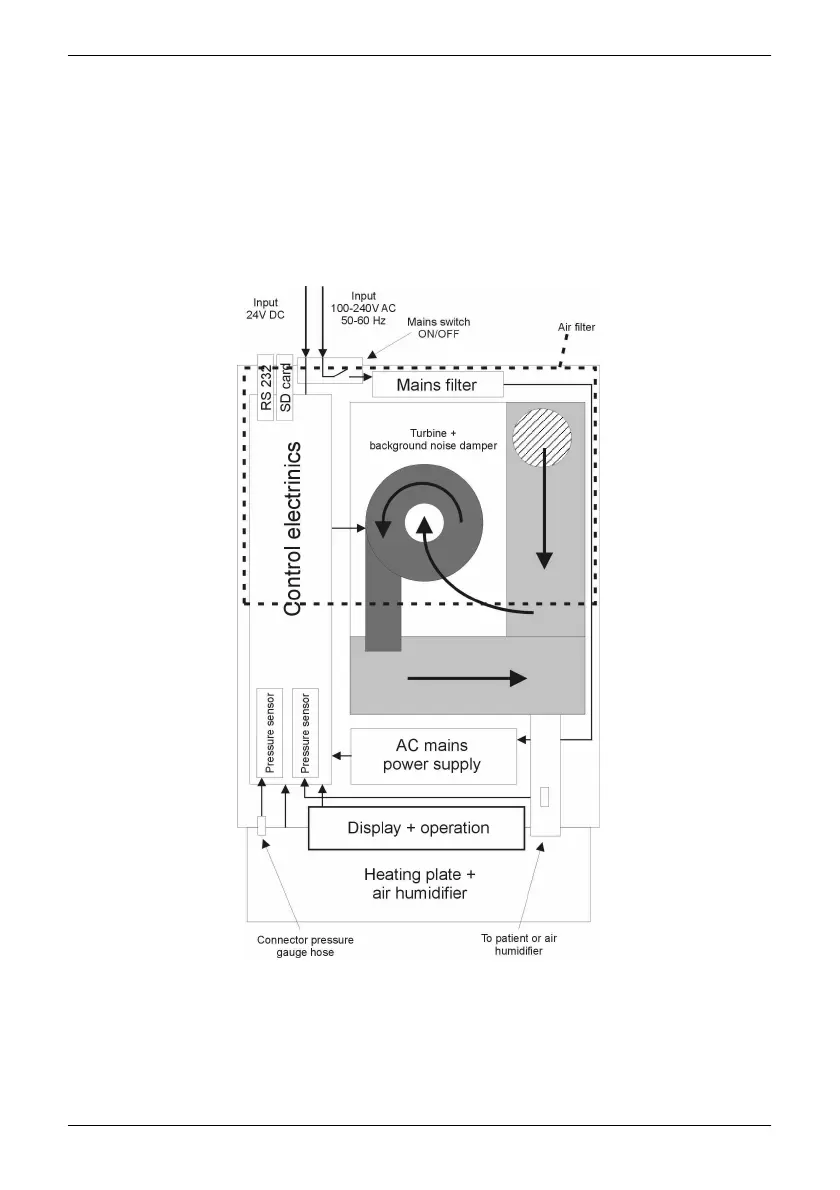

20.3 Function diagram
The FLO Vigaro is equipped with a total of 2 pressure sensors, which ensure
control together with the turbine and CPU. They each use a display of 2 x 16
characters. This shows for example the current actual pressure during
operation. The display is accurate to one representation unit. The device also
has an RS232 interface and a USB interface. These ports are only required for
servicing and changing parameters. A 24 V DC power supply can also be used
as an alternative to mains AC power (100-240 V).
